Sony ICF-7700 - REAR PANEL CONNECTIONS

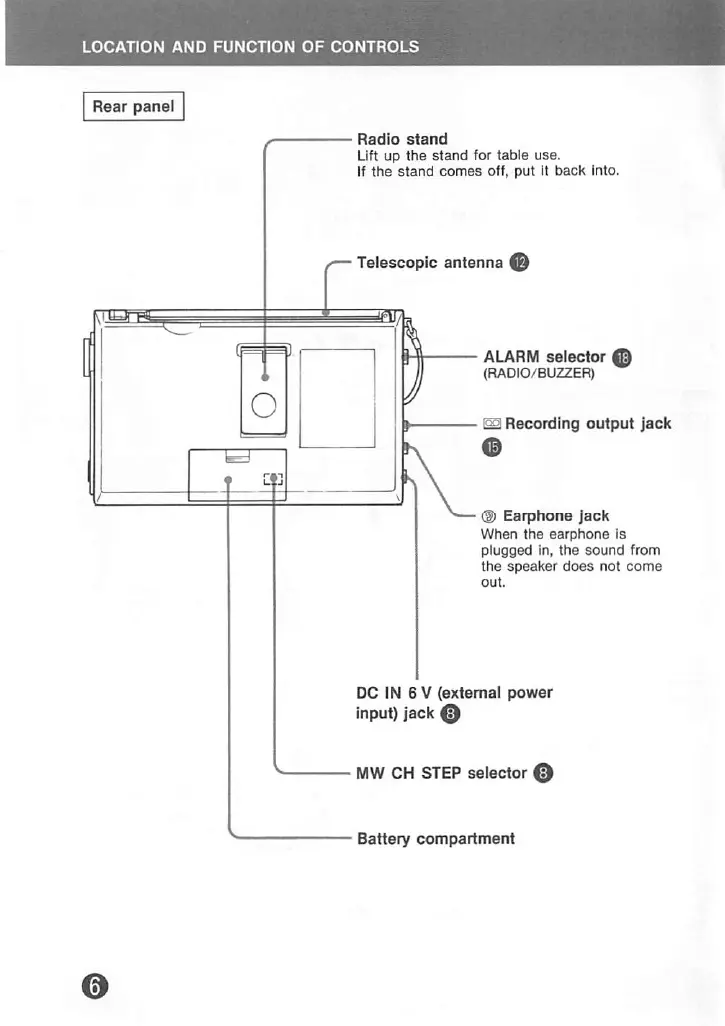

LOCATION AND FUNCTION OF CONTROLS
Rear panel
Radio stand
Lift up the stand for table use.
If the stand comes off, put It back into.
For RADIO alarm
Tune in the desired station following
the steps 2-5 on page 12.
3 n* t C
C U> I J
Telescopic antenna
ALARM selector
ALARM selector ^
(RADIO/BUZZER)
I Recording output jack
(B Earphone jack
When the earphone Is
plugged In, the sound from
the speaker does not come
out.
DC IN 6 V (external power
input) jack o
MW CH STEP selector 0
For BUZZER alarm
The buzzer sound will come on at the
preset time.
ALARM selector
D n* I c
C U' I J
The BUZZER ALARM
indicator appears.
To stop the RADIO or BUZZER alarm
• Press the ON/OFF button.—The alarm sound will come on again at the
same time the next day.
• Press the STANDBY button.—The alarm setting is released.
• Set the MAIN POWER switch to OFF.—The power is turned off.
• Press the SLEEP button in BUZZER alarm mode.—The BUZZER alarm will t)e shut off
and the radio sound comes out for the SLEEP function.
(For RADIO alarm, the SLEEP function starts automatically.)
Note: If you forget pressing the STANDBY button, the alarm sound will not come out.
Battery compartment
When the alarm time Is reached while
listening to the radio
For BUZZER alarm, the buzzer sound
comes on. When you press the
ON/OFF button twice, the radio sound
comes on again.
Set the alarm time in order not to miss
the reception time of your desired radio
program. It is useful especially for
receiving the SW stations since they
are not broadcasted ail day long.
