Sony KDL-40V3000 User Manual

- 14 -
WAX3F
RM-ED009
Service adjustments to this model can be performed using the
supplied remote Commander RM-ED009.
3. The following menu will then appear on the screen.
4. Move to the relevant command using the up or down arrow
buttons on the remote commander.
5. Press the right arrow button to enter into the required menu item.
6. Press the ‘Menu’ button on the remote commander to quit the
Service Mode when all adjustments have been completed.
Note :
• After carrying out the service adjustments, to prevent the
customer accessing the ‘Service Menu’ switch the TV set OFF
and then ON.
1. Turn on the power to the TV set and enter into the stand-by
mode.
2. Press the following sequence of buttons on the Remote
Commander.

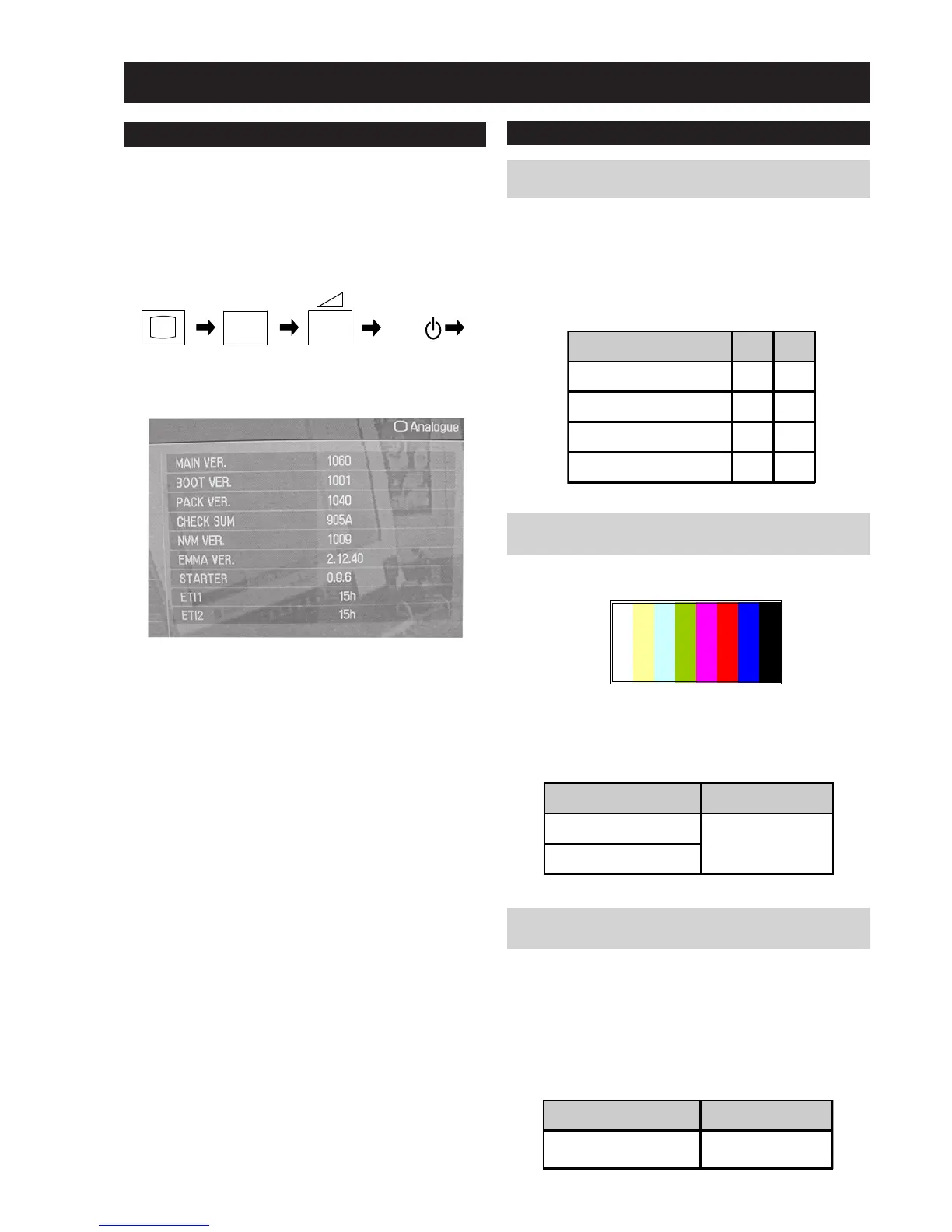

SECTION 3 SET-UP ADJUSTMENTS
3-1. How to enter Service Mode
i+
5
+
(ON SCREEN (DIGIT 5) (VOLUME +) (TV)
DISPLAY)
I/
TV
3-2-2. Y signal calibration1 adjustment for
terrestrial analog.
1. Input PAL colour bar 75%Y, 75%C via terrestrial input.
2. Send ECS_ADJUST_TCD3_CONT_RF command.
3. Read the value of S-REG_APL_LUMA via ECS. Confirming that
the value is within spec of the table below.
3-2-1.
Set up of AD calibration1 adjustment for
terrestrial analog.
The following adjustments are done via ECS.
1. Send ECS_ADJUST_LEVEL_SETTING_INIT command.
2. Set: SREG_NR = 3 (High), HREG_P4_CVD2_85[2:0] = 0 and
ADJ_COLOR_PAL = 5.
3. Set the following registration items.
3-2. Signal Level Adjustment
㧜

㧞㧟㧠㧡㧢㧣
6+6.'
5KIPCNNGXGNCFLWUVOGPV
65/
AD-ADJUST RF SPEC SPEC
Reference register name
SREG_TARGET_Y_RF±2
S-REG_APL_LUMA
3-2-3. C signal calibration1 adjustment for
terrestrial analog.
1. Send ECS_ADJUST_TCD3_HUE_RF command.
2. Read SREG_AVE_VAL_B_AREA0 via ECS.
(READ_AREA = 0).
3. Read SREG_AVE_VAL_B_AREA6 via ECS.
(READ_AREA = 6).
4. Confirm that 8 bits of MSB of item number 2) and 3) are within
spec of the table below.
Reference Item Spec.
SREG_AVE_VAL_B_AREA*
difference
±2
Screen Size 40" 46"
SREG_TARGET_Y_RF 165 165
SREG_TCD3_CONT_PAL_RF 128 128
SREG_TCD3_SAT_PAL_RF 128 128
SREG_TCD3_HUE_PAL_RF 128 128

Sony KDL-40V3000 Specifications

General

Audio system	B/G, D/K, I, L, NICAM
RMS rated power	20 W
Sound output mode	3
Noise reduction	Yes
Comb filter	Digital
Response time	8 ms
Display diagonal	40 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	16000:1
Contrast ratio (typical)	1800:1
Tuner type	Analog & digital
Supported TV bands	CATV, UHF, VHF
Analog signal format system	PAL, SECAM
AV input	RCA
SCART ports quantity	2
Digital audio optical out	1
Picture enhancement	BRAVIA ENGINE
Headphone connectivity	3.5 mm
Cables included	AC
Remote control type	RM-ED009
Product color	Black
Power consumption (standby)	0.3 W
Power consumption (typical)	169 W

Weight and Dimensions

Depth (with stand)	265 mm
Width (with stand)	992 mm
Height (with stand)	688 mm
Weight (with stand)	24000 g
Depth (without stand)	122 mm
Height (without stand)	643 mm
Weight (without stand)	20000 g
