SECTION 5
EXPLODED VIEWS
NOTE :
Non-serviceable items with no part number and no
description are not stocked because they are not
required for routine service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

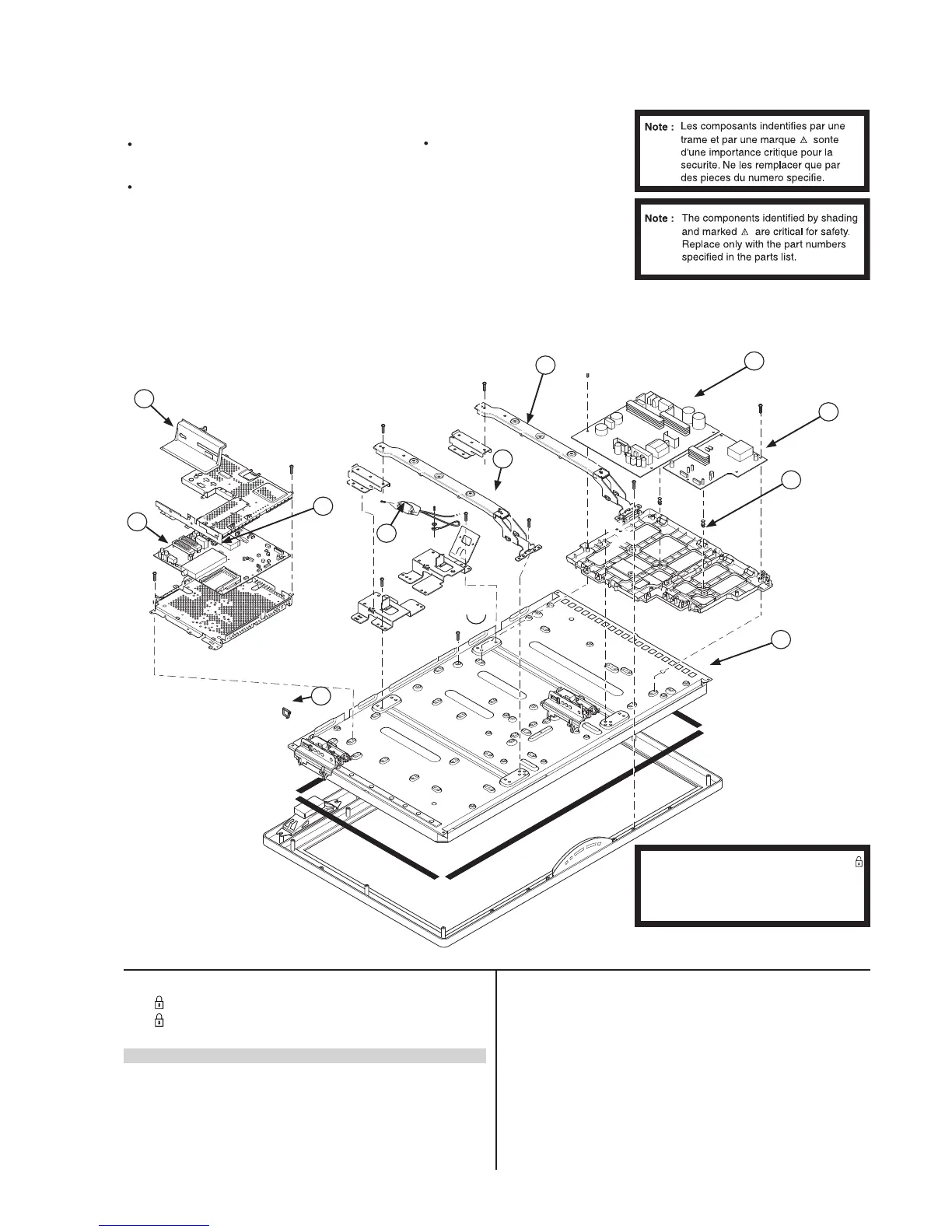

5-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 87 -
8 *A-1436-085-A DF1 BOARD, COMPLETE 40 inches
*A-1314-490-A DF2 BOARD, COMPLETE 46 inches
9 *A-1268-619-A G3 BOARD, COMPLETE
10 *X-2177-847-1 ARM R ASSY 40 40 inches
*X-2177-849-1 ARM R ASSY 46 46 inches
11 *X-2177-846-1 ARM L ASSY 40 40 inches
*X-2177-848-1 ARM L ASSY 46 46 inches
1
3
6
8
10
11
4
5
7
9
Note : The components identified by mark
contain confidential information.
Strictly follow the instructions when
ever the components are repaired
and/or replaced.
b
a
a
a
c
c
a 2-580-606-01 SCREW, +PSW M5X8
b 2-580-600-01 SCREW, +PSW M4X8
c 2-674-965-41 SCREW, +PSW 3SG
d 3-252-830-01 SCREW, +PWHTP B3
d
a
a
a
1 X-2178-328-1 SIDE, TERMINAL (AE) ASSY
2 *A-1443-030-A BE1F BOARD, COMPLETE 40 inches
*A-1443-166-A BE1F BOARD, COMPLETE 46 inches
3 8-597-613-01 TUNER UNIT DIGITAL BTD-HF401Z
4 £ 1-821-584-11 INLET, AC (WITH NOISE FILTER)
5 2-650-770-11 SLIDE, CLAMP VARIOUS POSITIONS
6 1-802-580-11 LCD PANEL (40INCH FHD TFT) 40 inches
1-802-579-11 LCD PANEL (46INCH FHD TFT) 46 inches
7 *X-2178-424-1 BRACKET, G3 ASSY
