- 7 -
WAX3F
RM-ED009
WAX3F SELF DIAGNOSTIC SOFTWARE
The identification of errors within the WAX3F chassis is triggered in one of two ways :- 1: Busy or 2: Device failure to respond to IIC. In the
event of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with a continuous
flashing LED) and then communicate with each device in turn to establish if a device is faulty. If a device is found to be faulty the relevant
device number will be displayed through the LED (Series of flashes which must be counted).
LED Error Code
Monitoring Items Number of Flashes of Red LED
Main Power Supply Voltage Error 2
DC_ALERT1 3
DC_ALERT2 4
DC_ALERT3 5
Backlight Error 6
Internal Temperature Error 7
Audio Error 8
Fan Error (Not Used) 9
Digital FE Error 10
Trident Error 11
HFR Error (Not Used) 12
Balancer Error 13
T-CON Error 14
0.3
0.3
2.0
2.0

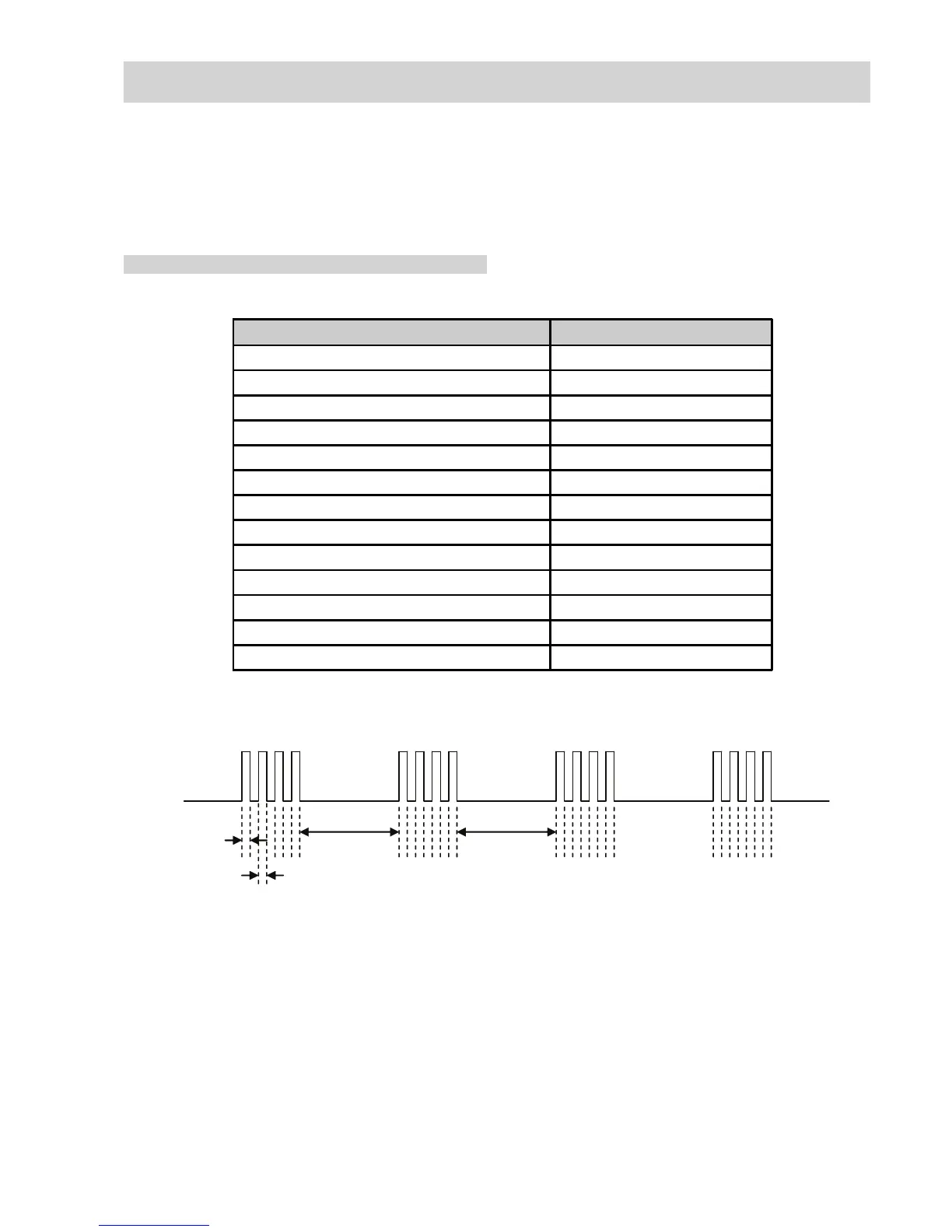

The figure above illustrates the LED display of DC_ALERT2.
Flashing is repeated in cycles of 0.3sec for the specified times, and, after the 2sec off period, the flashing is again repeatedfor the same time
period. Note that the 2sec off period is fixed regardless of the error.
