Sony KDL-40V3000 User Manual

- 20 -
WAX3F
RM-ED009

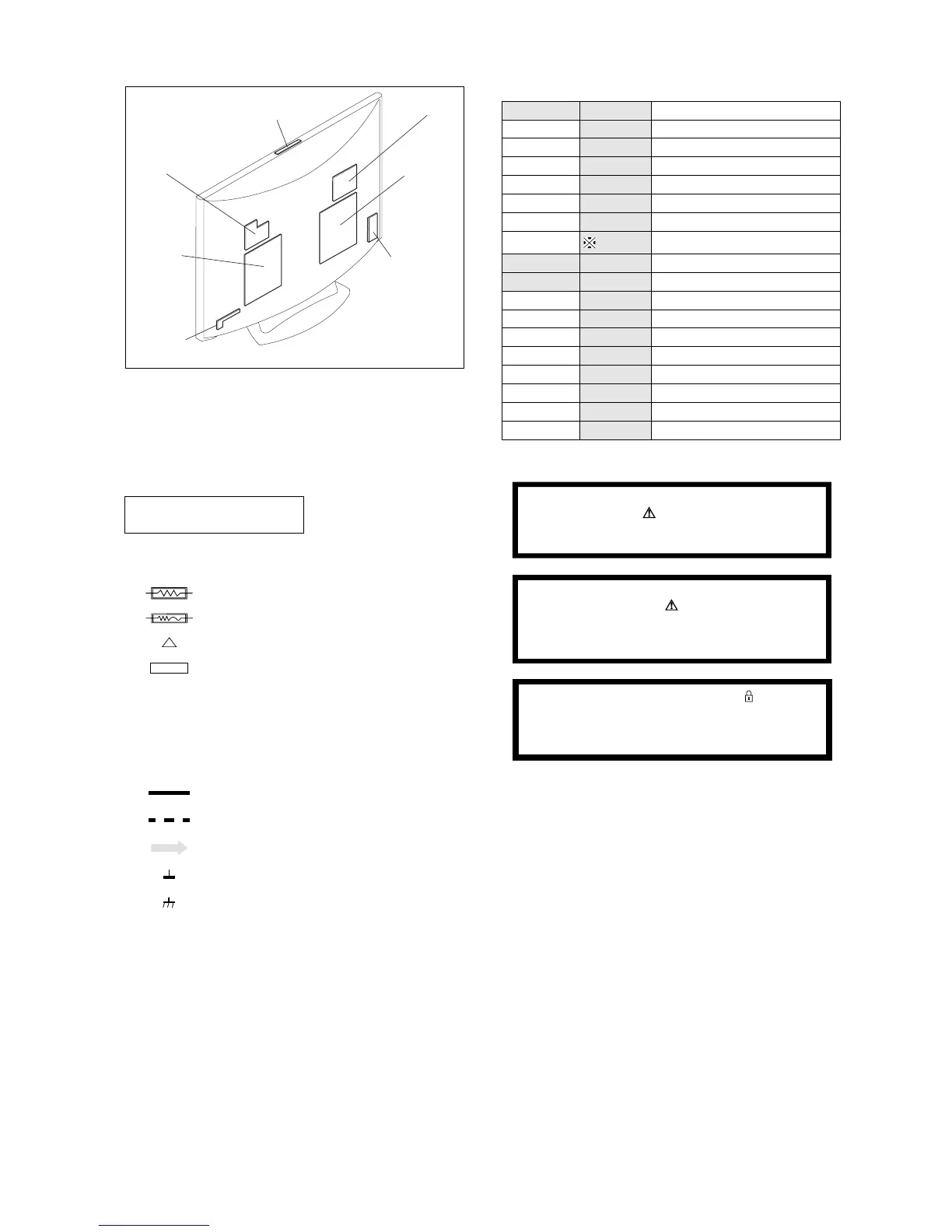

5-2. CIRCUIT BOARD LOCATION
5-3. SCHEMATIC DIAGRAMS AND
PRINTED WIRING BOARDS
Note :
• All capacitors are in µF unless otherwise noted.
• pF : µµF 50WV or less are not indicated except for
electrolytic types.
• Indication of resistance, which does not have one for
rating electrical power, is as follows.
Pitch : 5mm
Electrical power rating : 1/4W
• Chip resistors are 1/10W
• All resistors are in ohms.
k = 1000 ohms, M = 1000,000 ohms
• : nonflammable resistor.
• : fusible resistor.
• : internal component.
• : panel designation or adjustment for repair.
• All variable and adjustable resistors have
characteristic curve B, unless otherwise noted.
• All voltages are in Volts.
• Readings are taken with a 10Mohm digital mutimeter.
• Readings are taken with a color bar input signal.
• Voltage variations may be noted due to normal production
tolerences.
•: B + bus.
• : B - bus.
• : RF signal path.
• : earth - ground.
• : earth - chassis.
Reference Information
RESISTOR RN
: METAL FILM
RC
: SOLID
FPRD
: NON FLAMMABLE CARBON
FUSE
: NON FLAMMABLE FUSIBLE
RS
: NON FLAMMABLE METAL OXIDE
RB
: NON FLAMMABLE CEMENT
RW
: NON FLAMMABLE WIREWOUND
: ADJUSTMENT RESISTOR
COIL LF-8L
: MICRO INDUCTOR
CAPACITOR TA
: TANTALUM
PS
: STYROL
PP
: POLYPROPYLENE
PT
: MYLAR
MPS
: METALIZED POLYESTER
MPP
: METALIZED POLYPROPYLENE
ALB
: BIPOLAR
ALT
: HIGH TEMPERATURE
ALR
: HIGH RIPPLE
Les composants identifiés par une trame et
par une marque sont d'une importance
critique pour la sécurité. Ne les remplacer
que par des pièces de numéro spécifié.
specified.
Note :
The components identified by shading
and marked are critical for safety.
Replace only with the part numbers
specified in the parts list.
Note :
CVM Board
A Board
S1 Board
VM
C
H
D1
A
J
A2
N
D
A1
D2
C
A
4-2. CIRCUIT BOARD LOCATION
4-3. SCHEMATIC DIAGRAMS AND
PRINTED WIRING BOARDS
Note : The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Note: Schematic diagrams are for reference only. Please refer to the electrical parts list for
the correct value and part number of components.
H3
H1
G3
D3 (46 inches)
BE1F
U2
DF1 (40 inches)
DF2 (46 inches)

Sony KDL-40V3000 Specifications

General

Audio system	B/G, D/K, I, L, NICAM
RMS rated power	20 W
Sound output mode	3
Noise reduction	Yes
Comb filter	Digital
Response time	8 ms
Display diagonal	40 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	16000:1
Contrast ratio (typical)	1800:1
Tuner type	Analog & digital
Supported TV bands	CATV, UHF, VHF
Analog signal format system	PAL, SECAM
AV input	RCA
SCART ports quantity	2
Digital audio optical out	1
Picture enhancement	BRAVIA ENGINE
Headphone connectivity	3.5 mm
Cables included	AC
Remote control type	RM-ED009
Product color	Black
Power consumption (standby)	0.3 W
Power consumption (typical)	169 W

Weight and Dimensions

Depth (with stand)	265 mm
Width (with stand)	992 mm
Height (with stand)	688 mm
Weight (with stand)	24000 g
Depth (without stand)	122 mm
Height (without stand)	643 mm
Weight (without stand)	20000 g
