Sony KDL-40V3000 User Manual

- 6 -
WAX3F
RM-ED009

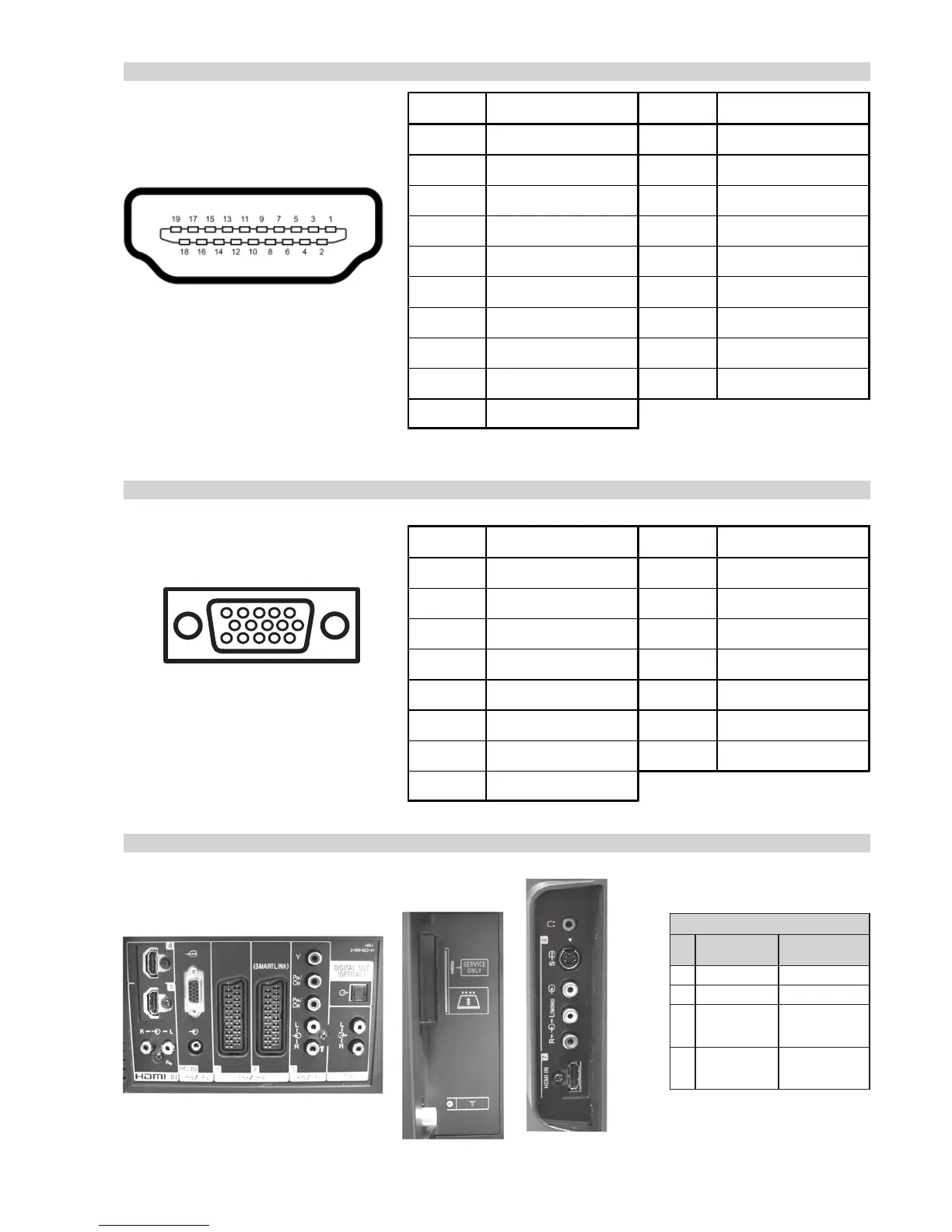

HDMI Connector
Rear Connection Panel Side Connection Panel
noitarugifnocniptekcosoediVS
niP
oN
langiS leveLlangiS
1dnuorG-
2dnuorG-
3tupni)langisS(Y,mho57Bd3-/+V1
V3.0.cnySevitisop
Bd01+3-
4tupni)langisS(CBd3-/+V3.0
evitisop,mho57
.cnyS
S-Video
socket
15 Pin D Sub Connector (PC)
1
Pin No Signal Assignment Pin No Signal Assignment
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14 Reserved (N.C. on device)
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 Shield 18 +5V Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
Pin No Signal Assignment Pin No Signal Assignment
1 Red Out 9 +5V DC
2 Green Out 10 Sync Return (Ground)
3 Blue Out 11 Monitor ID0 in Display
4 Unused 12 DCC Serial Data
5 Ground 13 Horizontal Sync
6 Red Return 14 Vertical Sync
7 Green Return (Ground) 15 DCC Serial Clock
8 Blue Return (Ground)

Sony KDL-40V3000 Specifications

General

Audio system	B/G, D/K, I, L, NICAM
RMS rated power	20 W
Sound output mode	3
Noise reduction	Yes
Comb filter	Digital
Response time	8 ms
Display diagonal	40 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	16000:1
Contrast ratio (typical)	1800:1
Tuner type	Analog & digital
Supported TV bands	CATV, UHF, VHF
Analog signal format system	PAL, SECAM
AV input	RCA
SCART ports quantity	2
Digital audio optical out	1
Picture enhancement	BRAVIA ENGINE
Headphone connectivity	3.5 mm
Cables included	AC
Remote control type	RM-ED009
Product color	Black
Power consumption (standby)	0.3 W
Power consumption (typical)	169 W

Weight and Dimensions

Depth (with stand)	265 mm
Width (with stand)	992 mm
Height (with stand)	688 mm
Weight (with stand)	24000 g
Depth (without stand)	122 mm
Height (without stand)	643 mm
Weight (without stand)	20000 g
