KLV-20/32/37/40S400A (CH) 1-15

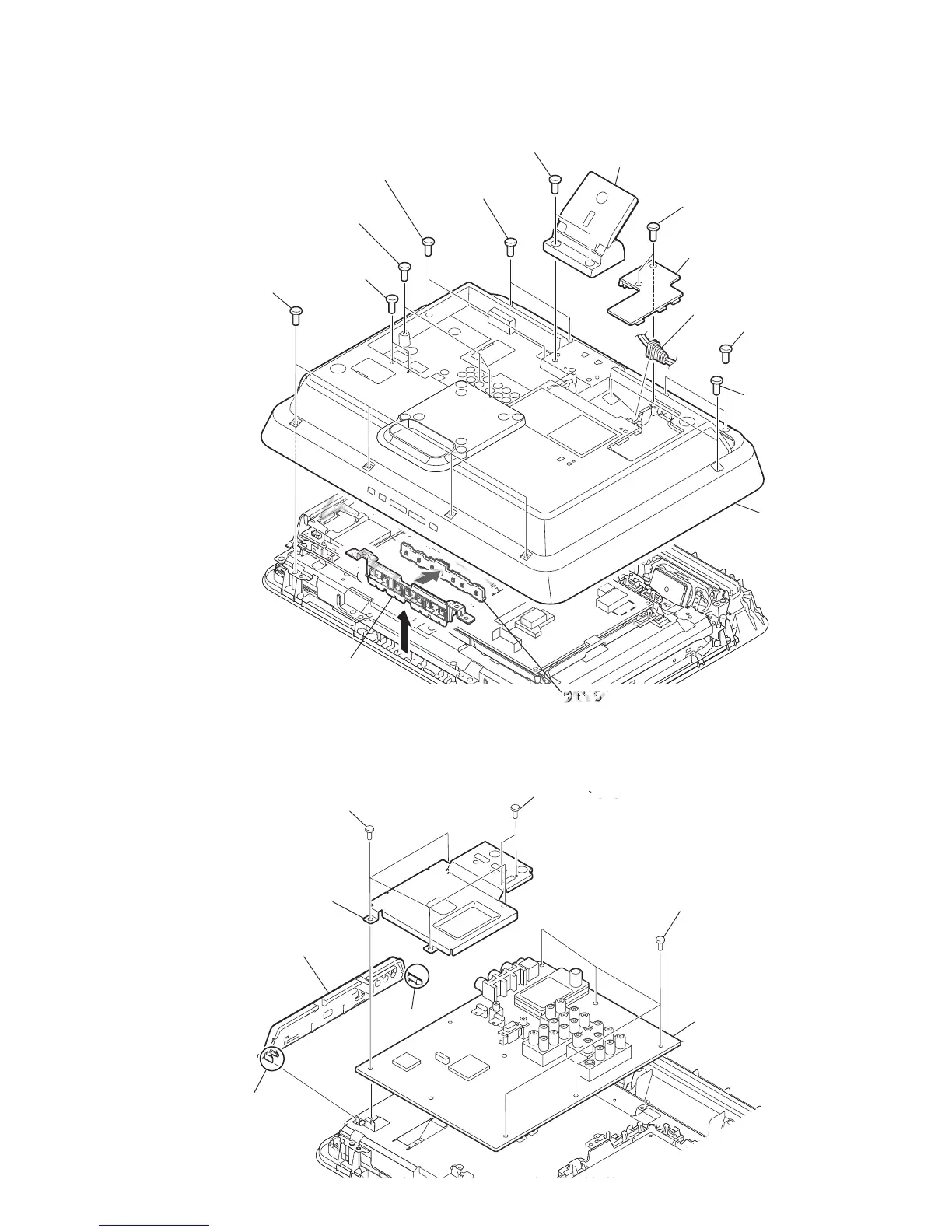

1-4. KLV-20S400A
1-4-1. REAR COVER, STAND ASSY AND H1S BOARD REMOVAL
qa H1S board
4 AC cover
2 Stand assy
7 Two screws
(+BVTP2 4X20 (S))
8 Two screws
(+BVTP2 4X20 (S))
6 Three screws
(+BV 3X12)
7 Two screws
(+PSW M3X5)
6 Two screws
(+BV 3X12)
3 Two screws
(+BV 3X12)
1 Two screws
(+PSW M4X12)
6 Two screws
(+BV 3X12)
5 Power cord
0 Button bracket
8 Four screws
(+BVTP2 4X20 (S))
9 Rear cover
1-4-2. BG1 BOARD REMOVAL
1 Side jack bracket
4 Shield case
Claw
Claw
2 Four screws
(+BVST 3X8)
3 Two screws
(HEX)
6 BG1 board
5 Five screws
(+BVST 3X8)
