KLV-20/32/37/40S400A (CH) 3-2
3-1. KLV-32S400A

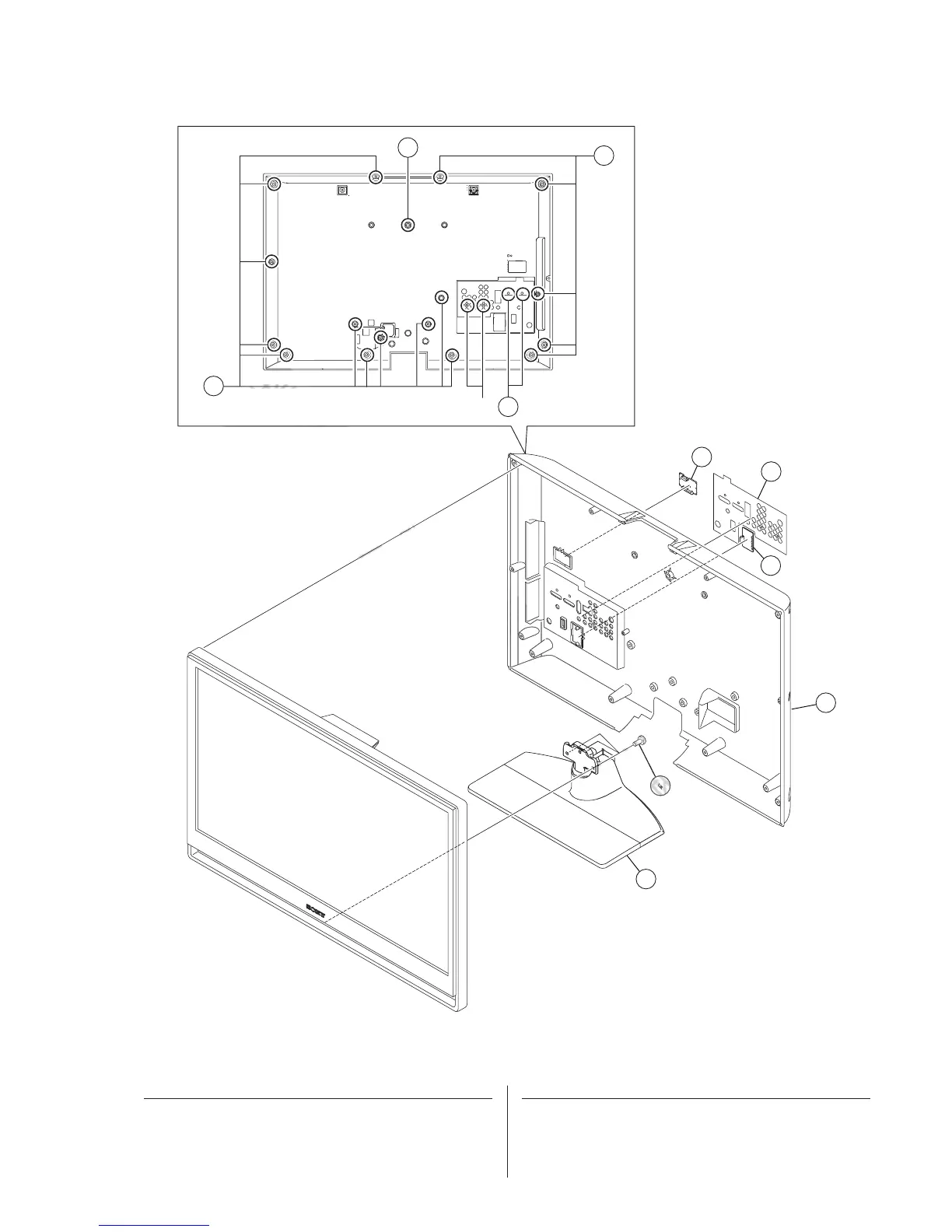

3-1-1. REAR COVER ASSY AND STAND ASSY
REF. No. PART No. DESCRIPTION MARK
REF. No. PART No. DESCRIPTION MARK
1 ! X-2190-342-1 REAR COVER (32) ASSY
2 3-283-459-11 COVER, ECS
3 3-700-520-01 REAR TERMINAL LABEL
4 2-580-608-01 SCREW, +PSW M5X16
5 A-1550-501-A STAND ASSY (M-2)
6 2-580-640-01 SCREW, +BVTP2 4X16
7 2-580-590-01 SCREW, +PSW M3X5
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
5
2
2
3
1
4
#1
6
7
4
6
4
4
4
4
4
4
