Sony KLV-40S400A - Chassis-1

C
EF
85
B7
5C8
FE
03
FE27E
5
B2DD
5
FD4F
C580
D
C
2
C
A
3
BB
C3
A
6
D
83C
1
C
F4
C5
1
36
771FAAA
0
EBB
39665
D
65
2
9
1
KLV-20/32/37/40S400A (CH) 3-6
KLV-37S400A

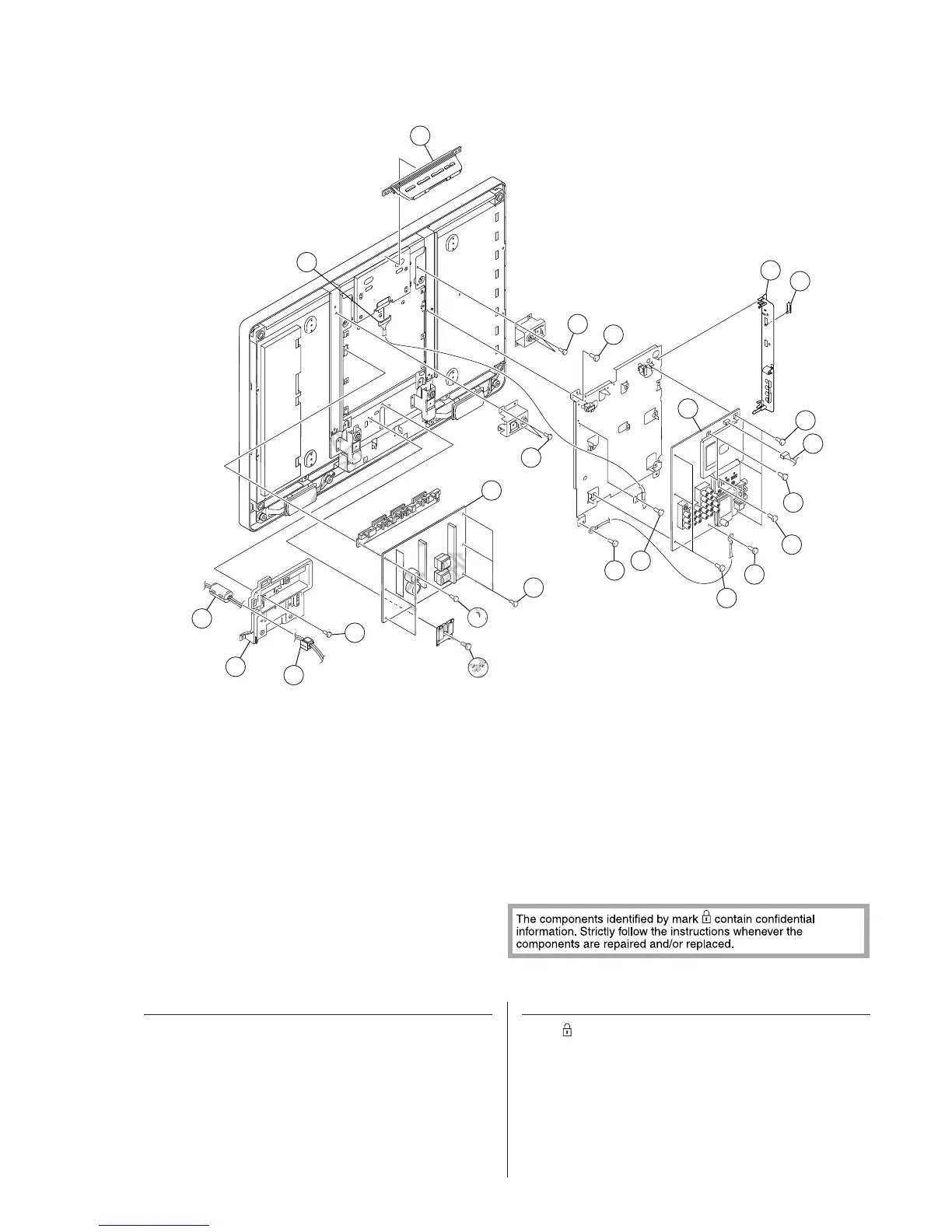

3-2-2. CHASSIS-1
205
206
205
208
205
211
208
205
207
205
210
209
212
205
205
205
205
205
201
202
203
205
204
213
REF. No. PART No. DESCRIPTION MARK REF. No. PART No. DESCRIPTION MARK
201 1-480-851-11 SWITCH UNIT
202 4-022-115-00 HOLDER, AC CORD
203 ! X-2318-763-1 COVER, UNDER (37) ASSY
204 1-543-798-11 FILTER, CLAMP (FERRITE CORE)
205 2-580-629-01 SCREW, +BVST 3X8
206 ! 1-474-095-12 POWER UNIT
207 2-580-626-01 SCREW, SP 4-4O UNC
208 2-580-600-01 SCREW, +PSW M4X8
209 3-297-539-11 BRACKET, SIDE JACK
210 3-876-478-01 COVER, MS
211 A-1542-787-A BG1 MOUNT
212 1-910-043-64 CONNECTOR ASSY 14P+20P
213 1-966-102-21 HARNESS WITH CONNECTOR (LVDS)
