KLV-20/32/37/40S400A (CH) 3-3
KLV-32S400A

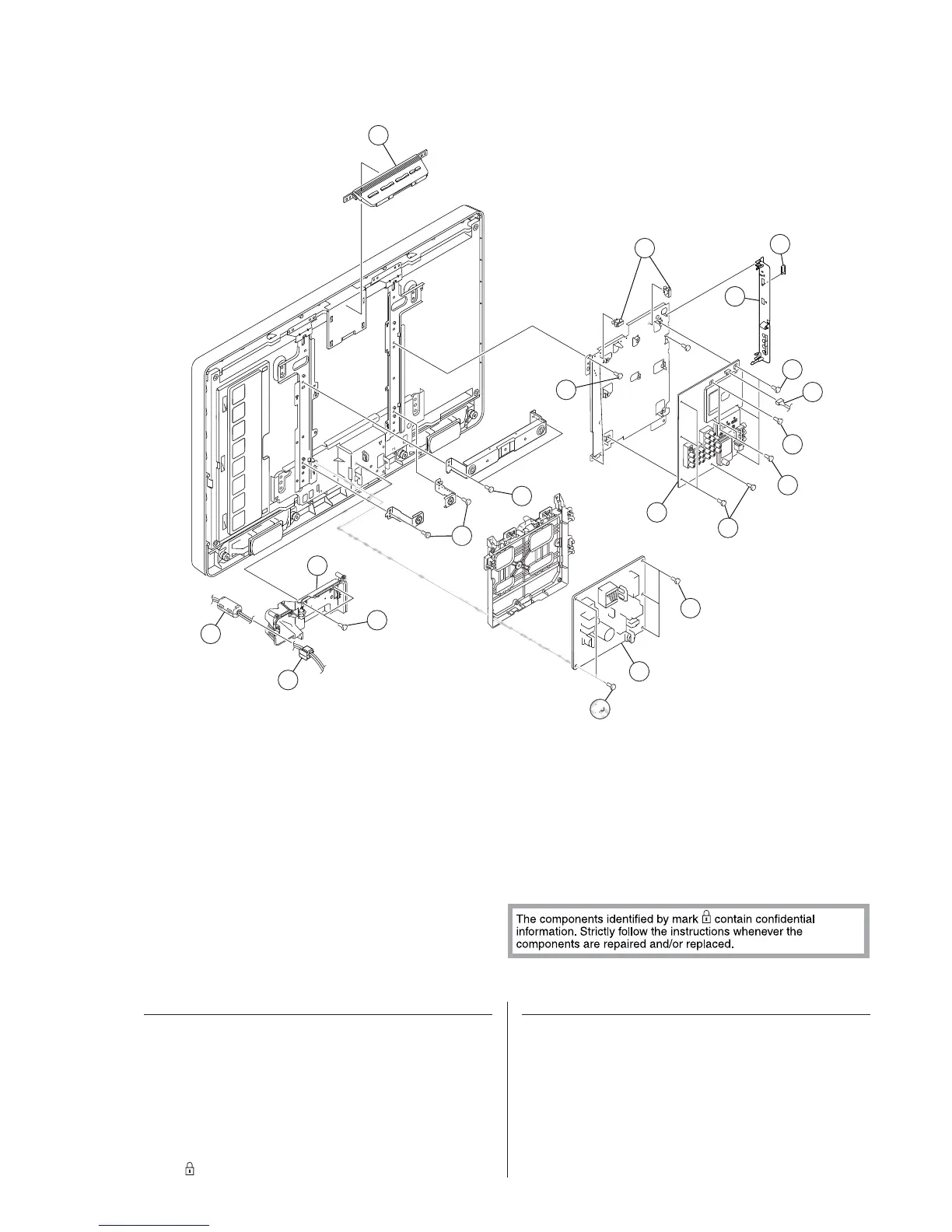

3-1-2. CHASSIS-1
REF. No. PART No. DESCRIPTION MARK REF. No. PART No. DESCRIPTION MARK
51 2-580-600-01 SCREW, +PSW M4X8
52 4-022-115-00 HOLDER, AC CORD
53 1-543-798-11 FILTER, CLAMP (FERRITE CORE)
54 ! 3-290-405-01 COVER, UNDER (32)
55 2-580-629-01 SCREW, +BVST 3X8
56 1-480-851-11 SWITCH UNIT
57 2-650-770-21 SLIDE, CLAMP
58 3-297-539-11 BRACKET, SIDE JACK
59 3-876-478-01 COVER, MS
60
A-1540-482-A BG1 MOUNT
61 1-910-043-53 CONNECTOR ASSY 14P+20P
62 2-580-626-01 SCREW, SP 4-4O UNC
63 ! A-1539-154-A GP COMPL
64 2-674-965-31 SCREW, +PSW 3SG
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
56
63
64
64
52
53
55
54
51
51
55
62
55
61
59
58
55
57
60
55
#1
64
6
64
64
64
64
4
4
5
