KLV-20/32/37/40S400A (CH) 1-17
KLV-20S400A

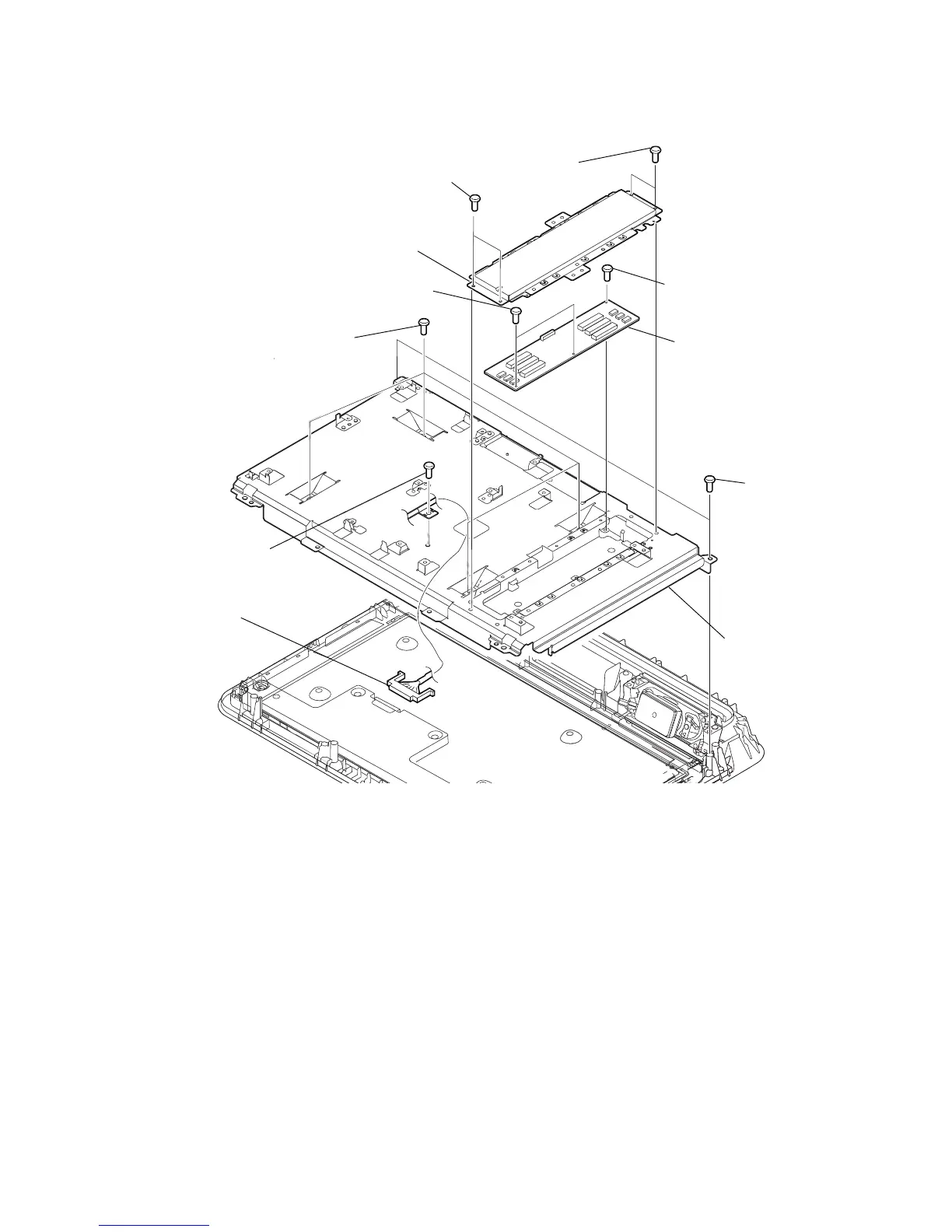

1-4-4. INVERTER BOARD AND LCD BRACKET REMOVAL
5 One screw
(+BVST 3X8)
9 Lead wire with connector
(LVDS)
6 Two screws
(+BVTP2 4X16)
7 Four screws
(+PSW M4X8)
1 Two screws
(+BVST 3X8)
1 Two screws
(+BVST 3X8)
3 Two screws
(+BVST 3X8)
3 One screw
(+BVST 3X8)
2 Inverter shield
4 Inverter board
8 LCD bracket
(
+
