KV-21FA210
V. ANGLE (VANG), V. BOW (VBOW), UPPER
PIN (UPIN) AND LOW PIN (LPIN)
ADJUSTMENTS
1. Input a crosshatch signal.
2. Activate the Service Adjustment Mode.
3. Select VANG, VBOW, UPIN, and LPIN with
1
and
4
.
4. Adjust with
3
and
6
for the best picture.
5. Press
MUTING
then
ENTER
to save into the memory.

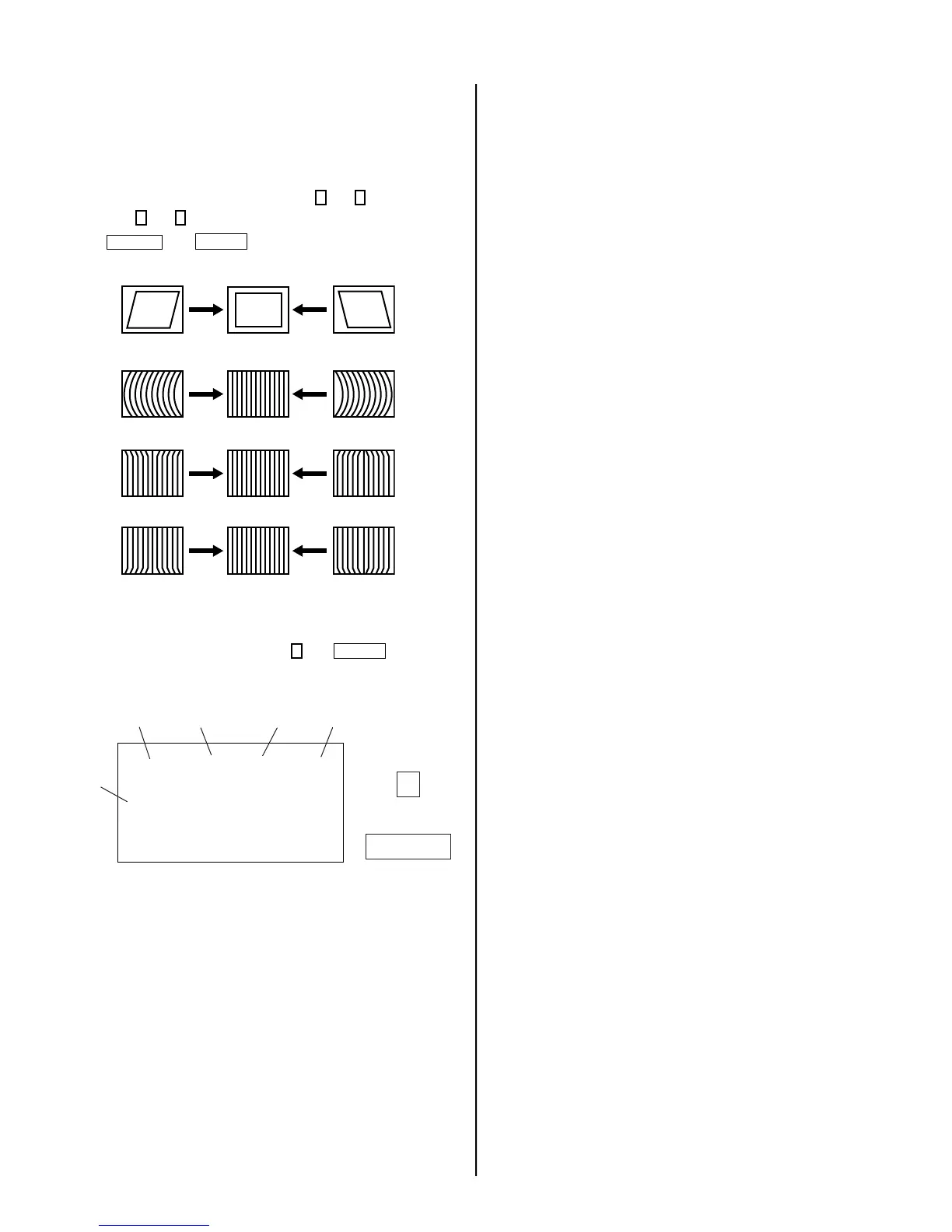

V ANGLE (VANG)
V BOW (VBOW)
UPPER PIN (UPIN)
LOW PIN (LPIN)
SERVICE ADJUSTMENT MODE MEMORY
1. After completing all adjustments, press
0
then
ENTER
.
Read From Memory
Green
Red
ENTER
0
service defl vbow
ntsc
vchp
Category
Display
Item
Mode
Item
Data
Signal
Type
00000000 00000000
7
To Next Page
