Sony KV-21FA210 TRINITRON - SECTION 1: DISASSEMBLY; 1-1. Rear Cover Removal; 1-2. Chassis Assembly Removal

— 9 —
KV-21FA210

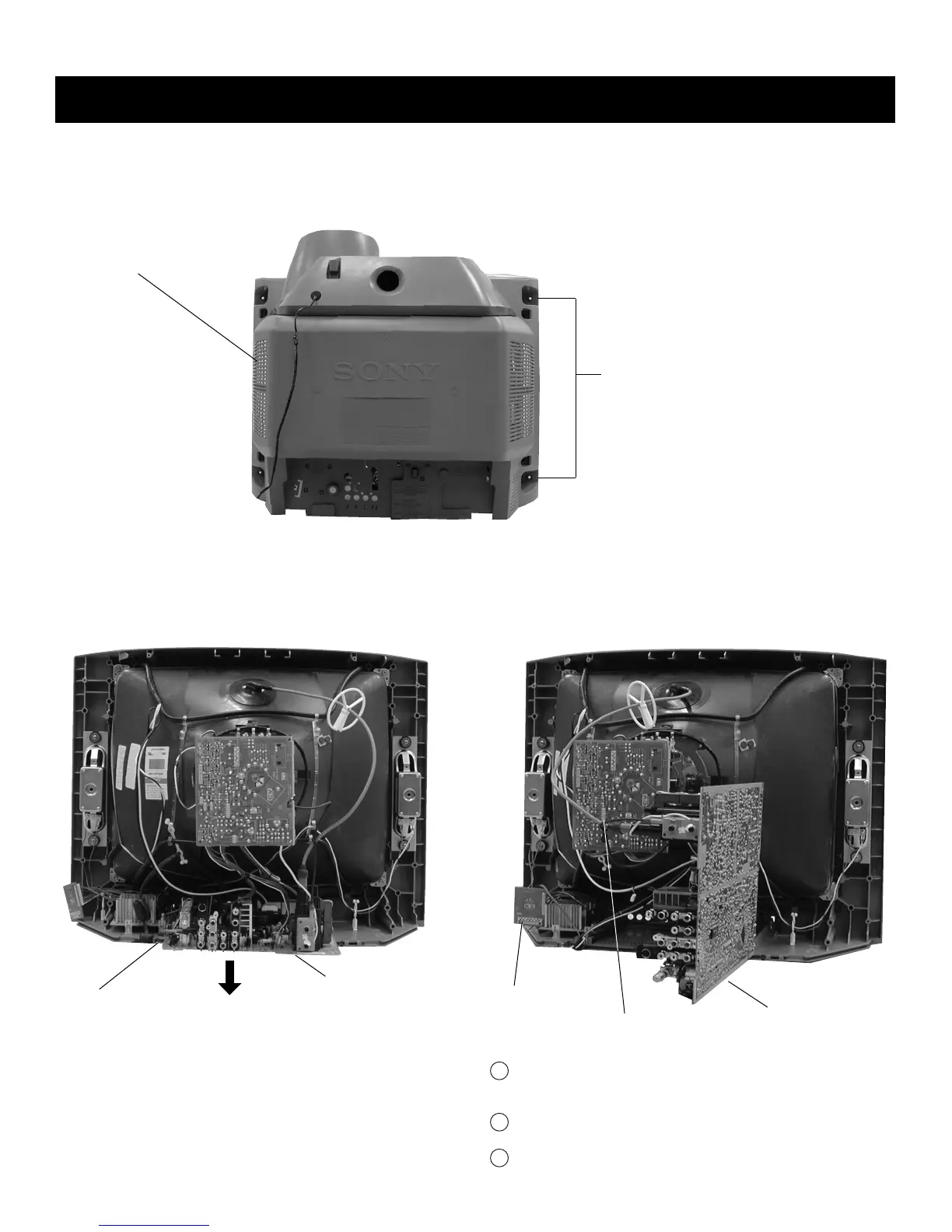

1-1. REAR COVER REMOVAL
SECTION 1: DISASSEMBLY
1-2. CHASSIS ASSEMBLY REMOVAL 1-3. SERVICE POSITION
Chassis Assembly
Claw
6 Screws +BVTP 4X16 TYPE2 TT(B)
Rear Cover
A Board
KB Board
CV Board
1
Unplug KB Board and 2 pin woofer connector and move out of
the way.
2
Press on catch tab to release A Board.
3
Disconnect remaining cables to allow A Board to be removed.
