— 44 —
KV-21FA210
NOTE: The components identied by shading and
!
mark are critical for safety.
Replace only with part number specied.
REF. NO. PART NO. DESCRIPTION [Assembly Includes] REF. NO. PART NO. DESCRIPTION
34
36
43
35
38
40
41
42
39
37
32
31
44
45
33
46

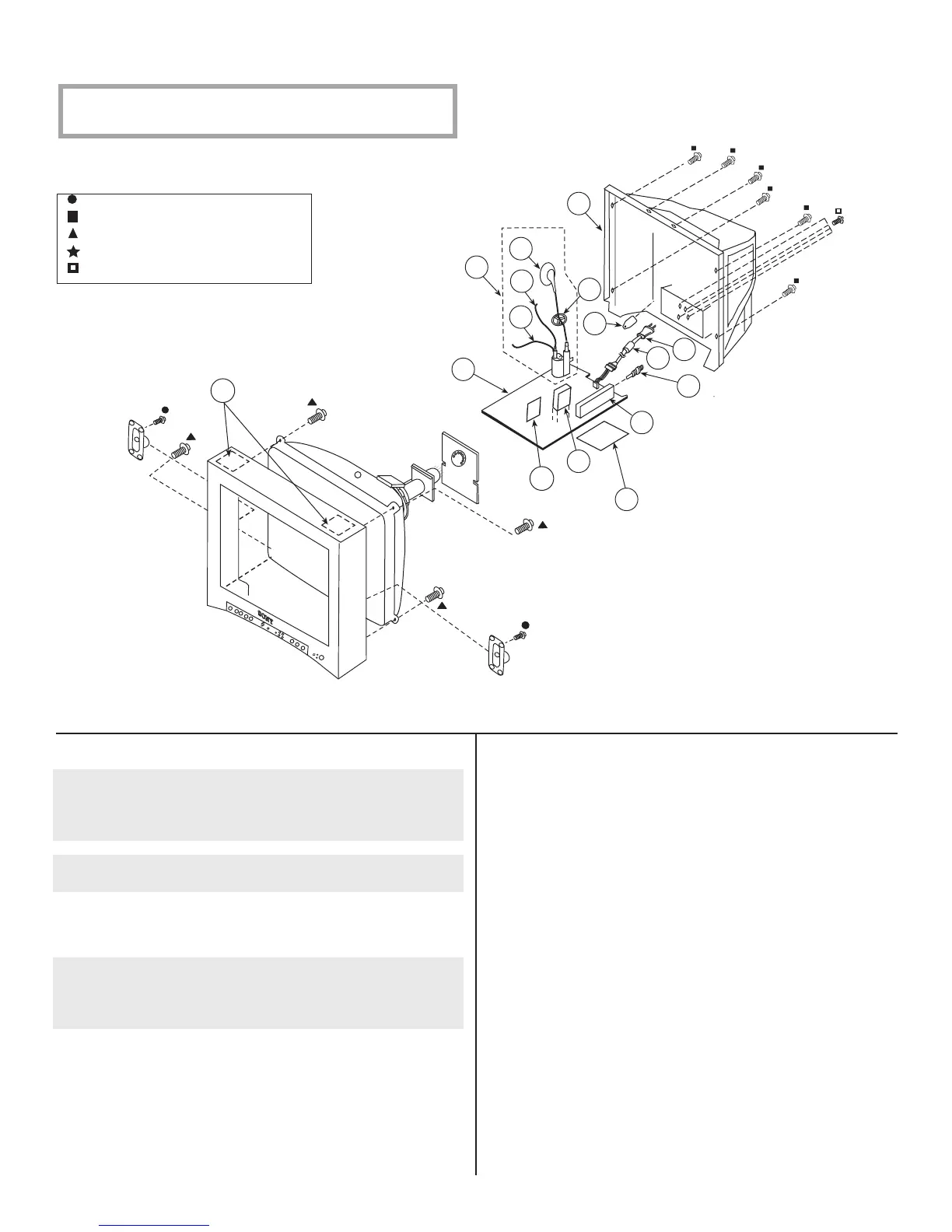

6-2. CHASSIS
4-384-096-01 SCREW (4X16), TAPPING, +P
7-685-663-79 SCREW +BVTP 4X16 TYPE2 TT(B)
4-365-808-01 SCREW (5), TAPPING
7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
31 A-1404-859-A KB BOARD, MOUNTED
* 32 A-1404-858-A K BOARD, MOUNTED
!
33 8-598-593-50 TUNER FSS BTF-WA421
!
34 1-766-374-11 PLUG, F-PIN
!
35 1-824-069-11 CORD, AC POWER(WITH CONNECTOR)
(LATIN NORTH ONLY)
!
35 1-757-840-12 CORD, POWER (WITH CONNECTOR)
(LATIN SOUTH ONLY)
* 36 4-081-980-11 HOLDER, AC CABLE
37 4-084-918-01 HOLDER, HV CABLE
38 4-087-153-02 COVER, REAR
!
39 1-453-316-21 FBT ASSY NX-1748//X4A4 (40-42)
!
40 1-251-642-52 CAP ASSY, HIGH-VOLTAGE
!
41 1-900-800-65 CONNECTOR ASSY, FOCUS LEAD
!
42 1-900-803-22 WIRE ASSY, G2 LEAD
43 A-1302-090-A A BOARD,COMPLETE (LATIN NORTH ONLY)
* 43 A-1302-094-A A BOARD,COMPLETE (LATIN SOUTH ONLY)
The high-voltage leads associated with the FBT on this
A Board are not included and must be ordered separately (See 40-42)
44 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
(LATIN SOUTH ONLY)
* 45 A-1400-738-A M3 (VAR) BOARD, MOUNTED
46 4-089-108-01 DAMPER, SOUND
