Sony m-430 - PRINTED WIRING BOARD

– 11 – – 12 –
M-430

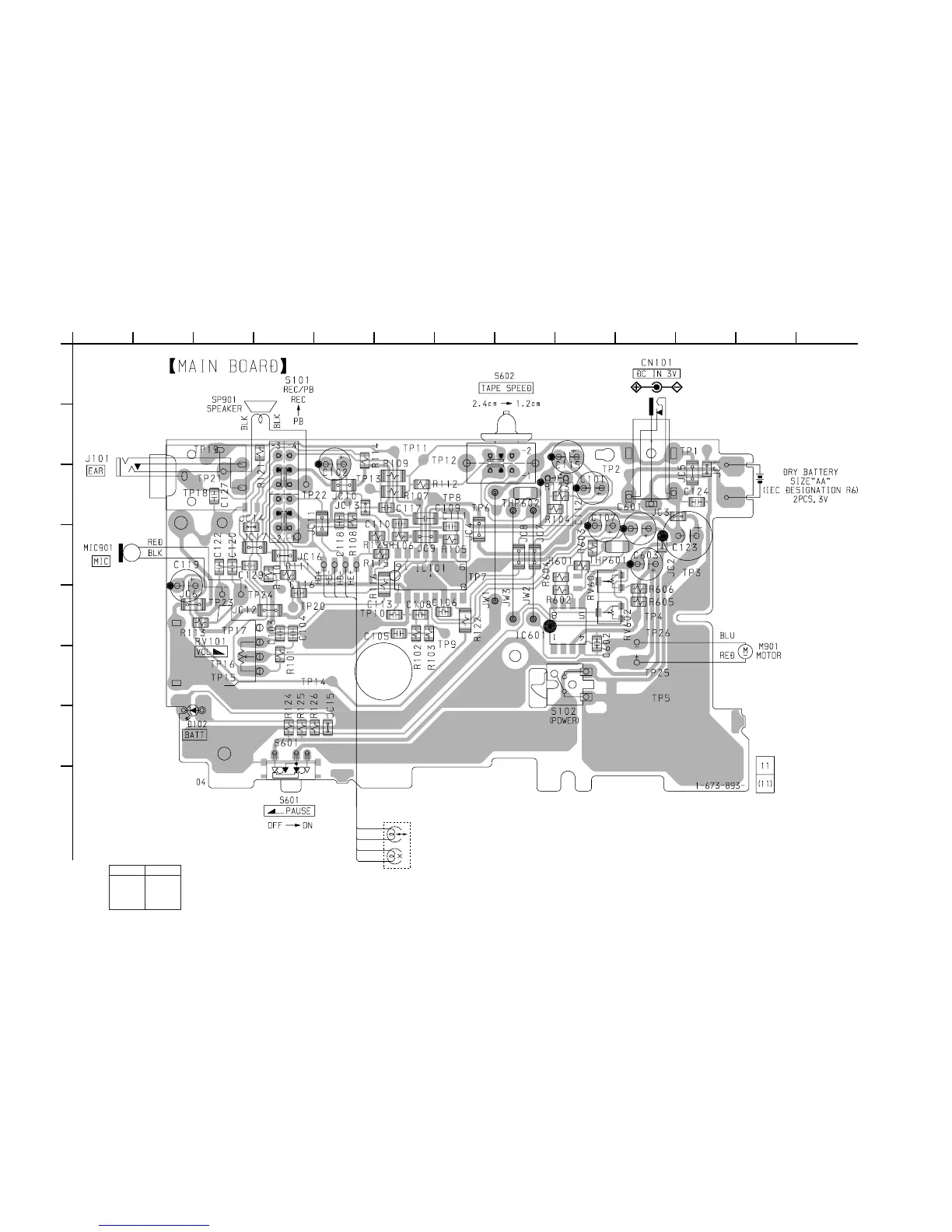

5-2. PRINTED WIRING BOARD
Note:
• X : parts extracted from the component side.
• b : Pattern from the side which enables seeing.
1
A
B
C
D
E
F
G
H
2345678910111213
HRPE901
REC/PB/ERASE
HEAD
(REC/PB)
(ERASE)
HD+
HD–
HE+
HE–
()
D102 G-3
IC101 D-6
IC601 E-9
• Semiconductor
Location
Ref. No. Location
