Sony m-430 - MAIN BOARD; MECHANISM DECK

– 6 –

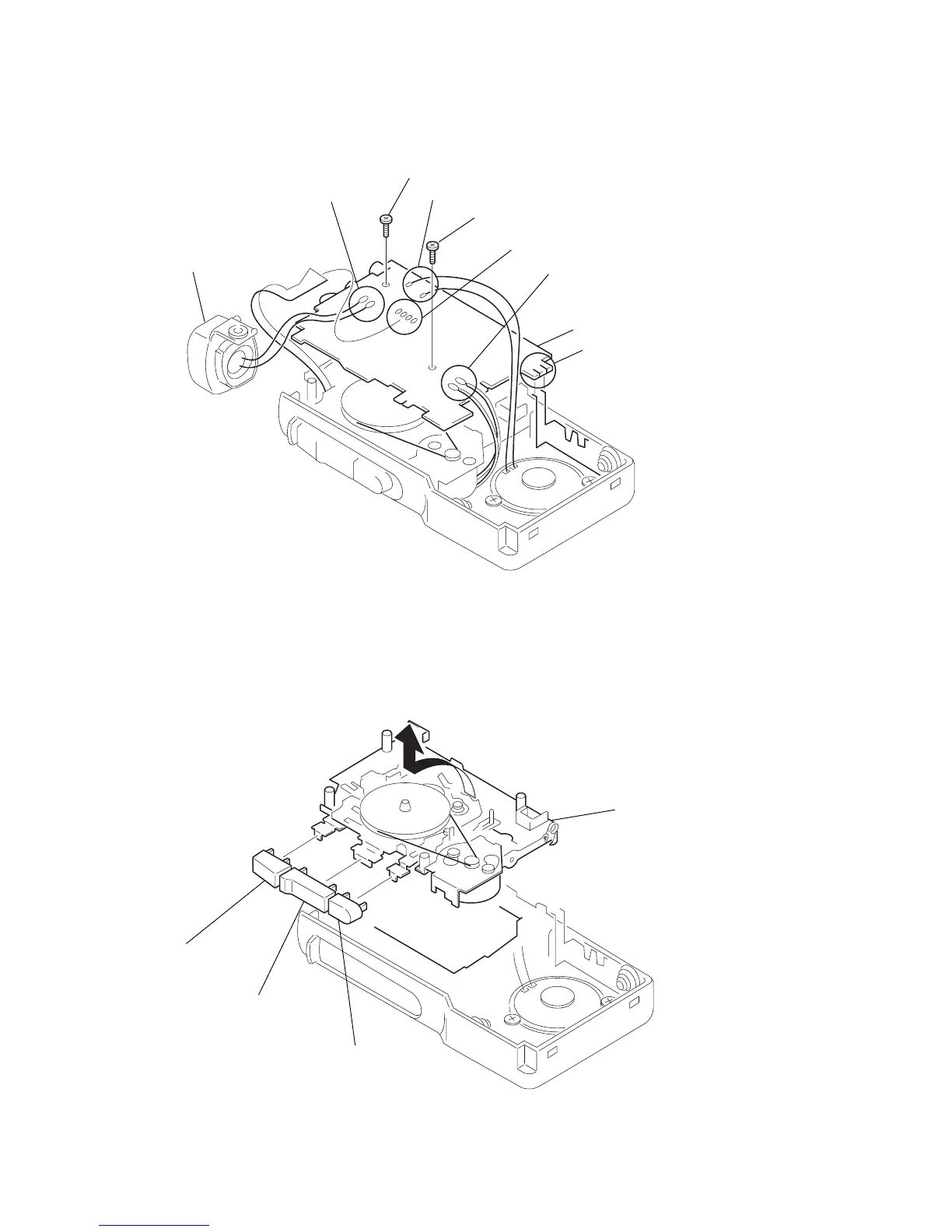

2-5. MACHANISM DECK
2-4. MAIN BOARD
7 (M1.4x3.0), locking
8 (M1.4x3.0), locking
6 mic assy
9 MAIN board
1 Unsolder the 2 places. 2 Unsolder the 2 places.
3 Unsolder the 4 places.
4 Unsolder the 2 places.
5 Unsolder the 2 places.
4 button (STOP)
2 button (REC)
1
3
button (PLAY)
mechanism deck
(MZ-430-99)
