SECTION 2
DISASSEMBLY
• The equipment can be removed using the following procedure.
Note : Follow the disassembly procedure in the numerical order given.

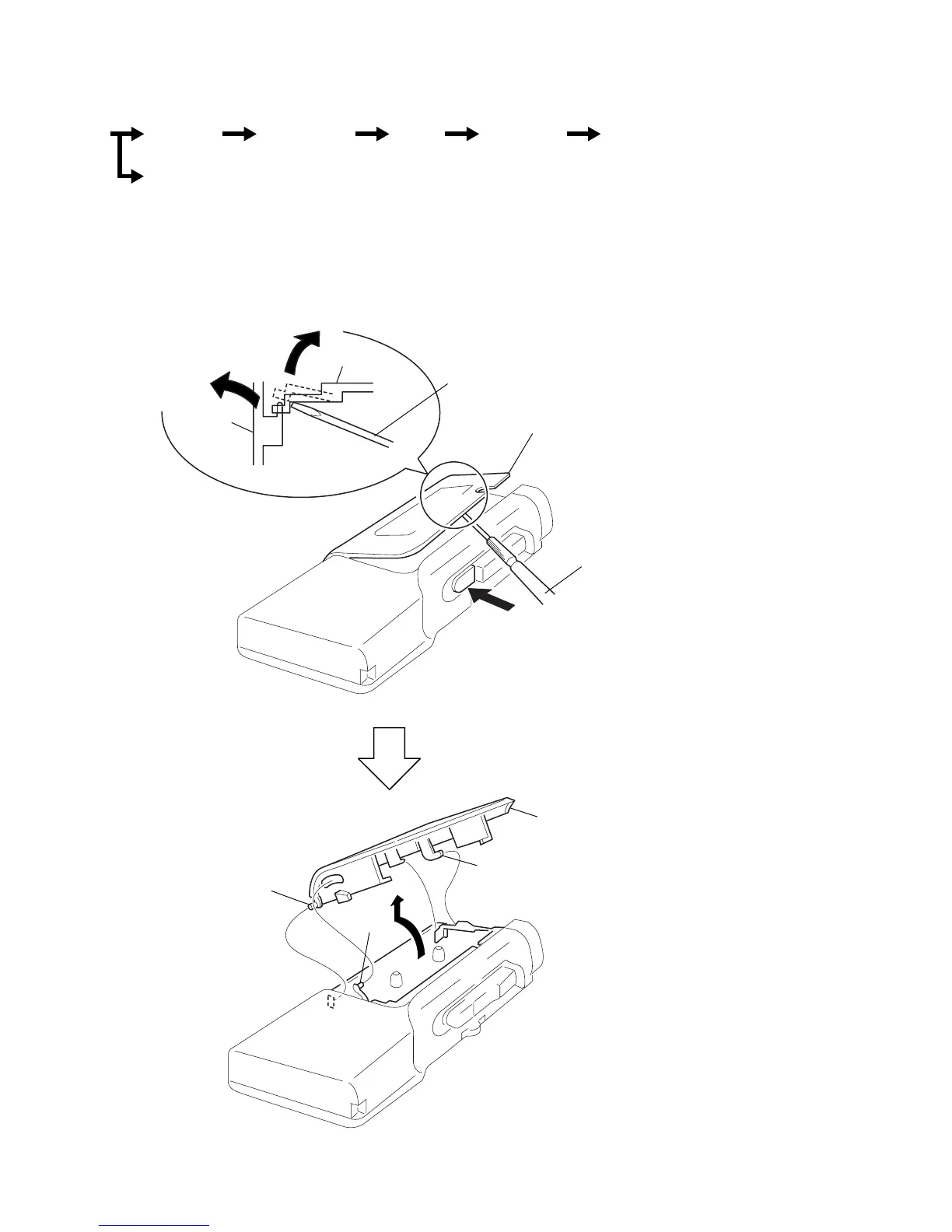

2-1. LID ASSY, CASSETTE
2 Stop the lid assy, cassette
halfway.
1
3
4
precision screwdriver
or equivalent
cabinet (front)
lid assy,
cassette
top view
precision screwdriver
or equivalent
9 lid assy, cassette
5
8
6
7
Set Lid assy,
cassette
Cabinet (rear)
assy
Main
board
Mechanism
deck
Head,
ceramic
Lid,
battery case
Note : When removing the cassette lid, put cloth on the end of a
screwdriver or use a polyacetal driver to avoid damage to
the cabinet.
