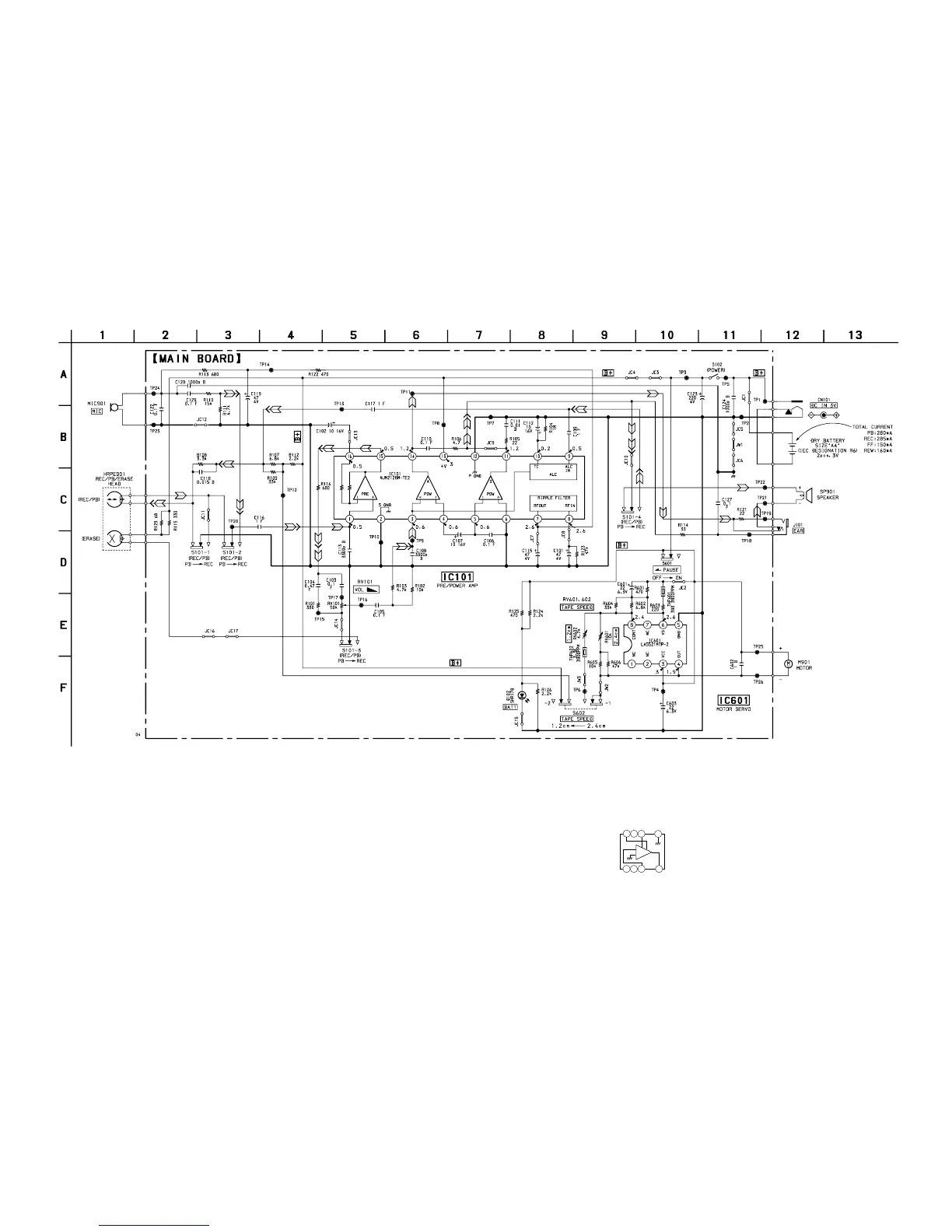

5-3. SCHEMATIC DIAGRAM
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• C : panel designation.
• U : B+ Line.
• H : adjustment for repair.
• Power voltage is dc 3 V and fed with regulated dc power
supply from battery terminal.
• Voltage is dc with respect to ground under no-signal
condition.
no mark : PB/REC
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
E : PB
a : REC
M-430
• IC Block Diagram
IC601 LA5521MTP-2
1 2
3
4
5
6
7
8
CONT
NC
VC
GND
NC
NC
VCC
OUT
To Next Page
