EEPROM DATA ACCESS
3/16/01
CPC lid
Screwdriver (-)
CPC-12 jig
22 pin flexible board
Insulator side
FC-72 board
CN803
[Adjusting connector]

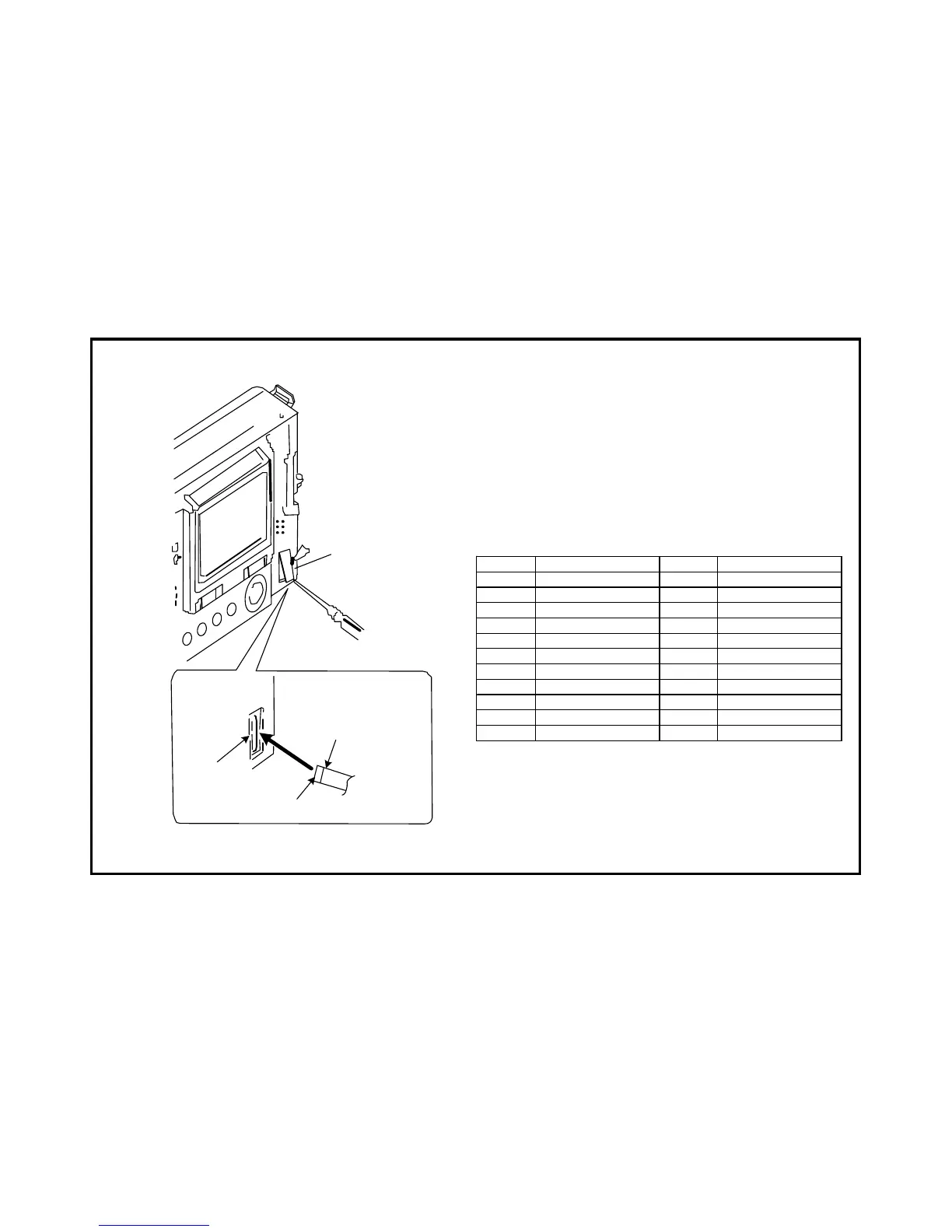

Most of the measuring points for adjusting the LCD system are
concentrated in CN803 of FC-72 board.
Connect the Measuring Instruments via the CPC-12 jig
(J-6082-436-A).
The following table shows the Pin No. and signal name of
CN803 of FC-72 board
Pin No. Signal Name Pin No. Signal Name
1 FDDRF B 12 LANC OUT
2 FDDRF A 13 MAKER RECOG
3 INDEX 14 PF7
4REG GND 15TXD
5 XCPC IN 16 RXD
6 TRAK 00 17 RESET
7 HSY 18 HI VDD
8 COM 19 EVF BL+
9 VG 20 EVF BL 4.75 V
10 HI UNREG 3.2V 21 EVF VG
11 LANC IN 22 EVF VCO
2DSC1
To Next Page
