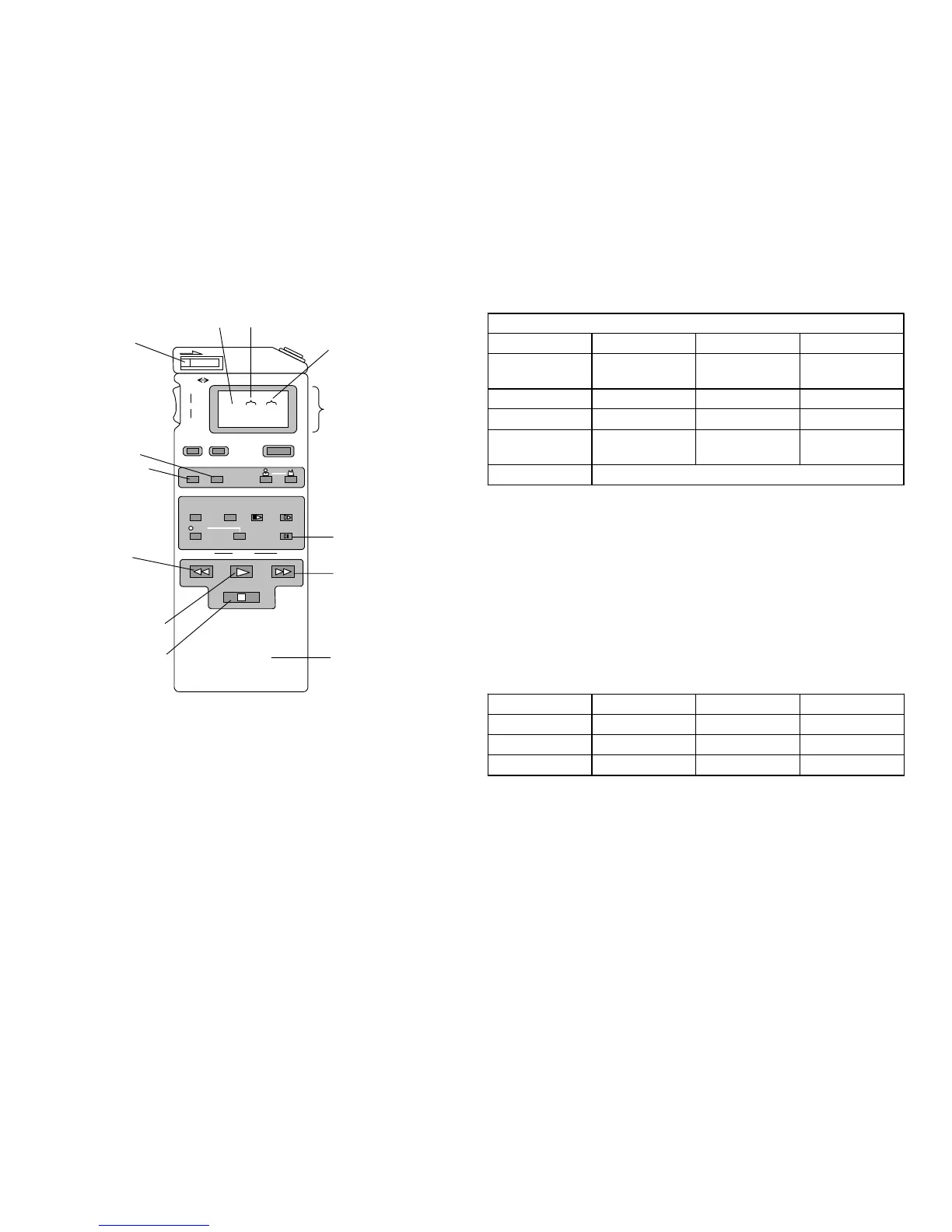

iii
HOLD
START/
STOP
NOR ADJ
WIDE
ZOOM
TELE
0 : 00 : 00
REC
REVIEW
FOCUS
POWER
- +
EDIT SEARCH
COUNTER
RESET
DATA
SCREEN
FRAME SLOW
REC
PAUSE
REW PLAY FF
STOP
SONY
1. NORMAL
SERVICE (ADJ)
2. PAGE UP
PAGE DOWN
3. ADDRESS
DOWN
4. INCREASE DATA
VALUE
DECREASE DATA
VALUE
PAGE
DATA
ADDRESS
LCD
PANEL
5. DATA
STORING
3. ADDRESS
UP
SONY P/N J-6082-053-B
IC4 P/N 8-759-148-35
RM-95 - Proving a Flash Operation Failure Occurred
When the flash is activated but fails to function, this failure is recorded as
a change in the data at one of the address locations on page d.
To view the data and see if there was a flash failure:
1. Connect the RM-95 to the Mavica and turn the Mavica ON.
2. Use the RM-95’s Edit Search buttons to find page d and the FF and
Rew buttons to search up to address 67. If the data is 00, there has
been no error detected. A data of 04 means some flash problem
occurred but there is no other information.
3. If you want to see if the flash problem occurs again you must clear /
reset the data by returning it to 00. First remove write protect (write
enable) to change the data. See the chart for the location.
Flash Operation Check with RM-95
Operation Page Address Data
Write Protect
(normal)
00100
Write enable 0 01 01
Flash problem d 67 04
Normal (No
flash problem)
d6700
Save new data Press the Pause button.
Write enable cannot be saved. This data returns to 00 at power OFF to
inhibit future data changes.
RM-95 - Test LED Operation
Changing the data at one address location can turn on three LEDs.
1. Connect the RM-95.
2. Disable Write Protect (write enable) by going to page 0, address 01 to
change the data from 00 to 01.
3. Go to the LED check page 2, address 06 and change its data to 02.
All the LEDs on the camera will light except the disc access LED next
to the power switch.
4. Return the data to 00 for normal operation.
Operation Page Address Data
Write enable 0 01 01
All LEDs ON 2 06 02
Normal 2 06 00
To Next Page
