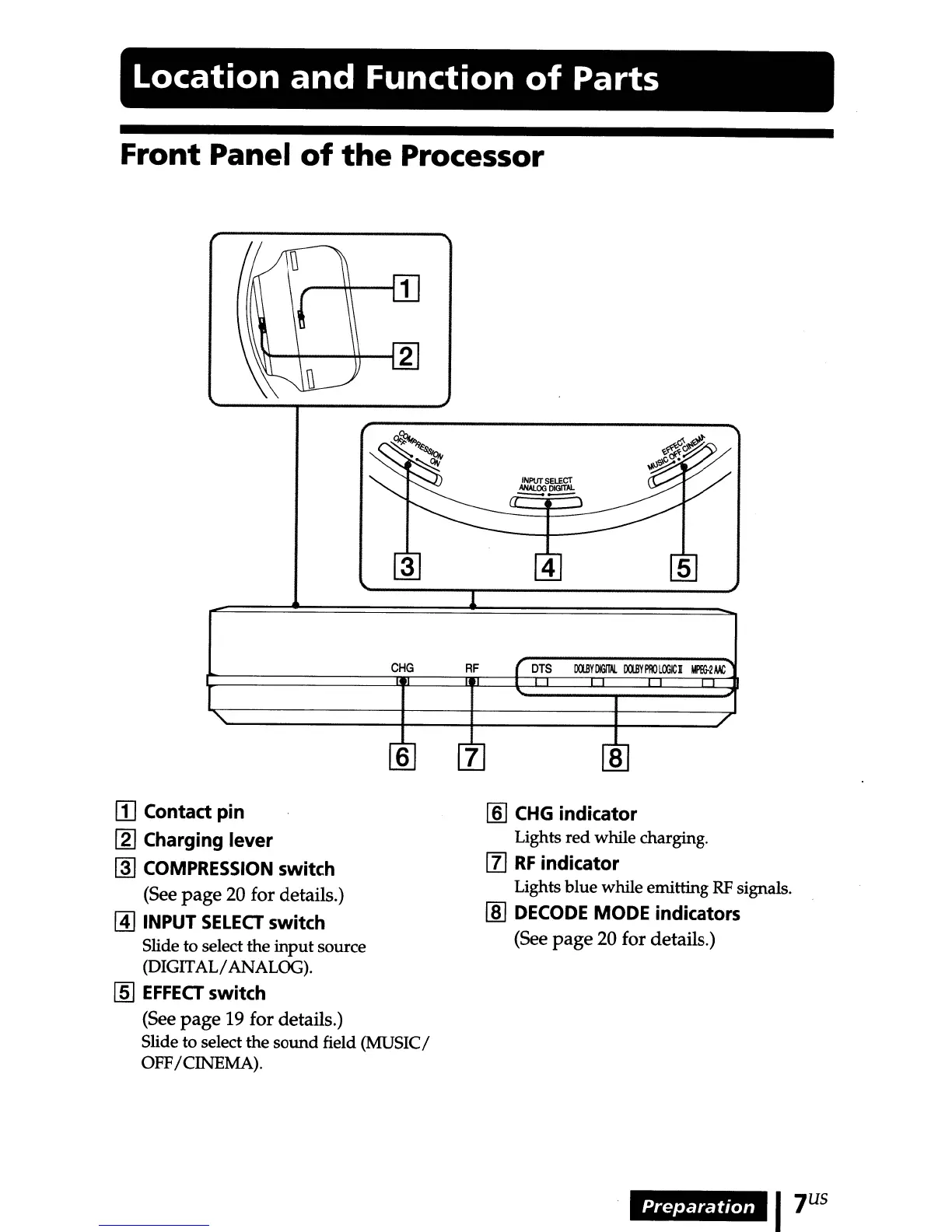

Location and Function of Parts
Front Panel of the Processor
INPUT Sar:CT
ANALOG DIGITAL
--
CHG
6
II] Contact pin
~ Charging lever
[ID COMPRESSION switch
(See page 20 for details.)
@] INPUT SELECT switch
Slide to select the input source
(DIGIT AL/ ANALOG).
[ID EFFECT switch
(See page 19 for details.)
Slide to select the sound field (MUSIC/
OFF /CINEMA).
RF
7
DTS 1XXBY00II1L IXXBYIIDLOOK:I tofEG.2AN:
8
[§] CHG indicator
Lights red while charging.
[l] RF indicator
Lights blue while emitting RF signals.
rID DECODE MODE indicators
(See page 20 for details.)
