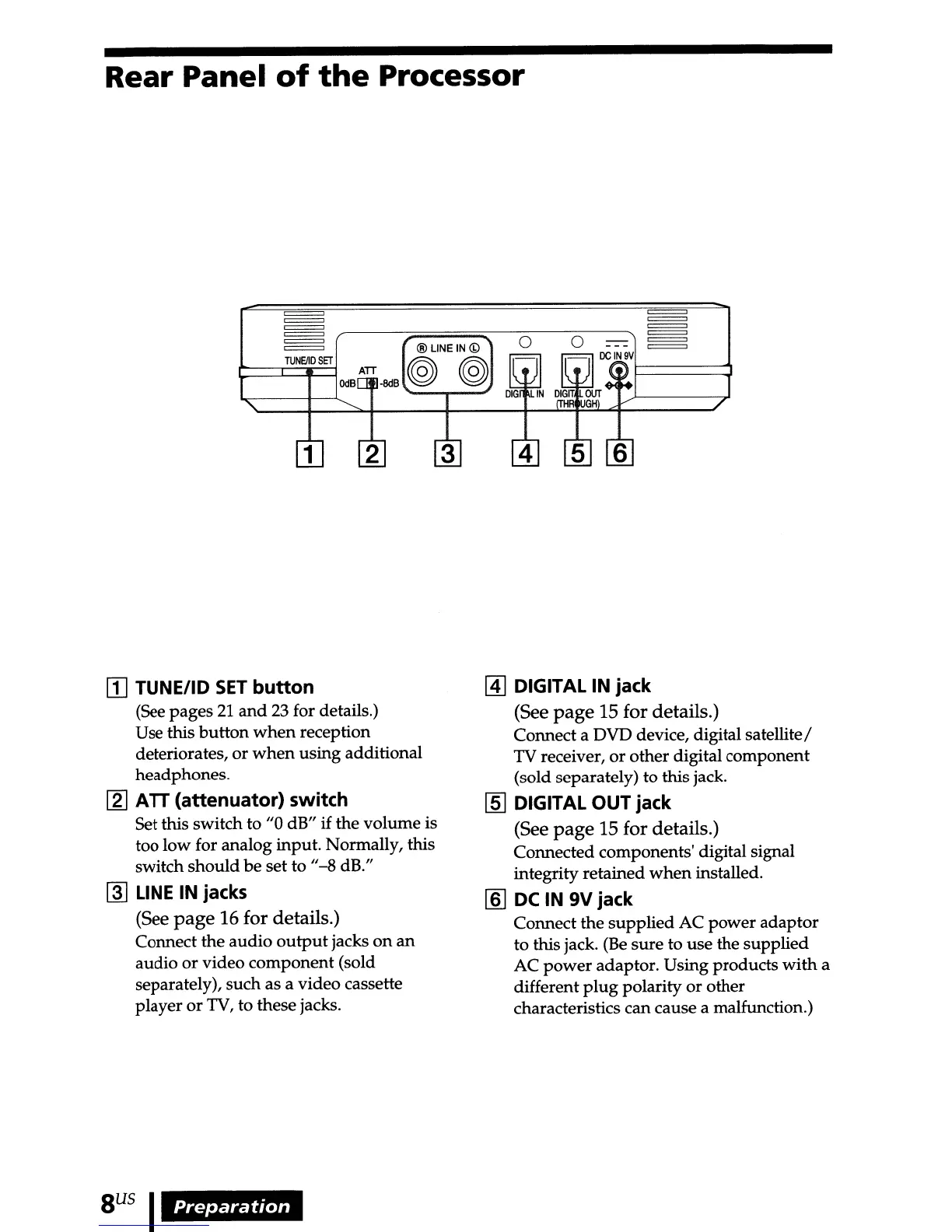

Rear Panel
of
the
Processor
=
=
=
=
=
=
o
3
1
=
=
=
=
~
®L1NE
IN
<9
0
TUNEIIDSET
An
® ®
OdB
-8dB
~ ~
---,r---
[I] TUNE/ID
SET
button
(See pages
21
and
23
for details.)
Use this
button
when
reception
deteriorates,
or
when
using additional
headphones.
[g]
ATT
(attenuator)
switch
Set this switch
to
"0 dB"
if
the
volume
is
too low for analog input. Normally, this
switch
should
be
set to
"-8
dB."
~
LINE
IN jacks
(See
page
16 for details.)
Connect the
audio
output
jacks
on
an
audio
or
video
component
(sold
separately), such as a video cassette
player
or
TV,
to these jacks.
@]
DIGITAL IN jack
(See
page
15
for details.)
Connect a DVD device, digital satellite/
TV
receiver,
or
other digital component
(sold separately) to this jack.
[§]
DIGITAL
OUT
jack
(See
page
15
for details.)
Connected components' digital signal
integrity retained
when
installed.
[ID
DC
IN
9V
jack
Connect the
supplied
AC
power
adaptor
to this jack.
(Be
sure to use the supplied
AC
power
adaptor. Using products
with
a
different
plug
polarity
or
other
characteristics can cause a malfunction.)
sus I
Preparation
