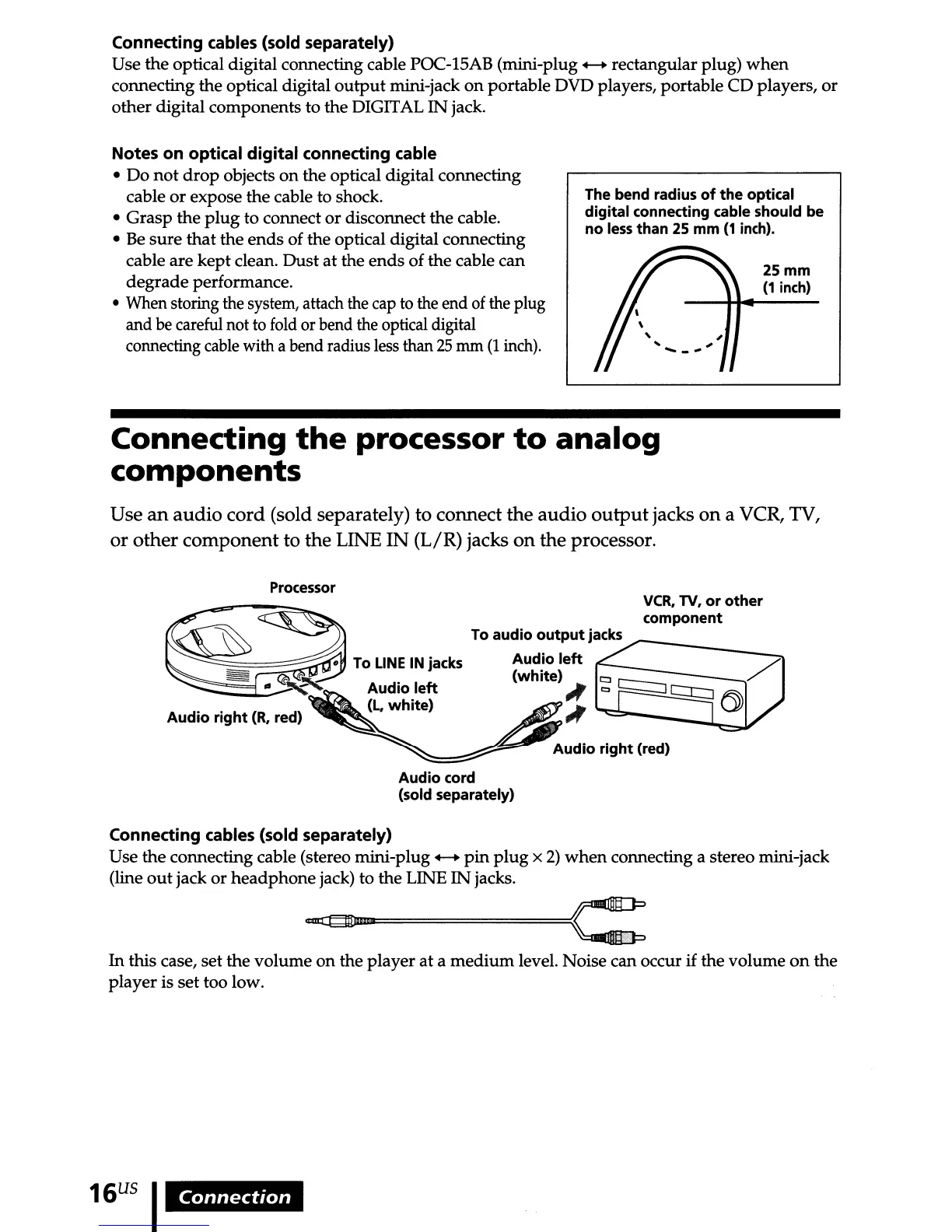

Connecting
cables
(sold
separately)
Use the optical digital connecting cable POC-15AB (mini-plug
+-+
rectangular plug)
when
connecting the optical digital
output
mini-jack
on
portable DVD players, portable
CD
players,
or
other
digital components to the DIGITAL
IN
jack.
Notes
on
optical digital
connecting
cable
•
Do
not
drop
objects
on
the optical digital connecting
cable
or
expose
the
cable to shock.
•
Grasp
the
plug
to connect
or
disconnect the cable.
•
Be
sure
that
the
ends
of the optical digital connecting
cable are
kept
clean.
Dust
at
the
ends
of
the cable can
degrade
performance.
• When storing the system, attach the cap
to
the end
of
the plug
and be careful not to
fold
or bend the optical digital
connecting cable with a bend radius less than
25
nun
(1
inch).
The bend radius
of
the optical
digital connecting cable should be
no
less
than 25 mm
(1
inch).
25mm
(1
inch)
Connecting
the
processor
to
analog
components
Use
an
audio
cord (sold separately) to connect the
audio
output
jacks
on
a VCR, TV,
or
other
component to the LINE IN (L/R) jacks
on
the processor.
Processor
Audio right
(R,
red)
VCR,
TV,
or
other
component
To audio
output
jacks
•
To
LINE
IN
jacks
Aud.io left
~
(white) l::J
/'
Audio
left
tt
l:>
~
Q::::]
~
(l,
white)
tt
I...J!)
Audio right (red)
Audio cord
(sold separately)
Connecting
cables
(sold
separately)
Use
the
connecting cable (stereo mini-plug
+-+
pin
plug
x
2)
when
connecting a stereo mini-jack
(line
out
jack
or
headphone
jack)
to
the LINE
IN
jacks.
In this case, set the
volume
on
the
player
at
a
medium
level. Noise can occur
if
the volume
on
the
player
is
set
too low.
16
US
I
Connection
