– 9 –
1 Remove two solders of
DC motor (over write head up/down) (M603).
1 Remove four solders of
DC motor (sled) (M602).
1 Remove four solders of
DC motor (spindle) (M601).
DC motor (sled)
circular hole
3 motor flexible board
2 adhesive sheet
Note: Align a circular hole in the stripping paper
with a circular hole in the DC motor (sled),
when mounting the motor
flexible board.

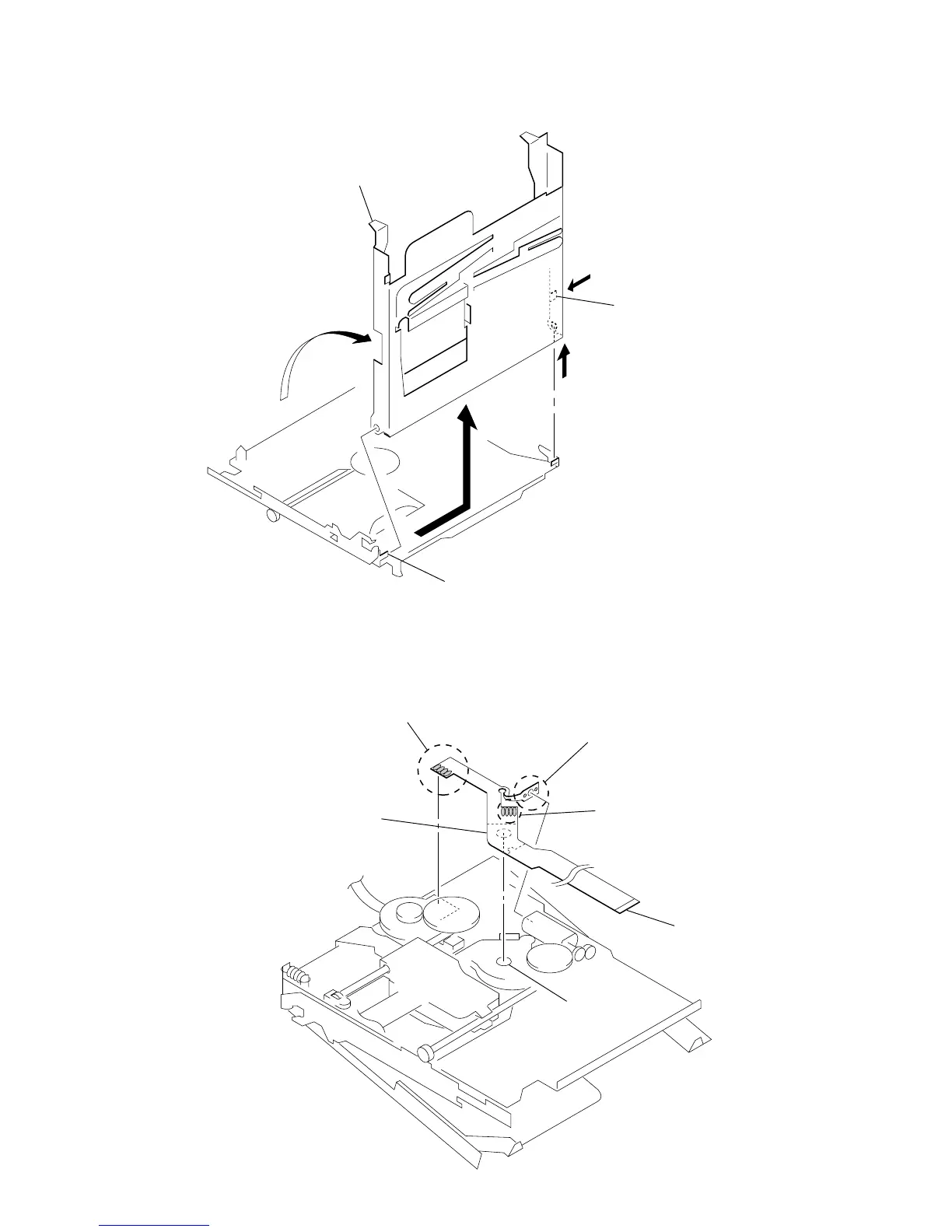

5 Remove the holder assy in the
direction of arrow C.
1 Open the holder assy.
A
B
3
C
2 Push the convex portion
toward the direction B and
open the holder assy toward
the direction A to erect uprightly.
4 boss
HOLDER ASSY
MOTOR FLEXIBLE BOARD
