Sony NW-E99 - MAIN Board Section

19
NW-E99
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-318-203-81 SCREW (B1.7X7), TAPPING
52 3-266-604-21 ORNAMENT
53 3-266-584-11 BUTTON (PLAY)
54 3-266-608-01 SHEET (COVER), ADHESIVE
55 3-266-586-11 COVER (PLAY)
56 3-266-581-11 KNOB (HOLD)
57 2-023-871-01 SHEET (VOL), ADHESIVE
58 3-266-582-11 BUTTON (VOL)
59 3-266-595-01 SHEET (VOL)
60 2-048-634-01 SHEET (FRONT), ADHESIVE

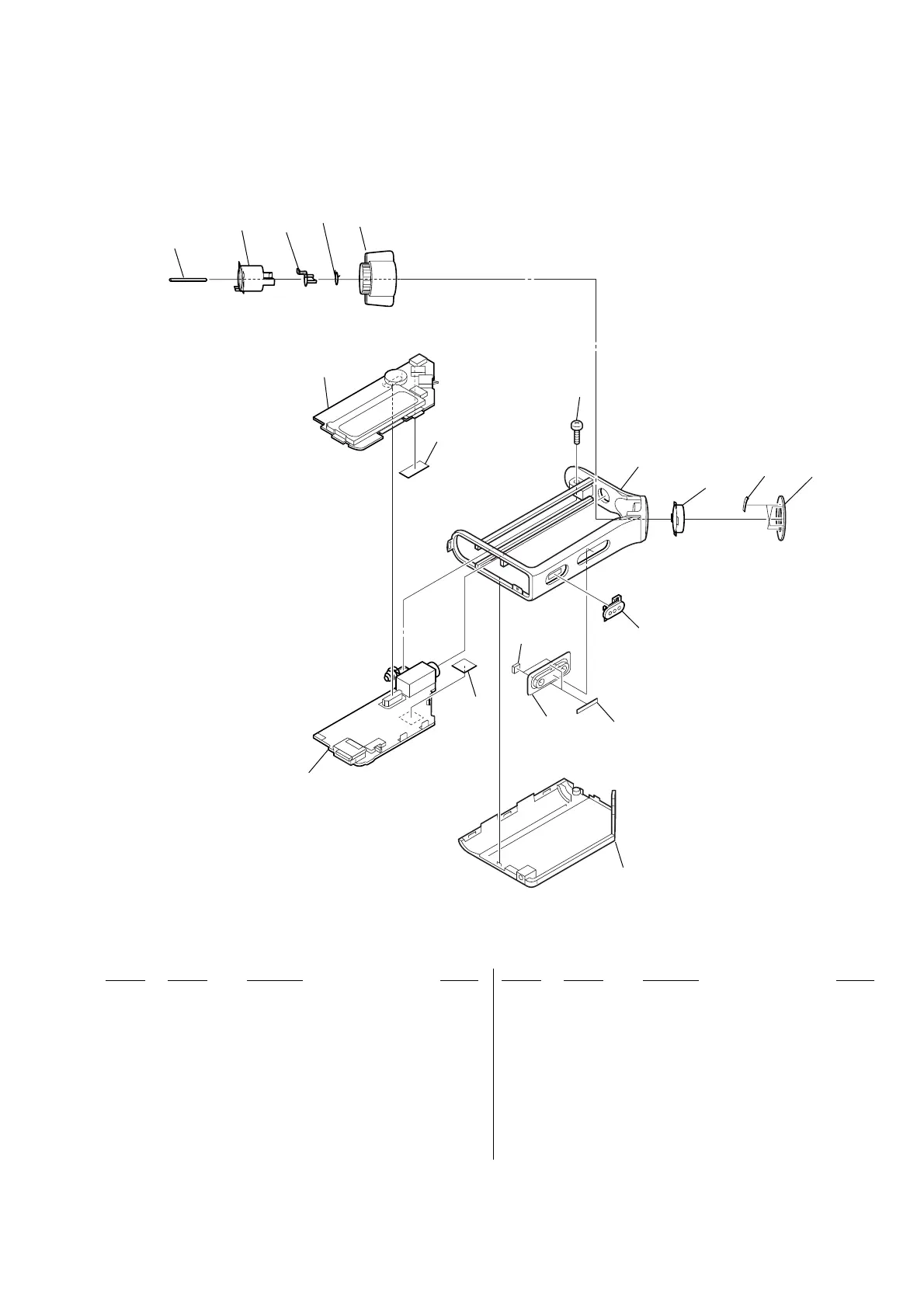

5-2. MAIN BOARD SECTION
51
54
55
53
56
57
58
62
63
64
67
65
66
68
52
69
60
61
59
61 2-342-341-31 CHASSIS (REAR)
62 X-2102-785-1 MAIN BOARD, COMPLETE
63 3-266-606-01 SHAFT (PLAY)
64 3-266-583-01 ARM (SHUTTLE)
65 3-266-588-01 INNER (SHUTTLE)
66 3-266-610-01 KNOB (SHUTTLE)
67 3-266-605-01 SPRING (SHUTTLE)
68 A-1095-905-A DISPLAY BOARD, COMPLETE
69 2-048-635-01 SHEET (REAR), ADHESIVE
Ver. 1.5
