Sony NW-E99 - 5 Exploded Views; Overall Assy Section

18
NW-E99
7 4-984-017-11 SCREW (1.7), TAPPING
8 3-266-597-11 COVER (USB)
9 X-3385-162-1 TERMINAL (+) SUB ASSY, BATTERY
10 3-266-599-11 LID, BATTERY CASE
11 3-247-180-01 SCREW (1.4X3)
12 X-2050-990-1 LID (USB) SUB ASSY
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.A
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark
1 3-266-585-42 CASE
2 2-342-339-61 CHASSIS (FRONT)
3 3-266-591-11 BUTTON (CAP)
4 3-266-592-01 WINDOW (LED)
5 3-267-336-01 SHEET (BUTTON), ADHESIVE
6 3-266-596-11 LID (USB)

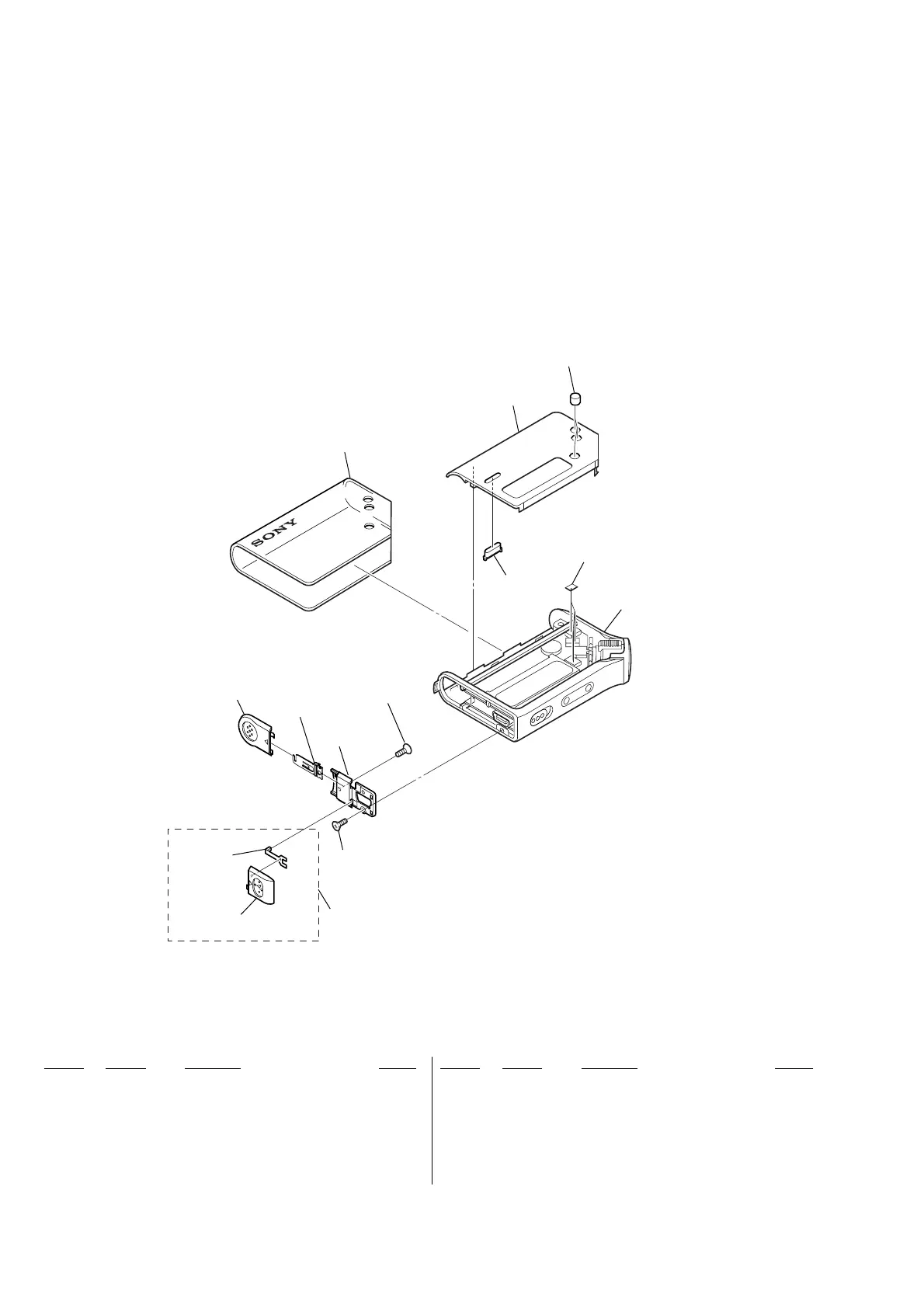

5-1. OVERALL ASSY SECTION
1
2
4
6
7
10
11
9
8
3
12
not supplied
main board sectio
n
5
Ref. No. Part No. Description Remark
Ver. 1.4
