8-1. ORIENTATION
SECTION 8
MOUNTING AND INSTALLATION
The drive may be mo un ted in eit h er a horizontal
or vertical position . (See Figure 8-1.) I n the hori-
zontal pos i tion the drive must be p ositio ned with
the printed circuit board on bottom . No o ther
restrictions co n cerning orie n tation exist.
_ .. "" ...
SOf1"~"'hO" .... or',. .... p .....

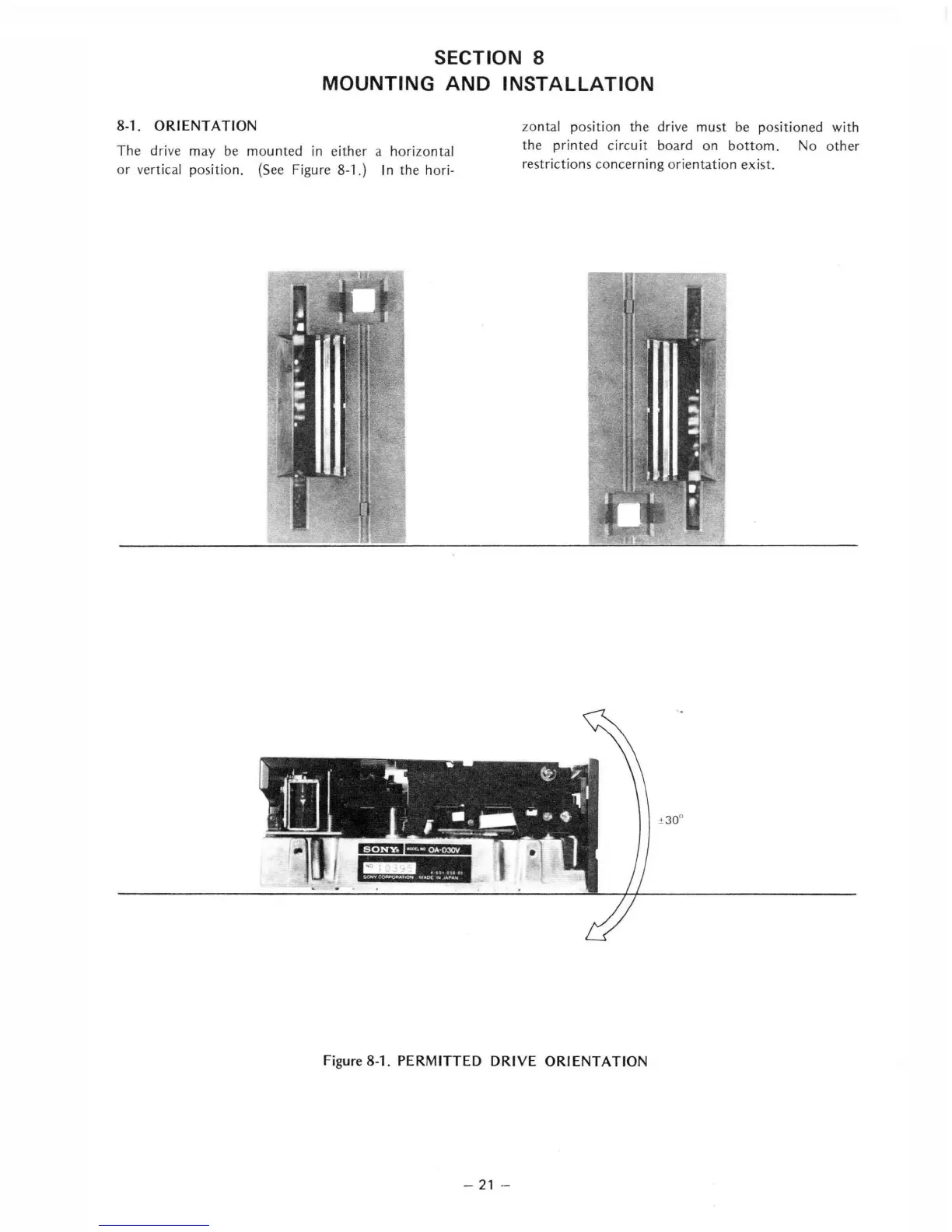

Figure 8-1. PERMITTED DRIVE ORIENTATION
- 21 --
±30°
