Sony PMC-107 - 6 Exploded Views; Rear Cabinet Section

– 48 –
1
4
5
2
3
6
#3
#2
#2
#2
#2
IC303
Q308
Q310
#2
#1
T901
F901
F902
not supplied
not
supplied
7
8
#4
#
4
#
4
#1
#1
SECTION 6
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the e xploded vie ws are not supplied.
• Items mar ked “*” are not stoc ked since
the y are seldom required f or routine ser vice.
Some delay should be anticipated
when ordering these items.
• Abbreviation
AUS : Austr alian model
CND : Canadian model
• -XX and -X mean standardized parts, so
the y ma y ha ve some diff erence from the
original one.
• Color Indication of Appear ance P ar ts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Par ts Color Cabinet’ s Color
• Accessories and packing materials and
hardware (# mark) list are given in
the last of this parts list.
Ref. No. Part No. Description Remark

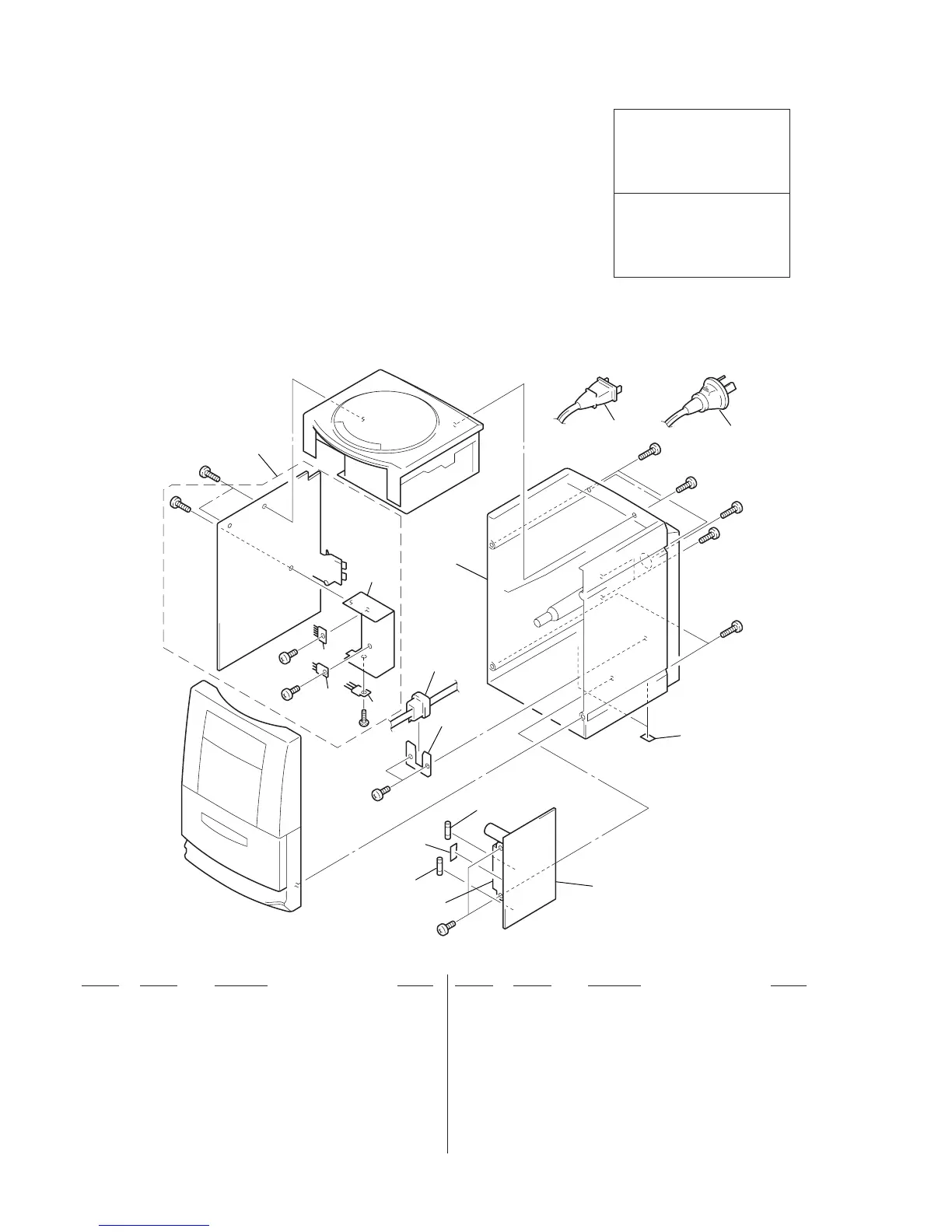

6-1. REAR CABINET SECTION
N
N
Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark.
! are cr itical for saf ety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
* 1 A-3293-989-A MAIN BOARD, COMPLETE
2 3-703-244-00 BUSHING (2104), CORD
* 3 1-670-425-11 POWER BOARD
4 3-025-492-01 CABINET (REAR)
5 3-026-310-01 FOOT
* 6 3-703-044-26 LABEL, FUSE WARNING (AUS)
! 7 1-590-926-11 CORD, POWER (US,CND)
! 8 1-696-845-11 CORD, POWER (AUS)
! F901 1-532-500-31 FUSE, TIME-LAG (T630mAL/250V) (AUS)
! F901 1-535-615-11 FUSE, SEMI-LAG (1A/250V) (US,CND)
! F902 1-532-465-31 FUSE, TIME-LAG (T3.15AL/250V) (AUS)
! F902 1-533-619-11 FUSE, SEMI-LAG (4A/250V) (US,CND)
IC303 8-759-820-22 IC LA4597
Q308 8-729-021-82 TRANSISTOR 2SD2396K
Q310 8-729-141-83 TRANSISTOR 2SB1094-LK
! T901 1-431-972-11 TRANSFORMER, POWER (AUS)
! T901 1-431-973-11 TRANSFORMER, POWER (US,CND)
