Sony PMC-107 - Upper Cabinet Section

– 50 –
SW701
#1
#6
#1
#1
KSM-213CDM
101
102
105
106
108
110
109
103
104 115
113
113
116
116
114
114
116
116
107
112
111

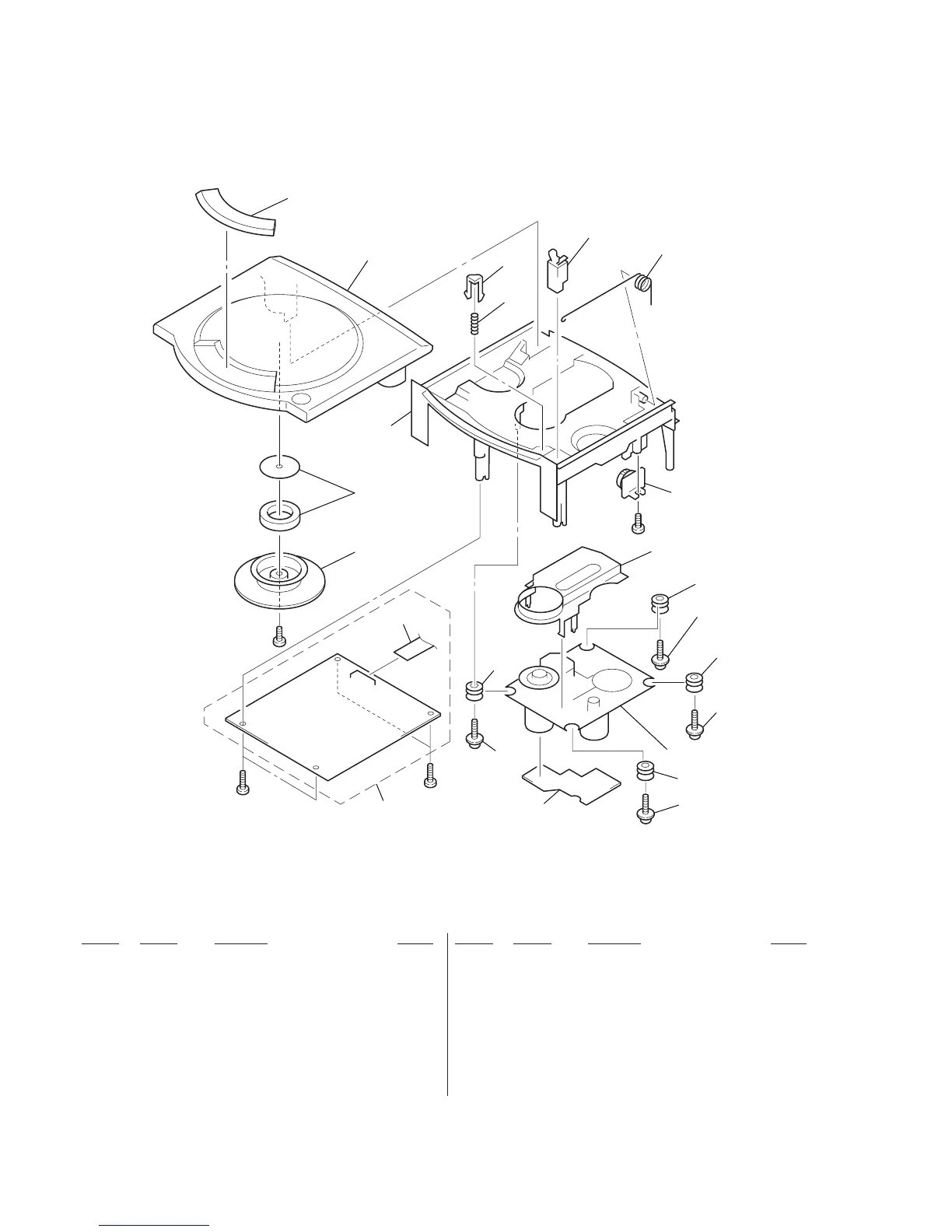

6-3. UPPER CABINET SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-025-506-01 WINDOW, CD
102 3-025-505-01 LID, CD
103 1-452-732-11 MAGNET
104 3-021-020-01 PLATE (DIA. 70), CHUCKING
105 3-026-314-01 BRACKET (LIFT)
106 3-026-325-01 SPRING (COMP)
* 107 1-639-678-12 CD MOTOR BOARD
108 3-026-315-01 SPRING, CD UP
109 3-025-504-01 CABINET (UPPER)
110 3-351-377-01 DAMPER
* 111 A-3321-446-A CD BOARD, COMPLETE
112 1-769-824-11 WIRE (FLAT TYPE) (16 CORE)
113 3-022-370-01 RUBBER, VIBRATION PROOF
114 3-022-370-11 RUBBER, VIBRATION PROOF
115 3-923-736-01 COVER, CD
116 3-916-006-01 SCREW (2.6X16)
SW701 1-692-960-11 SWITCH, PUSH (CD DOOR)
