Sony PMC-107 - 2 Disassembly; Front Cabinet Assy

– 8 –
• The equipment can be removed using the following procedure.
Set Front cabinet assy CD chassis assy Main board
Power board CD board Optical pick-up
Mechanism deck block
Control board
Note : Follow the disassembly procedure in the numerical order given.

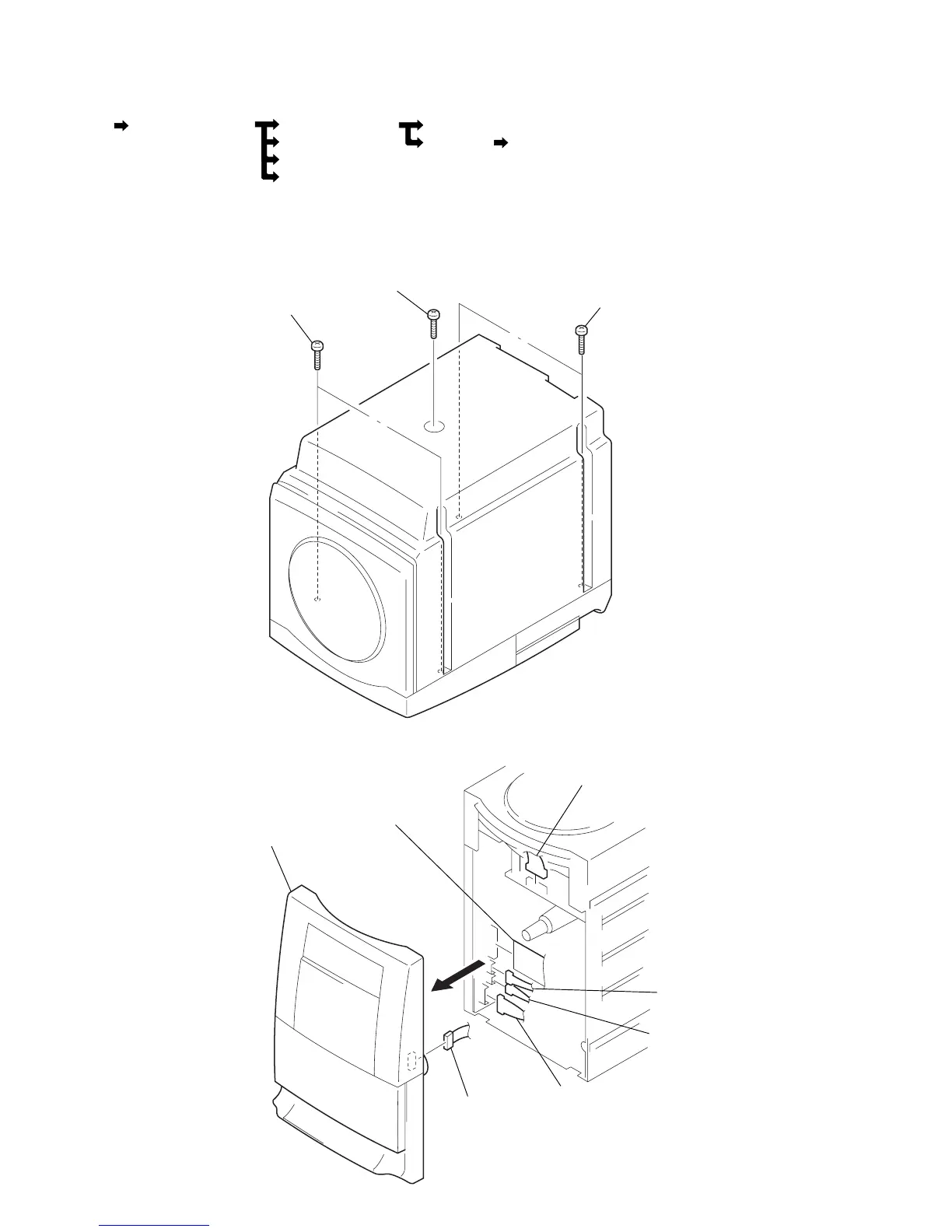

2-1. FRONT CABINET ASSY
3 BVTP 3x14
1 BVTP 3x14
2 BVTP 3x1
4
4 CNP303
5 CNP301
9 CNP702
6 CNP302
7 CNP306
8 CNP308
0 front cabinet assy
SECTION 2
DISASSEMBLY
