Sony PMC-107 - Front Cabinet Section

– 49 –
#2
#2
#2
#2
#1
#1
#5
#5
#2
#1
LCD801
D801
not supplied
not supplied
not supplied
MF-107
54
55
56
52
66
65
63
62
64
58
59
57
60
61
51
74
53
67
68
69
70
71
73

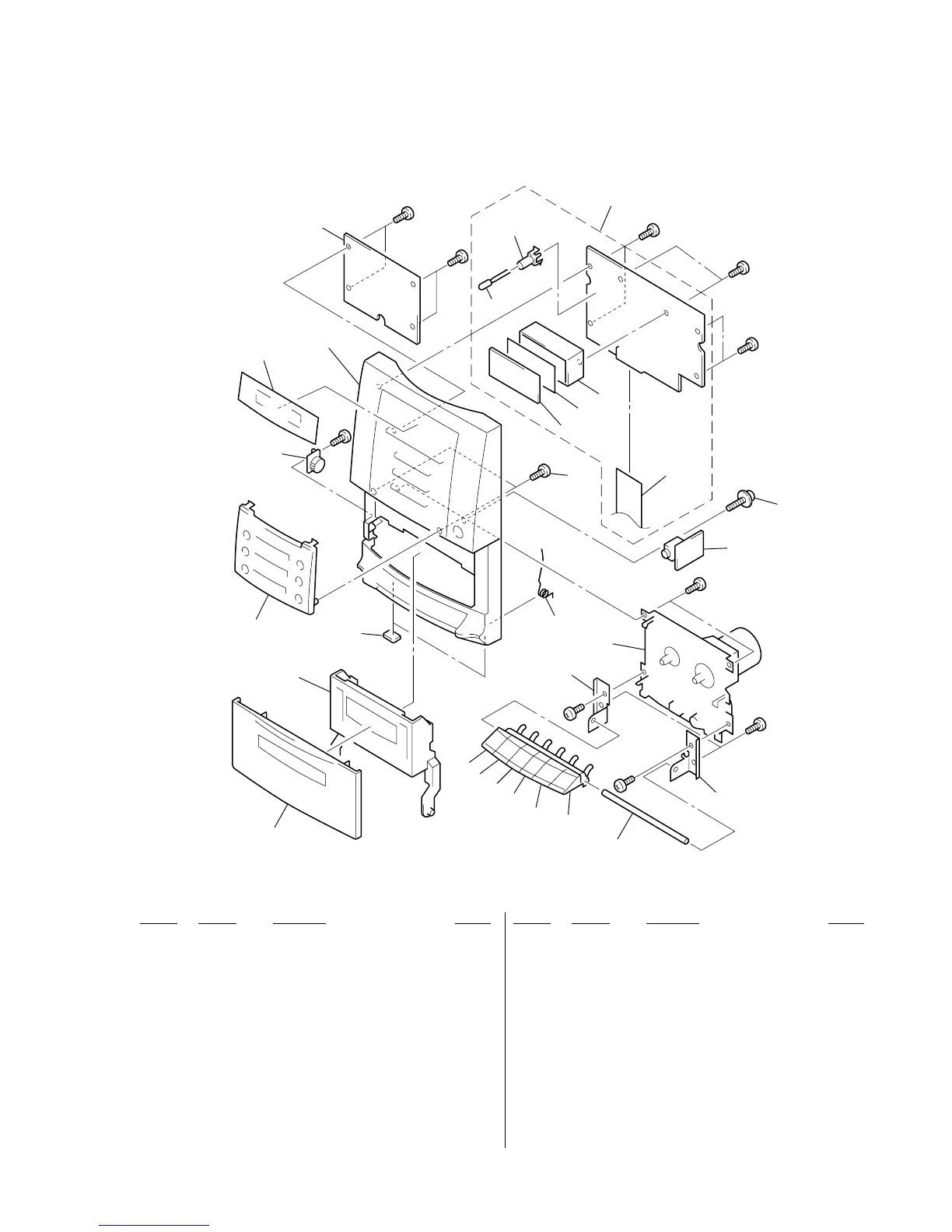

6-2. FRONT CABINET SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-025-501-01 WINDOW, LCD
52 3-026-321-01 COVER, FRONT
53 3-351-377-01 DAMPER
54 A-3320-489-A HOLDER ASSY, CASSETTE
55 3-025-499-01 HOLDER, CASSETTE
56 3-026-310-01 FOOT
* 57 A-3321-443-A CONTROL BOARD, COMPLETE
58 3-026-318-01 SHEET (LCD)
59 3-025-500-01 HOLDER, LCD
60 3-026-317-01 HOLDER, LED
* 61 1-670-423-11 KEY BOARD
62 1-783-371-11 WIRE, PARALLEL
* 63 1-670-427-11 H.P BOARD
64 4-951-620-01 SCREW (2.6X8), +BVTP
65 3-026-322-01 SPRING, CASSETTE UP
66 3-025-508-01 BUTTON (REC)
67 3-025-511-01 BUTTON (PLAY)
68 3-025-509-01 BUTTON (FF)
69 3-025-510-01 BUTTON (REW)
70 3-025-512-01 BUTTON (STOP)
71 3-025-507-01 BUTTON (PAUSE)
73 4-960-167-01 SCREW (3X8) (DIA.10)
74 X-3379-137-1 CABINET (FRONT) SUB ASSY
D801 8-719-989-85 LED SLR34VR3FM.N (OPERATION)
LCD801 1-803-230-11 DISPLAY PANEL, LIQUID CRYSTAL
Ver 1.1 2000. 02
