Sony PS-LX300USB Service Manual

PS-LX300USB
3

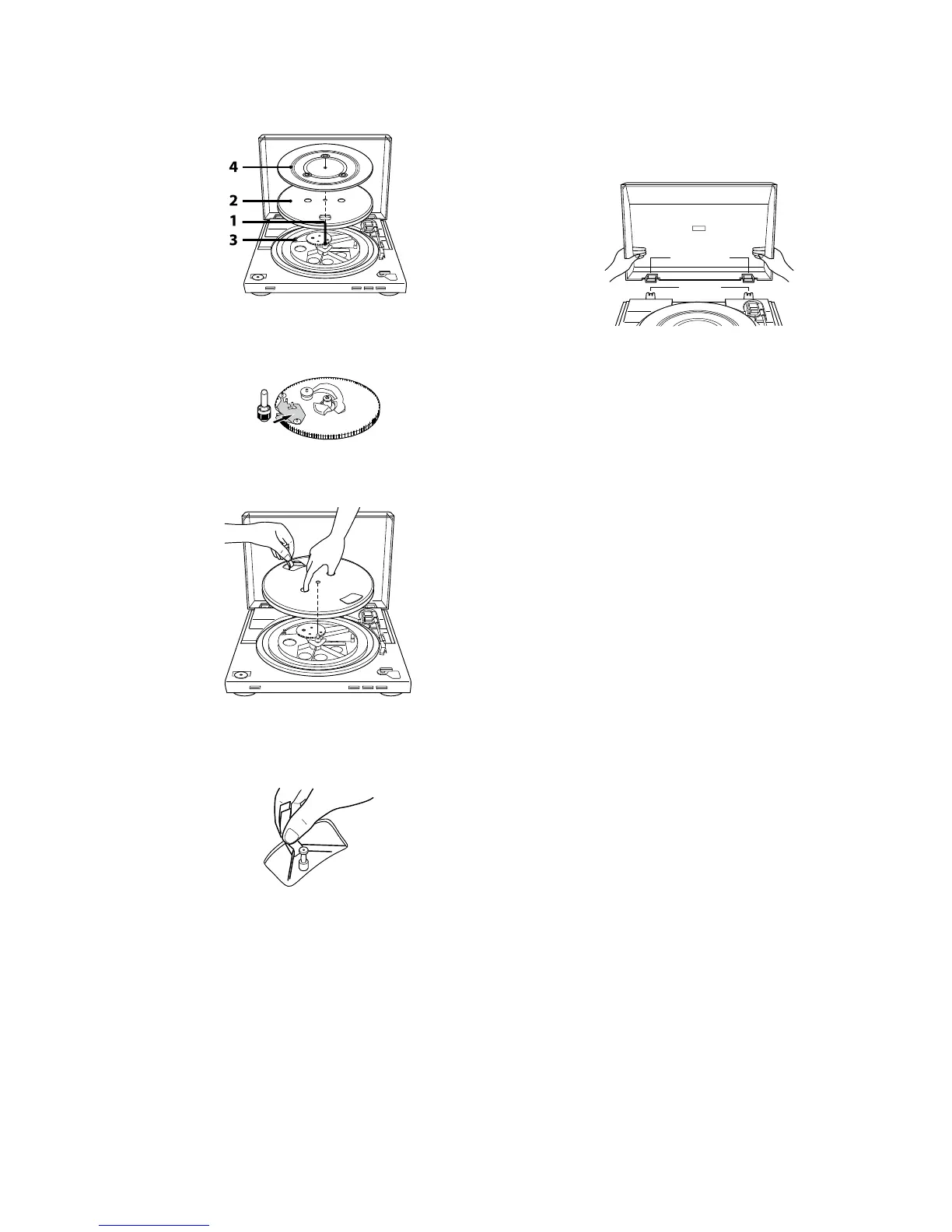

ASSEMBLING THE TURNTABLE
1 Move the metallic parts inside the
larger gear in the direction of the
arrow.
2 Carefully place the platter on the
spindle.
3 Using the ribbon, loop the drive belt
around the motor pully.
Aer looping the belt, do not forget to
remove the ribbon.
4 Place the rubber mat on the platter.
Note
When the AC power cord is plugged aer assembling or
moving the turntable, the turntable sometimes rotates
and the torn arm descends to the platter even if START
is not pressed.
If this occurs, press STOP to return the tone arm to the
arm stand.
To remove the dust cover
With the dust cover fully opened, grasp both
sides of the cover, then remove it carefully.
Tip
You can use the turntable leaving the dust cover removed.
In that case, store the cover correctly.
To install the dust cover
Insert the hinge pockets on the dust cover into
the hinges on the rear of the cabinet.
Hinge pocket
Hinge

Sony PS-LX300USB Specifications

General

Type	Belt-drive audio turntable
Interface	USB2.0, RCA
Operation	Automatic
Stylus type	mm
Belt material	Rubber
Plug and Play	Yes
Product color	Black, Silver
Wow & flutter	0.25 %
Nominal speeds	33 1/3, 45 RPM
Turntable size	295 mm
Stylus pressure	3.5 g
Pick-up arm type	S-Shape
Platter material	Aluminum
Pick-up arm length	195 mm
Signal-to-Noise Ratio (SNR)	50 dB
Cables included	USB
USB version	2.0
USB ports quantity	1
Playback formats	MP3
Power supply type	AC
AC adapter frequency	50 / 60 Hz
AC adapter input voltage	230 V
Power consumption (typical)	2 W
Package weight	4000 g
Compatible operating systems	- Windows XP Home Edition Service Pack 2 / XP Professional Service Pack 2\\r - Windows Vista Home Basic / Vista Home Premium / Vista Business / Vista Ultimate\\r - Windows 7 Home Premium / 7 Professional / 7 Ultimate

Weight and Dimensions

Depth	360 mm
Width	420 mm
Height	95 mm
Weight	3300 g
Product dimensions (WxHxD)	420 x 360 x 95 mm
