Sony PS-LX300USB Service Manual

PS-LX300USB
6

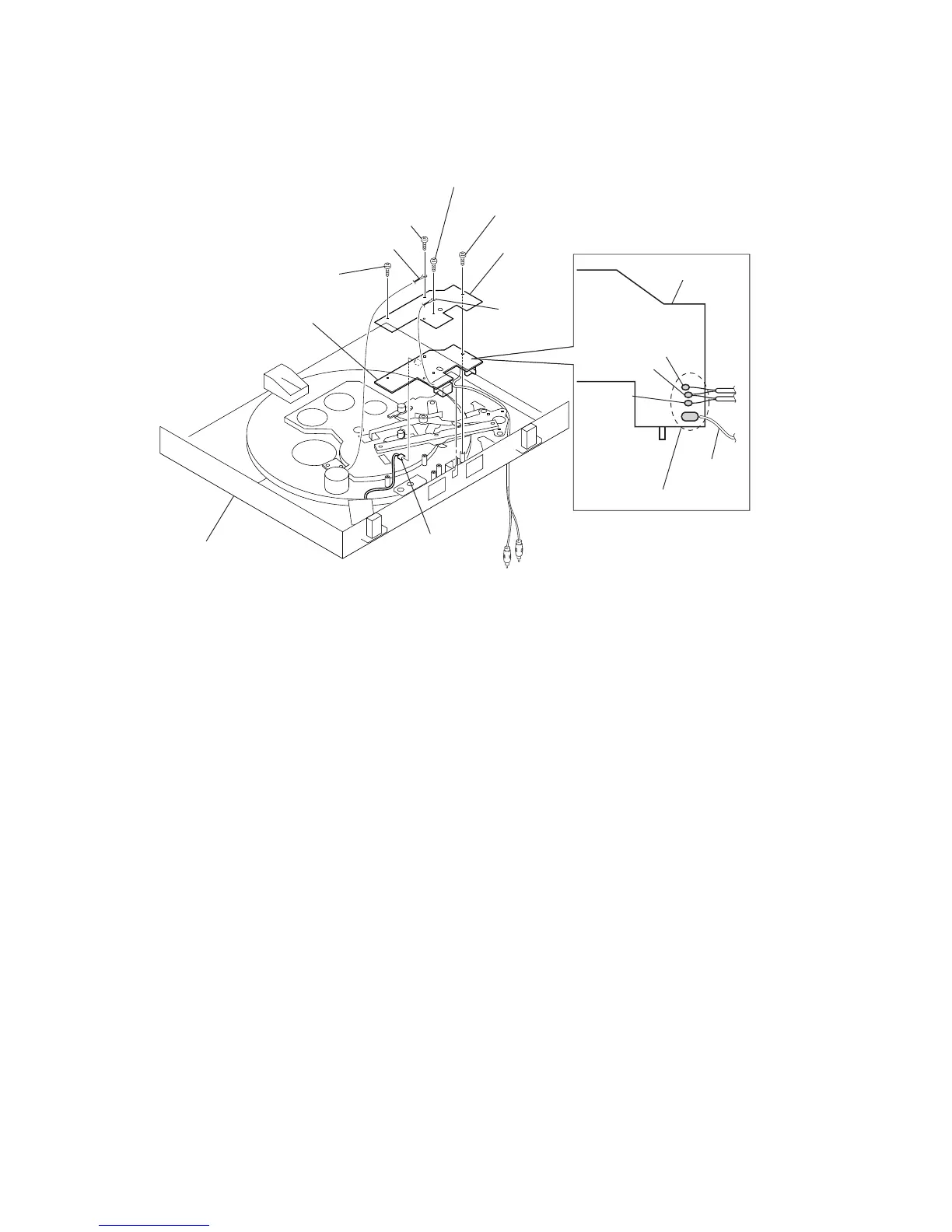

3-3. USB BOARD
Note: This illustration is seeing panel block from the base side.

screw
(PTPWH3
×
8)

screw
(PTPWH3
×
8)

screw
(PTPWH3
×
8)

screw
(PTPWH3
×
8)

segregate sheet

harness

harness

connector
(CN602)
panel block

USB board

four solders
red
GND
white
USB board
black
Ver. 1.1

Sony PS-LX300USB Specifications

General

Type	Belt-drive audio turntable
Interface	USB2.0, RCA
Operation	Automatic
Stylus type	mm
Belt material	Rubber
Plug and Play	Yes
Product color	Black, Silver
Wow & flutter	0.25 %
Nominal speeds	33 1/3, 45 RPM
Turntable size	295 mm
Stylus pressure	3.5 g
Pick-up arm type	S-Shape
Platter material	Aluminum
Pick-up arm length	195 mm
Signal-to-Noise Ratio (SNR)	50 dB
Cables included	USB
USB version	2.0
USB ports quantity	1
Playback formats	MP3
Power supply type	AC
AC adapter frequency	50 / 60 Hz
AC adapter input voltage	230 V
Power consumption (typical)	2 W
Package weight	4000 g
Compatible operating systems	- Windows XP Home Edition Service Pack 2 / XP Professional Service Pack 2\\r - Windows Vista Home Basic / Vista Home Premium / Vista Business / Vista Ultimate\\r - Windows 7 Home Premium / 7 Professional / 7 Ultimate

Weight and Dimensions

Depth	360 mm
Width	420 mm
Height	95 mm
Weight	3300 g
Product dimensions (WxHxD)	420 x 360 x 95 mm
