7
PS-LX300USB
SECTION 4
EXPLODED VIEWS AND ACCESSORIES
1 4-215-536-01 SCREW=PTPWH 3X12 W10 STEP
2 9-885-117-64 POWER BOARD, COMPLETE
3 4-215-531-01 SCREW=PTPWH 3X8 W8
0 4 9-885-117-02 TRANSFORMER (CEL), POWER
(AEP, UK, Australian)
0 4 9-885-117-66 TRANSFORMER (US), POWER (US, Canadian)
5 9-885-117-69 CENTER & PINION ASSY
6 9-885-117-87 BELT (Drive belt)
7 9-885-117-85 TURN TABLE (Platter)
8 9-885-117-86 PAD, RUBBER (Rubber mat)
9 9-885-117-71 DUSTCOVER
10 9-885-117-82 RUBBER FOOT FOR DUSTCOVER
11 9-885-117-84 45 RPM ADAPTER (45 r/min adaptor)
0 12 9-885-117-93 CORD, POWER (US) (US, Canadian)
0 12 9-885-117-96 CORD, POWER (CEL) (AEP)
0 12 9-885-117-97 CORD, POWER (CEK) (UK)
0 12 9-885-117-98 CORD, POWER (AU) (Australian)
13 9-885-117-92 CORD, CONNECTION
14 4-215-534-01 SCREW=PTPWH 3X16 W8
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color

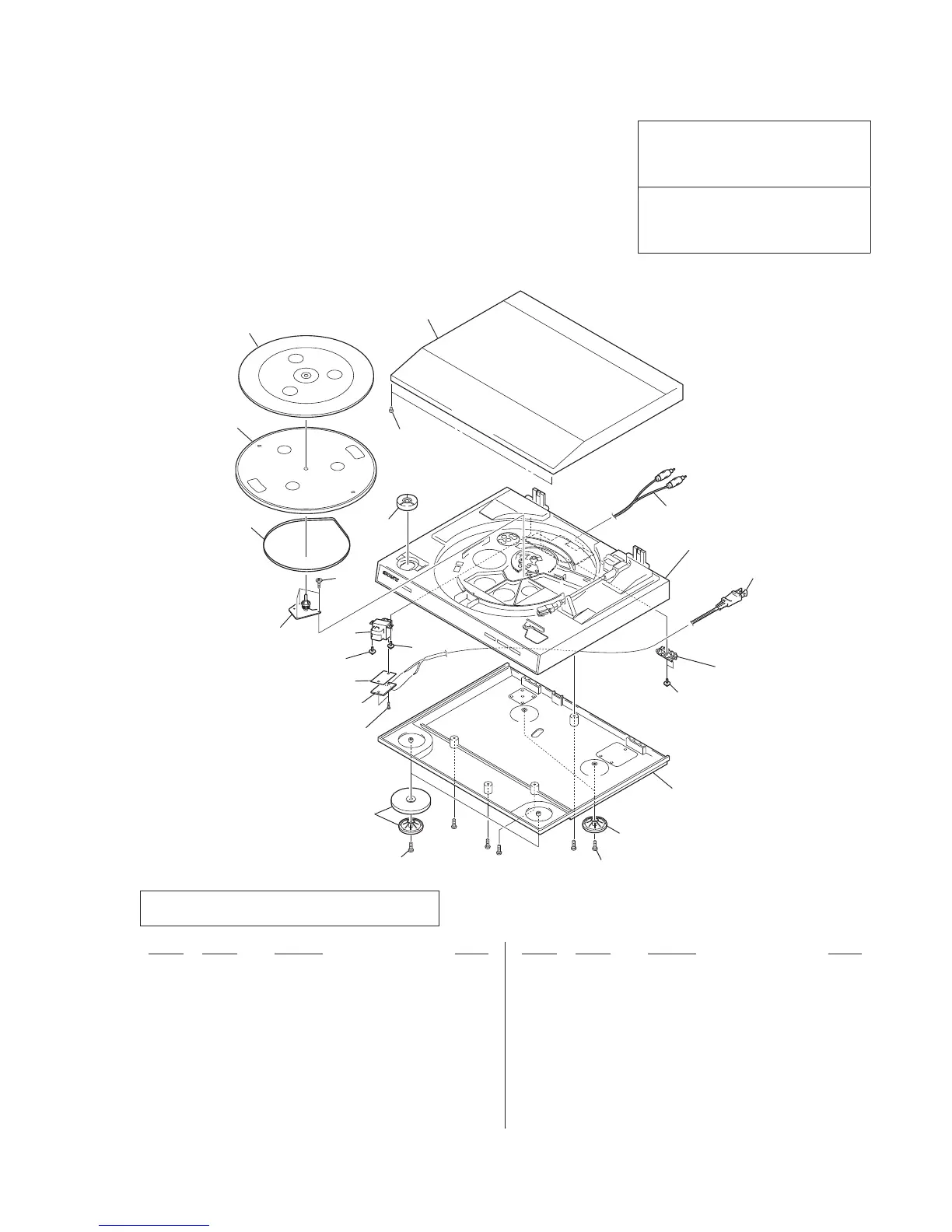

4-1 OVERALL SECTION
9
8
7
6
5
3
4
3
3
11
10
12
13
14
1
1
2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
USB board section
Note: When POWER board failed, please change the
board entirely.
Ver. 1.1
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
To Next Page
