Sony PS-LX300USB Service Manual

8
PS-LX300USB
51 4-215-538-01 SCREW PS 3X12
52 4-215-530-01 NUT M9 HEX 11
53 4-215-532-01 SCREW=PTPWH 3X8 W10
54 9-885-117-63 USB BOARD, COMPLETE
55 4-215-523-01 COLLAR (D6D8X1.5)
56 9-885-117-68 GEAR ASSY, CAM
57 9-885-117-75 STYLUS (N-6516)
58 9-885-117-76 CARTRIDGE
59 9-885-117-72 TONEARM ASSY
60 4-215-520-01 SCREW BVTT 3X20
61 4-215-539-01 SCREW=PTPWH 3X7 W10
62 4-215-540-01 SCREW=BVTPW 3X10 W13
63 4-215-562-01 WASHER D3.2 W13
64 4-215-576-01 SCREW=PTPWH 3X10 W10
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

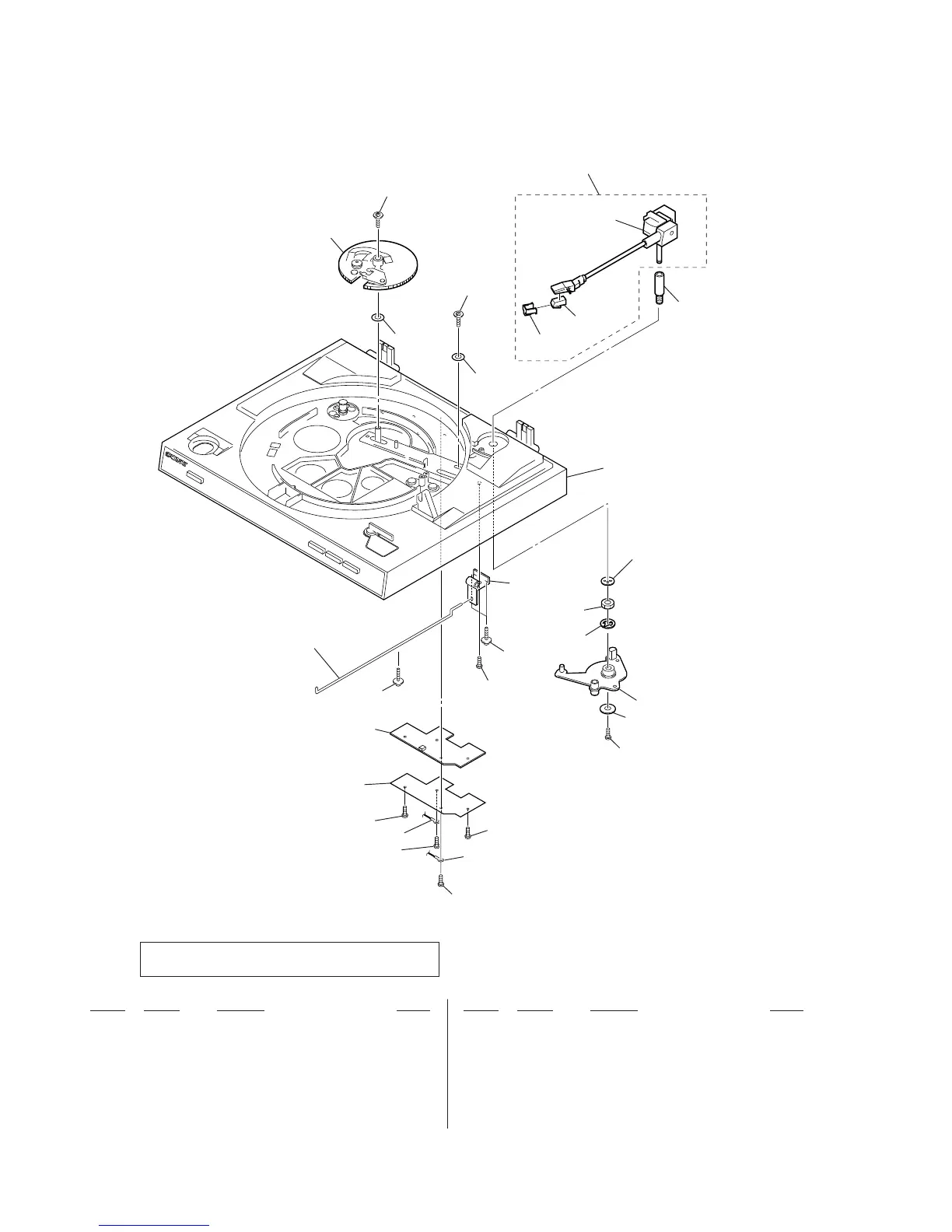

4-2 USB BOARD SECTION
51
63
52
57
58
59
56
61
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
knob section
54
53
53
53
53
55
62
55
60
62
64
Note: When USB board failed, please change the board
entirely.
Ver. 1.1

Sony PS-LX300USB Specifications

General

Type	Belt-drive audio turntable
Interface	USB2.0, RCA
Operation	Automatic
Stylus type	mm
Belt material	Rubber
Plug and Play	Yes
Product color	Black, Silver
Wow & flutter	0.25 %
Nominal speeds	33 1/3, 45 RPM
Turntable size	295 mm
Stylus pressure	3.5 g
Pick-up arm type	S-Shape
Platter material	Aluminum
Pick-up arm length	195 mm
Signal-to-Noise Ratio (SNR)	50 dB
Cables included	USB
USB version	2.0
USB ports quantity	1
Playback formats	MP3
Power supply type	AC
AC adapter frequency	50 / 60 Hz
AC adapter input voltage	230 V
Power consumption (typical)	2 W
Package weight	4000 g
Compatible operating systems	- Windows XP Home Edition Service Pack 2 / XP Professional Service Pack 2\\r - Windows Vista Home Basic / Vista Home Premium / Vista Business / Vista Ultimate\\r - Windows 7 Home Premium / 7 Professional / 7 Ultimate

Weight and Dimensions

Depth	360 mm
Width	420 mm
Height	95 mm
Weight	3300 g
Product dimensions (WxHxD)	420 x 360 x 95 mm
