9
PS-LX300USB
101 9-885-117-78 PENDULUM (L)
102 4-215-533-01 SCREW=PTPWH 3X12 W8
103 4-215-526-01 SPRING
104 9-885-117-67 SET ASSY, KNOB SHAFT (&)
105 9-885-117-74 KNOB, PLAY STOP
106 9-885-117-81 LIFTER
107 4-215-535-01 SCREW=PTP 3X8
108 9-885-117-77 FIXING SWITCH SET
109 4-215-537-01 SCREW=PTPWH 3X10 W8
110 9-885-117-70 SHAFT ASSY
111 9-885-117-83 CONTROL PLATE
112 9-885-117-79 PENDULUM (M)
113 9-885-117-80 KNOB SET
114 4-215-540-01 SCREW=BVTPW 3X10 W13
115 4-215-541-01 SCREW (F 3X6.5) STEP
116 4-215-542-01 SCREW=PTP 2.6X8
117 9-885-117-03 ADAPTOR BOARD, COMPLETE
118 4-215-532-01 SCREW=PTPWH 3X8 W10
119 4-216-509-01 HINGE
120 4-216-534-01 HINGE PIN
121 4-216-510-01 HINGE SLIDE
122 4-216-536-01 HINGE SPRING
M1 9-885-117-73 MOTOR ASSY (TURN TABLE)
S1 9-885-117-88 SWITCH, LEAF (SPEED SETTING)
S2 9-885-117-88 SWITCH, LEAF (TONE ARM UP/DOWN DETECT)
S3 9-885-117-89 SWITCH, LEAF (TONE ARM TURN DETECT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

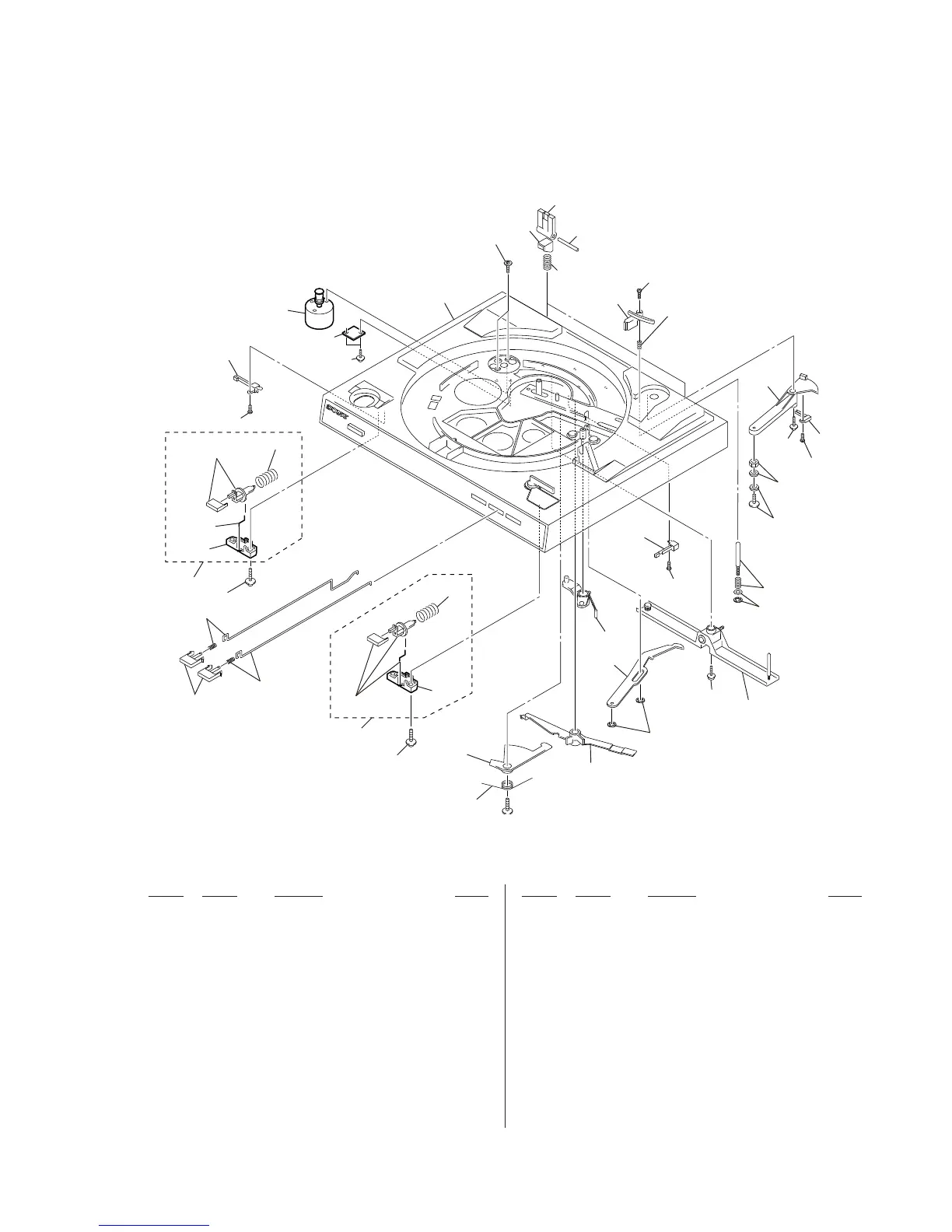

4-3 KNOB SECTION
103
103
113
104
102
101
111
112
110
106
107
109
109
108
102
105
115
116
S1
S3
S2
M1
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
116
116
not supplied
not supplied
not
supplied
not
supplied
104
not supplied
113
118
117
121
120
119
122
Ver. 1.2
