Sony PS-LX40 - Location and Function of Controls

PS-LX40/LX40P/LX43P/LX44P

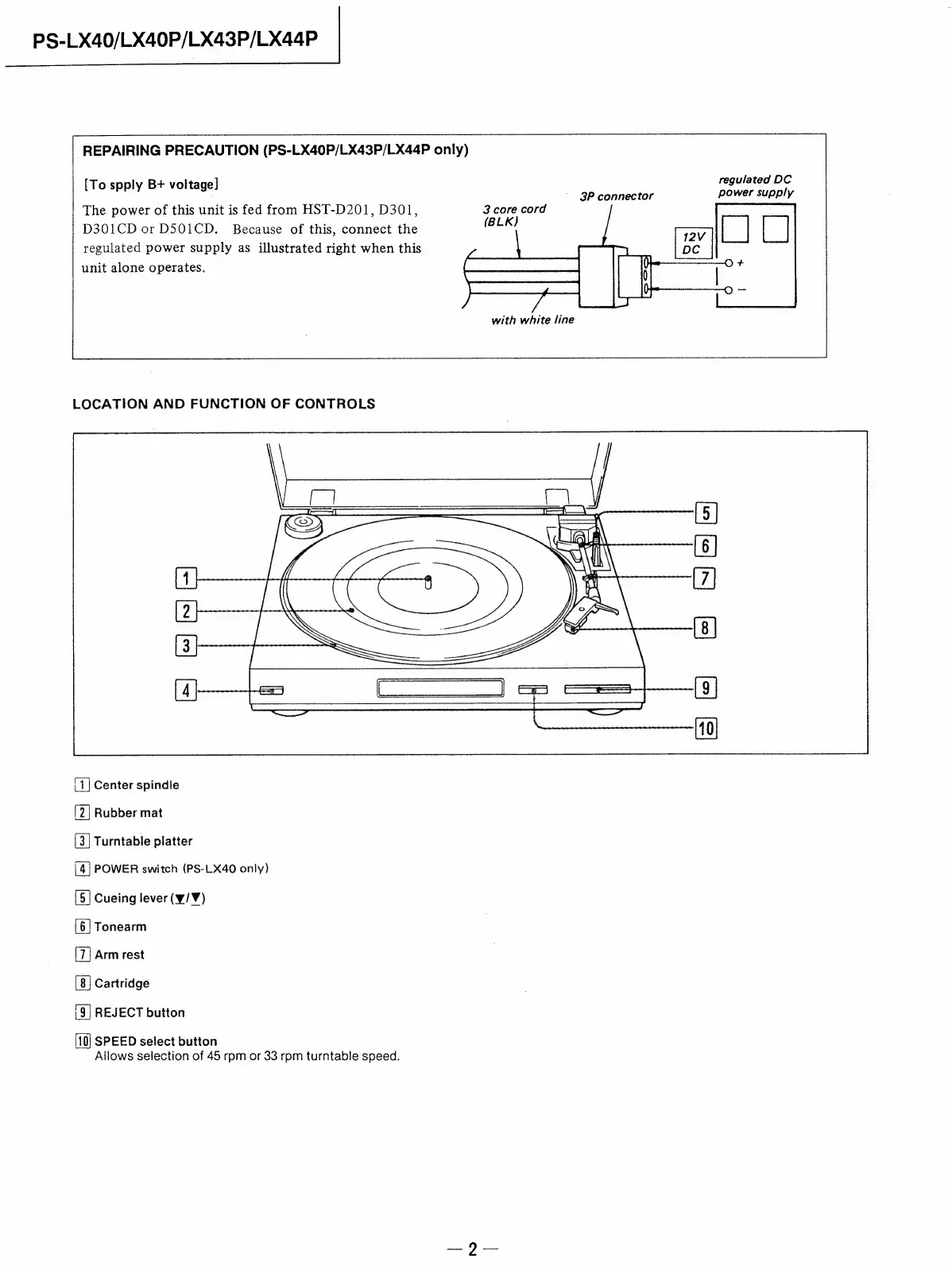

REPAIRING PRECAUTION (PS-LX40P/LX43P/LX44P only)
[To
spply
B+
voltage]
regulated
DC
3P
connector
power
supply
The
power
of
this
unit
is
fed
from
HST-D201,
D301,
3
core
cord
D301CD or DS501CD. Because of this, connect the
regulated power supply as illustrated right when this
unit alone operates.
with white line
LOCATION AND FUNCTION OF CONTROLS
[1] Center spindle
(2] Rubber mat
(3] Turntable platter
[4] POWER switch (PS-LX40 only)
[5 | Cueing lever (y/¥)
(6] Tonearm
Arm rest
Cartridge
(9] REJECT button
[10] SPEED select button
Allows selection of 45 rpm or 33 rom turntable speed.
