Sony PS-LX40 - Page 5

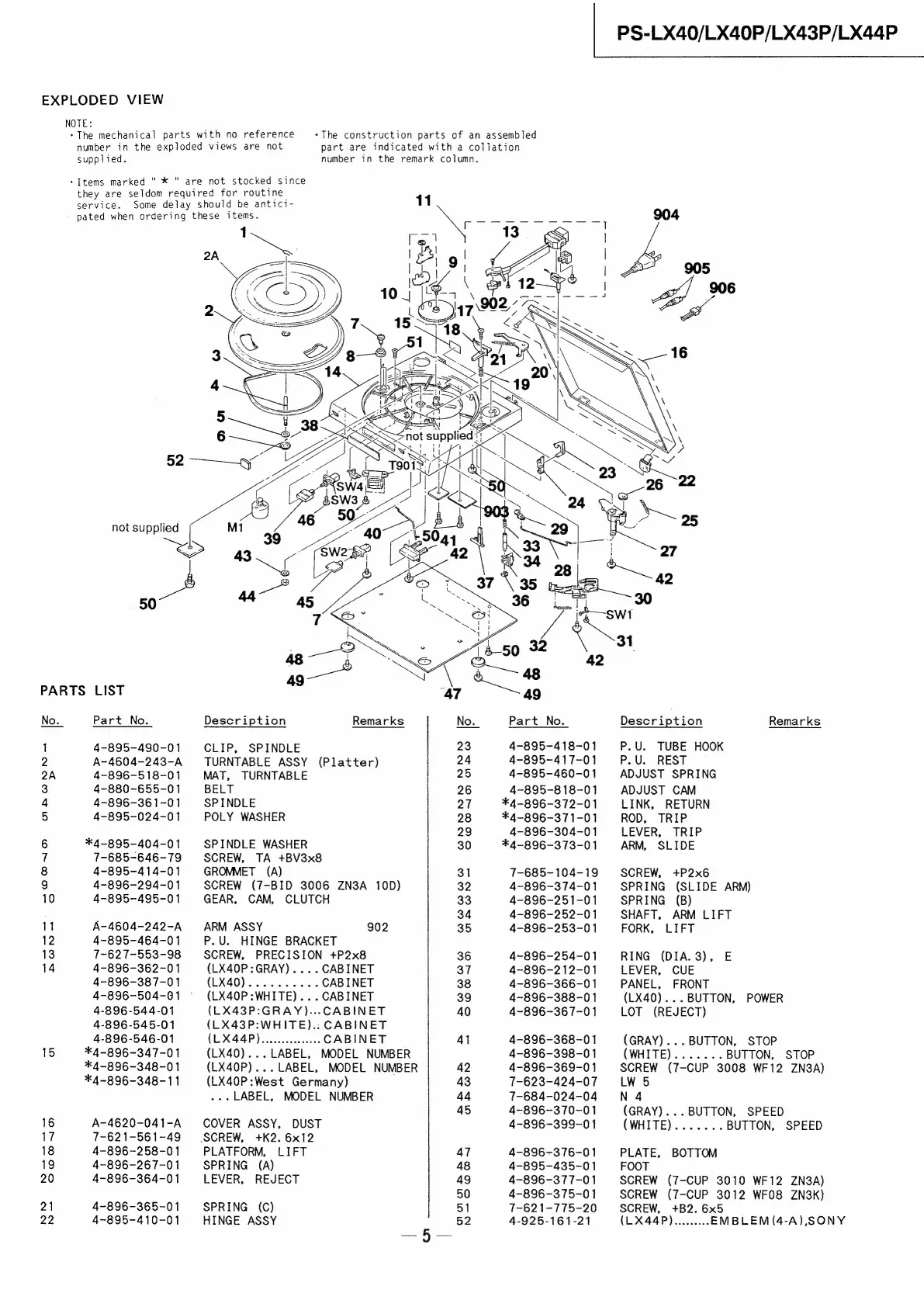

EXPLODED VIEW
PARTS LIST
NOTE:
*The mechanical parts with no reference
number in the exploded views are not
supplied.
*Items marked "* ”" are not stocked since
they are seldom required for routine
*The construction parts of an assembled
part are indicated with a collation
number in the remark column,
service.
Some delay should be antici-
- pated when ordering these items.
Part No. Description Remarks No Part No.
4-895-490-01 CLIP, SPINDLE 23 4-895-418-01
A-4604-243-A | TURNTABLE ASSY (Platter) 24 4-895-417-01
4-896-518-01 MAT, TURNTABLE 25 4-895-460-01
4~880-655-01 BELT 26 4-895-8 18-01
4-896-361-01 SPINDLE 27 *4-896-372-01
4-895-024-01 POLY WASHER 28 *4-896~-371-01
29 4-896-304-01
*4-895-404-01 SPINDLE WASHER 30 *4-896-373-01
7-685-646-79 SCREW, TA +BV3x8
4~895-414-01 GROMVET (A) 31 7-685-104-19
4-896-294-01 SCREW (7-BID 3006 ZN3A 10D) 32 4-896~-374-01
4-895-495-01 GEAR, CAM, CLUTCH 33 4-896-251-01
34 4-896-252-01
A-4604-242-A | ARM ASSY 902 35 4~896-253-01
4-895-464-01 P.U. HINGE BRACKET
7-627-553-98 SCREW, PRECISION +P2x8 36 4-896-254-01
4-896-362-01 (LX40P:GRAY).... CABINET 37 4~896-212-01
4~896-387-01 (UMA) sooned aeces CABINET 38 4-896-366-01
4-896-504-01 (LX40P :WHITE)... CABINET 39 4~896-388-01
4-896-544-01 (LX43P:GRAY)...CABINET 40 4-896~-367-01
4-896-545-01 (LX43P:WHITE).: CABINET
4-896-546-01 (LX44P) oe CABINET 41 4-896-368-01
*4-896-347-01 (LX40)... LABEL, MODEL NUMBER 4-896-398-01
*4-896-348-01 (LX40P)...LABEL, MODEL NUMBER 42 4-896-369-01
*4-896-348-11 (LX40P:West Germany) 43 7-623-424-07
... LABEL, MODEL NUMBER 44 7-684-024-04
45 4~-896-370-01
A-4620-041-A COVER ASSY, DUST 4-896-399-01
7-621-561-49 SCREW, +K2. 6x12
4-896-258-01 PLATFORM, LIFT 47 4-896-376-01
4-896-267-01 SPRING (A) 48 4-895-435-01
4-896-364-01 LEVER, REJECT 49 4-896-377-01
50 4-896-375-01
4-896-365-01 SPRING (C) 51 7-621-775-20
4-895-410-01 HINGE ASSY 52 4-925-161-21
PS-LX40/LX40P/LX43P/LX44P
Remarks
Description
P.U. TUBE HOOK
P.U. REST
ADJUST SPRING
ADJUST CAM
LINK, RETURN
ROD, TRIP
LEVER, TRIP
ARM, SLIDE
SCREW, +P2x6
SPRING (SLIDE ARM)
SPRING (B)
SHAFT, ARM LIFT
FORK, LIFT
RING (DIA.3), E
LEVER, CUE
PANEL, FRONT
(LX40)... BUTTON, POWER
LOT (REJECT)
(GRAY)... BUTTON, STOP
(WHT T Ehcrste See BUTTON, STOP
SCREW (7-CUP 3008 WF12 ZN3A)
LW 5
N 4
(GRAY)... BUTTON, SPEED
(WHITE) 06.0045 BUTTON, SPEED
PLATE, BOTTOM
FOOT
SCREW (7-CUP 3010 WF12 ZN3A)
SCREW (7-CUP 3012 WFO8 ZN3k)
SCREW, +B2. 6x5
(LX44P)......... EMBLEM (4-A),SONY
