Sony PS-Q7 User Manual

PRECAUTIONS
On safety
@ Before operating the unit, be sure that the operating voitage of
your unit is identical with that of your local power supply.
@Should any solid object or tiquid fall into the cabinet, unplug the
unit and have it checked by qualified personnel before operating it
any further.
@Unplug the unit from the wall outlet if it is not to be used for an
extended period of time. To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
@ The unit is not disconnected from the ac power source (mains) as
long as it is connected to the wall outlet, even if the unit itself has
been turned off.

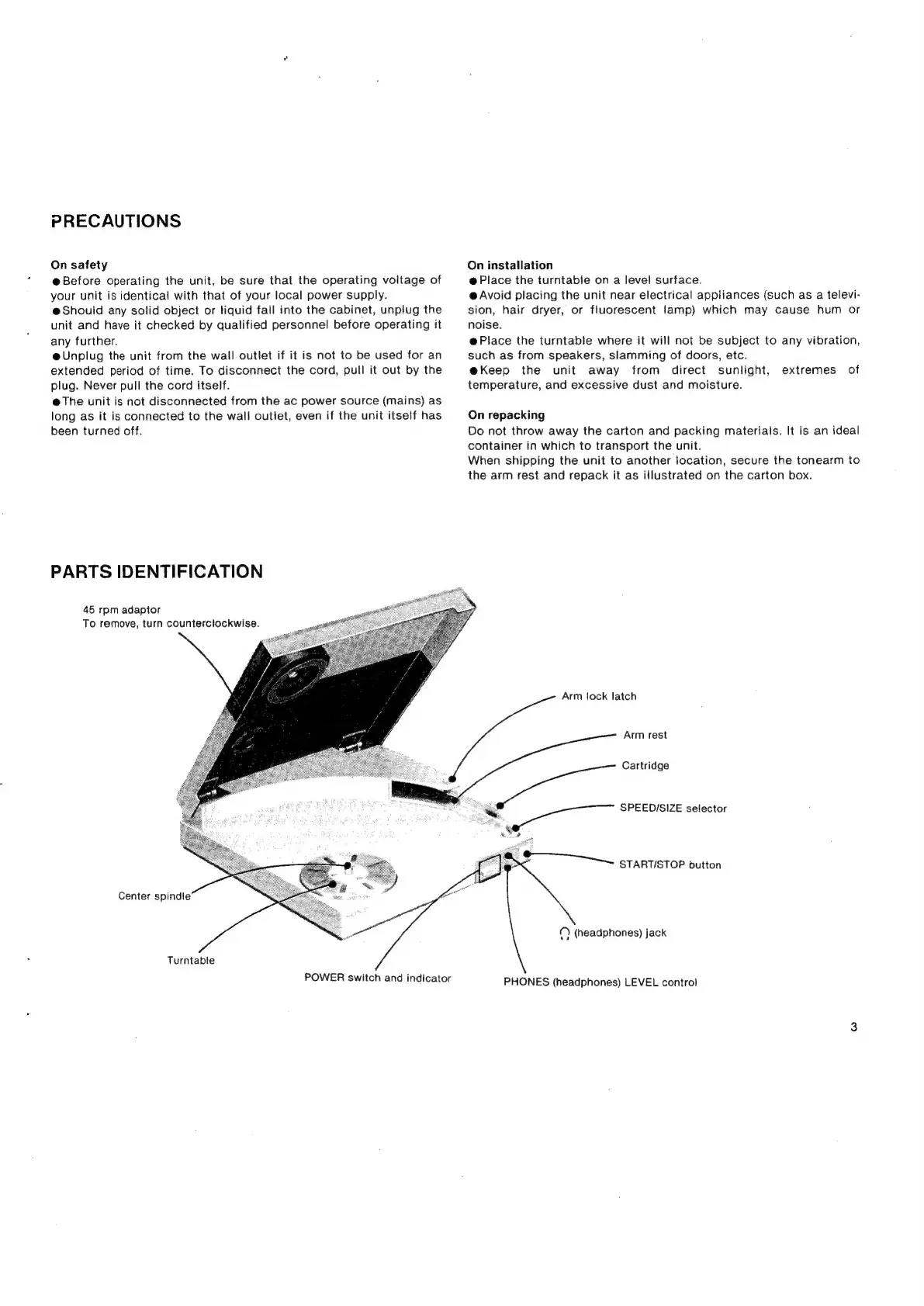

PARTS IDENTIFICATION
45 rpm adaptor
To remove, turn counterclockwise.
Center spindle
Turntable
POWER switch and indicator
On installation
@ Place the turntable on a level surface.
@ Avoid placing the unit near electrical appliances (such as a televi-
sion, hair dryer, or fluorescent lamp) which may cause hum or
noise.
@Place the turntable where it will not be subject to any vibration,
such as from speakers, slamming of doors, etc.
e@eKeep the unit away from direct sunlight,
temperature, and excessive dust and moisture.
extremes of
On repacking
Do not throw away the carton and packing materials. It is an ideal
container in which to transport the unit.
When shipping the unit to another jocation, secure the tonearm to
the arm rest and repack it as illustrated on the carton box.
Arm tock latch
Arm rest
Cartridge
SPEEDISIZE selector
o-— startistop button
© (headphones) jack
PHONES (headphones) LEVEL control

Sony PS-Q7 Specifications

Motor and Drive System

motor type	Linear torque BSL (brushless and slotless)
drive system	Direct drive
control system	Magnedisc servo control system

Turntable Performance

speed	33 1/3 rpm, 45 rpm
wow and flutter	0.08% (WRMS)
signal-to-noise ratio	68 dB (DIN-B)

Tonearm and Cartridge

tonearm type	Dynamic balanced, low mass type
cartridge type	Moving magnet type
tracking force	29

Amplifier and Outputs

output type	PHONO OUT, Stereo minijack
headphone output	Stereo minijack
output level	-60 dB to -23 dB (at 8 ohms load)

Power

power requirements type 1	220V ac
power requirements type 2	240V ac
power requirements type 3	110 - 120 or 220 ~ 240 V ac, adjustable
power frequency	50/60 Hz
power consumption	5 W

Weight and Dimensions

platter diameter	7.8 cm
dimensions	215 x 235 x 58 mm
weight	2.5 kg
shipping weight	3.2 kg
