PVM-2530
RM-739
SECTION 1
GENERAL

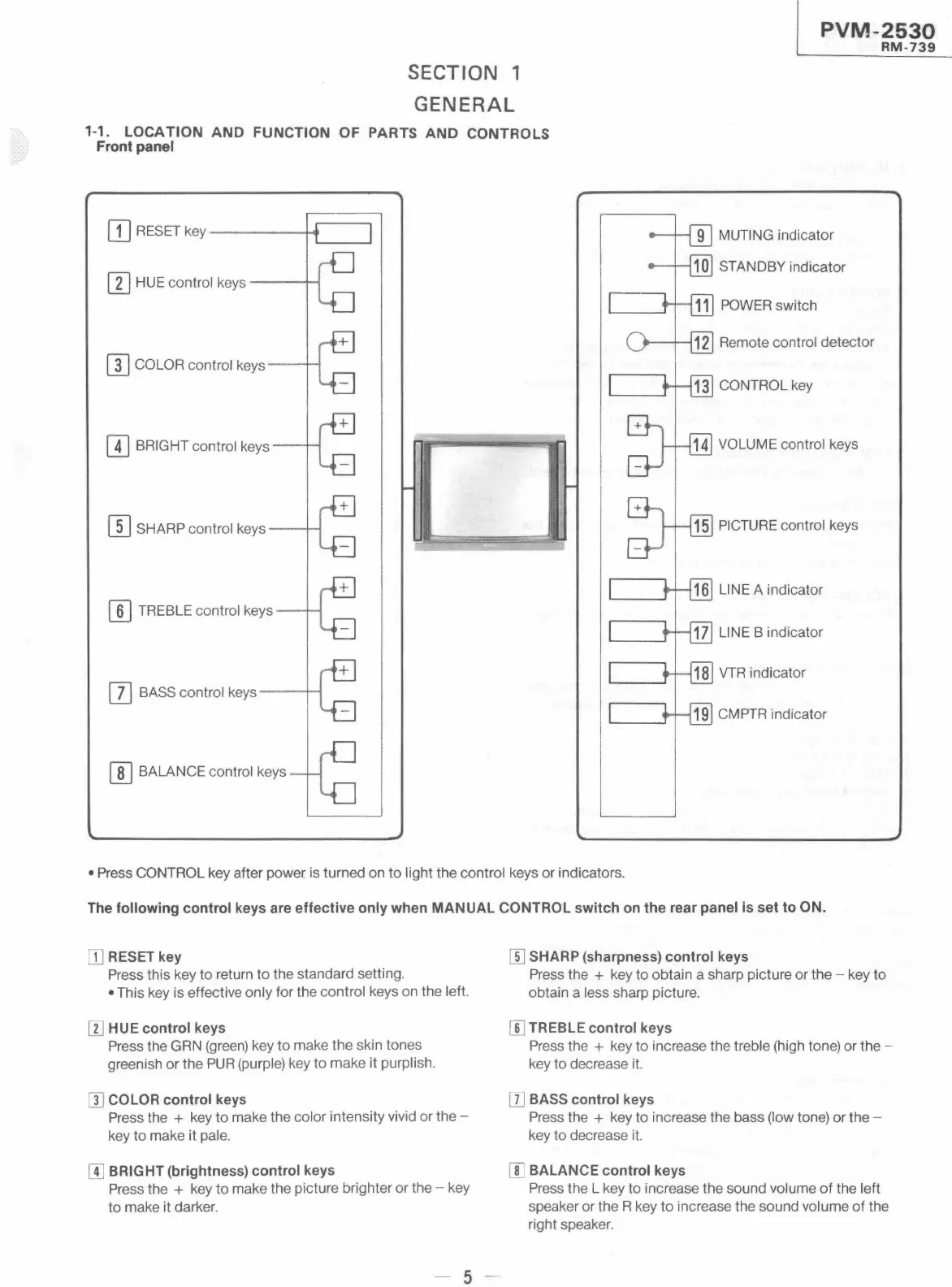

1-1. LOCATION AND FUNCTION OF PARTS AND CONTROLS
Front panel
[I] HUE control keys ----
[I] COLOR control keys ---
[!] BRIGHT control keys ---
[[] SHARP control keys --+--i
[I) TREBLE control keys
[[] BASS control keys ---
(]] BALANCE control keys
MUTING indicator
STANDBY indicator
POWER switch
Remote control detector
CONTROL key
LINE A indicator
LINE B indicator
VTR indicator
CMPTR indicator
• Press CONTROL key after power is turned on to light the control keys or indicators.
The following control keys are effective only when MANUAL CONTROL switch on the rear panel is set to ON.
[I] RESET key
Press this key to return to the standard setting.
• This key is effective only for the control keys on the left.
II] HUE control keys
Press the GRN (green) key to make the skin tones
greenish or the PUR (purple) key to make it purplish.
[I] COLOR control keys
Press the + key to make the color intensity vivid or the -
key to make it pale.
[I] BRIGHT (brightness) control keys
Press the + key to make the picture brighter or the - key
to make it darker.
- 5 -
[I] SHARP (sharpness) control keys
Press the + key to obtain a sharp picture or the - key to
obtain a less sharp picture.
[I] TREBLE control keys
Press the + key to increase the treble (high tone) or the -
key to decrease it.
[[] BASS control keys
Press the + key to increase the bass (low tone) or the -
key to decrease it.
OU BALANCE control keys
Press the L key to increase the sound volume of the left
speaker or the R key to increase the sound volume of the
right speaker.
