Sony PVM-2530 - Connecting Several Monitors

PVM-2530
RM-739

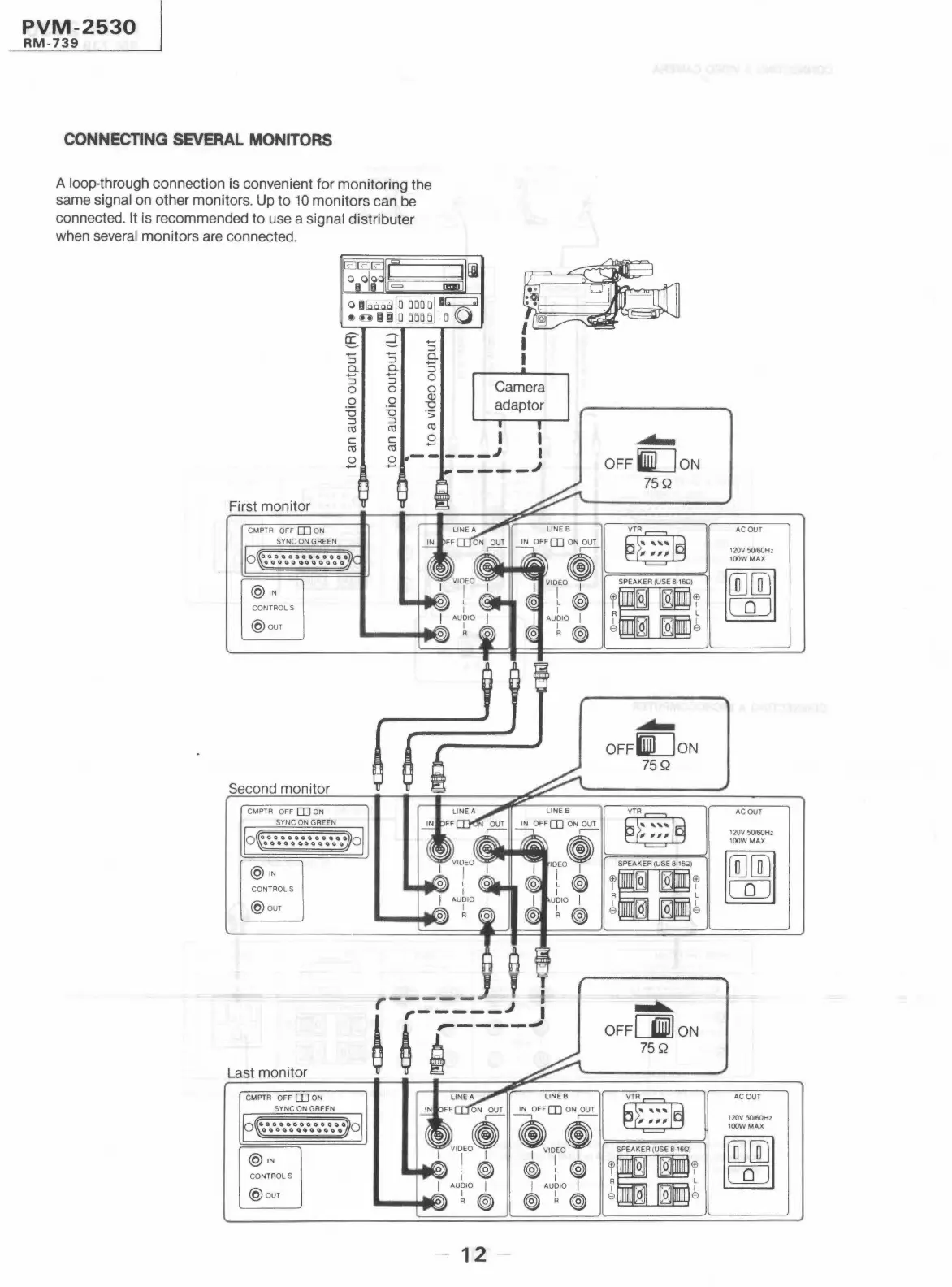

CONNECTING SEVERAL MONITORS
A loop-through connection is convenient for monitoring the
same signal on other monitors. Up to 10 monitors can be
connected. It is recommended to use a signal distributer
when several monitors are connected.
