Sony RDR-GX210 Service Manual

RDR-GX210
4-23 4-24

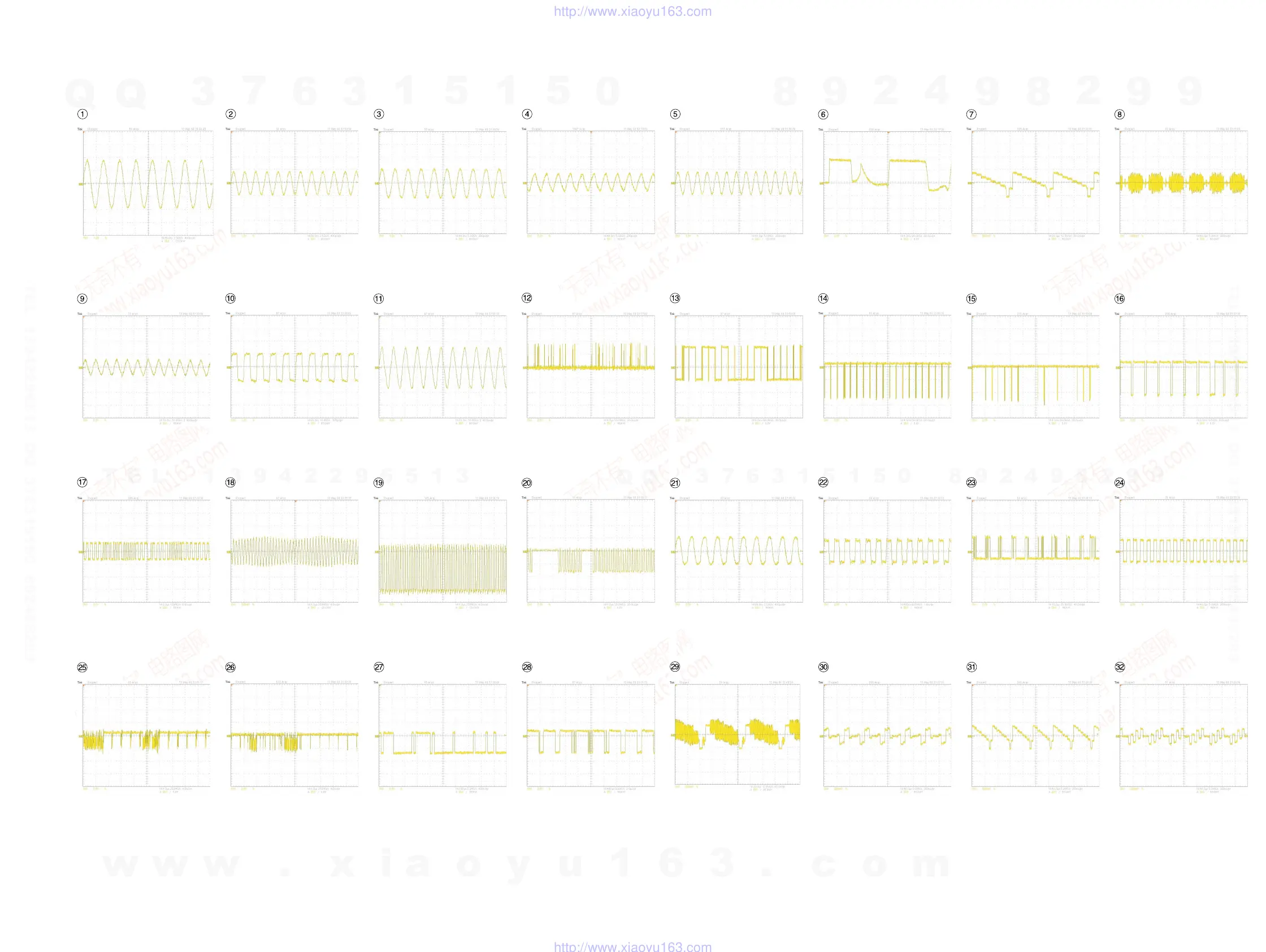

4-11. WAVEFORMS
X503
10MHz
X501
14.318MHz
X401
24.576MHz
X502
27MHz
X504
32.768M
IC502(27)
AFT
IC301(154)
Y_OUT
X503
10MHz
IC302,303(38)
SDRAM_CLK
IC401(1)
DV_CLK
IC202,203,204,205
SDRAM_CLK
IC501(43-47,50-52)
R656_DATA
IC502(89)
FLD_TXD
IC502(90)
FLD_RXD
IC502(91)
FLD_ENA
IC502(88)
FLD_CLK
IC301(235)
SPDIF
IC701(57)
SIF_OUT
CN304(25)
HM_RD
CN304(23)
HM_WR
IC301(226)
PCM_XCLK
IC301(224)
PCM_BCK
IC301(234)
PCM_DATA
IC301(222)
PCM_LRCK
IC304(28)
FLASH_OE
IC304(11)
FLASH_WE
IC301(113)
HOST_TXD
IC301(114)
HOST_RXD
IC301(257)
CVBS_OUT
IC301(211)
R_OUT
IC301(208)
G_OUT
IC301(205)
B_OUT
