5-2. I/O BOARD
: Uses unleaded solder.

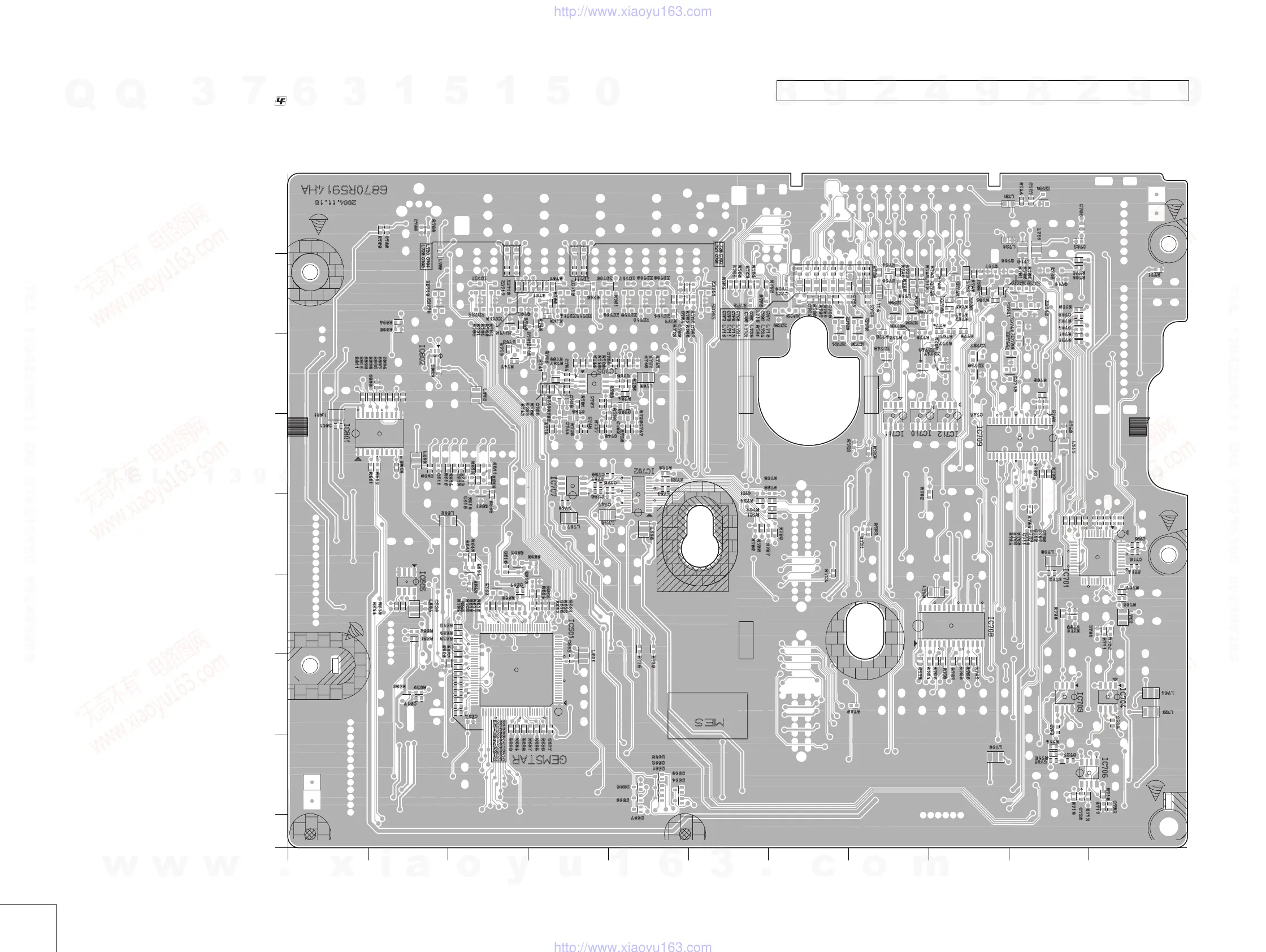

I/O BOARD (TOP)
A
B
C
05
2134 5
D
E
F
G
H
I
6 7 8 9 10 11
5-3 5-4
I/O
There are a few cases that the part isn't mounted in this model is printed on this diagram.
I/O BOARD (TOP)
D506 H-5
D701 C-4
D702 C-3
D703 B-8
D705 C-3
ZD701 B-6
ZD702 B-6
ZD703 B-5
ZD704 B-5
ZD705 B-4
ZD706 B-5
ZD707 B-5
ZD708 B-5
ZD709 B-5
ZD710 B-5
ZD711 B-4
ZD712 B-4
ZD713 B-4
ZD714 B-4
ZD715 B-3
ZD716 B-3
ZD717 B-3
ZD718 B-3
ZD719 B-2
ZD720 B-2
ZD721 B-3
ZD722 B-3
ZD723 B-7
ZD724 C-7
ZD725 B-8
ZD726 C-8
ZD727 B-10
ZD728 B-10
ZD729 B-7
ZD730 B-7
ZD731 B-8
ZD732 B-9
ZD733 B-8
ZD734 A-10
ZD735 B-9
ZD736 B-8
ZD737 C-9
ZD738 C-9
ZD739 C-10
ZD740 B-9
ZD741 B-9
ZD742 B-10
ZD743 B-9
ZD744 C-9
ZD745 B-9
ZD746 B-9
ZD747 C-9
ZD749 C-8
IC501 F-4
IC505 F-2
IC701 F-10
IC702 D-5
IC703 G-10
IC704 G-11
IC705 C-4
IC706 H-11
IC707 D-4
IC708 F-9
IC709 D-9
IC710 D-8
IC711 D-8
IC712 D-9
IC801 D-1
IC802 C-2
Q501 E-3
Q502 E-3
Q503 F-4
Q504 E-3
Q701 B-4
Q702 B-3
Q705 C-4
Q709 F-3
