Sony RDR-GX210 Service Manual

6-1
SECTION 6
TROUBLESHOOTING
RDR-GX210

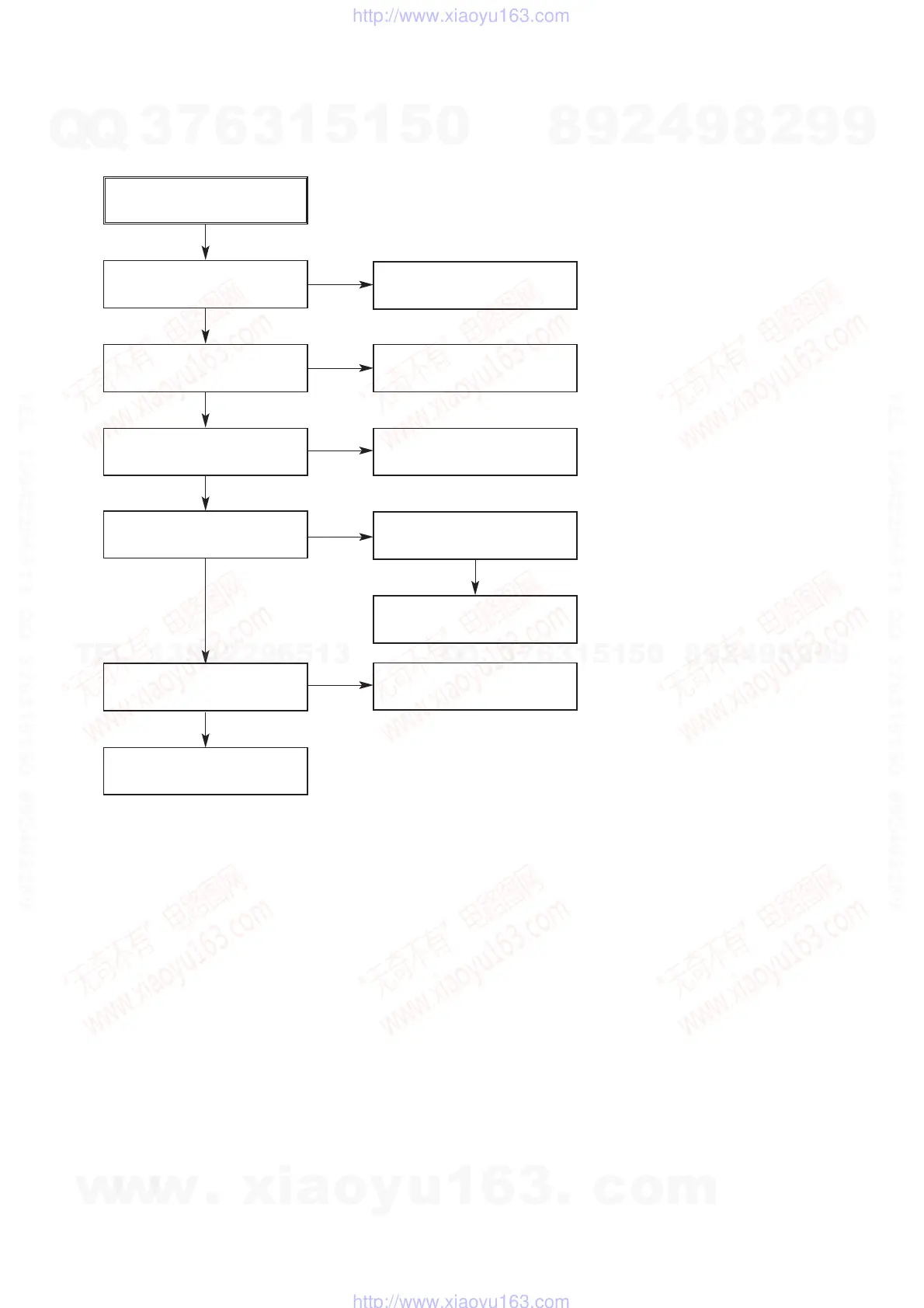

6-1. ELECTRICAL TROUBLESHOOTING GUIDE
1. Power (SMPS) Circuit
Replace the BD101
Replace the F101
(Use the same Fuse)
No 5.3VA
Is the F101 Normal?
Is the TH01 Normal?
Is the BD101 Normal?
NO
NO
NO
NO
NO
YES
YES
Replace the TH01
Is the D102 normal?
Check or Replace the D102
Replace the IC103
NO
YES
Is there about 2.5V at
the IC103 Pin1?
Power in Main PCB
is short
Is Vcc (14V - 20V)
supplied to IC101 Pin3?
YES
YES
YES
