– 10 –
KV-B14PD1
RM-883

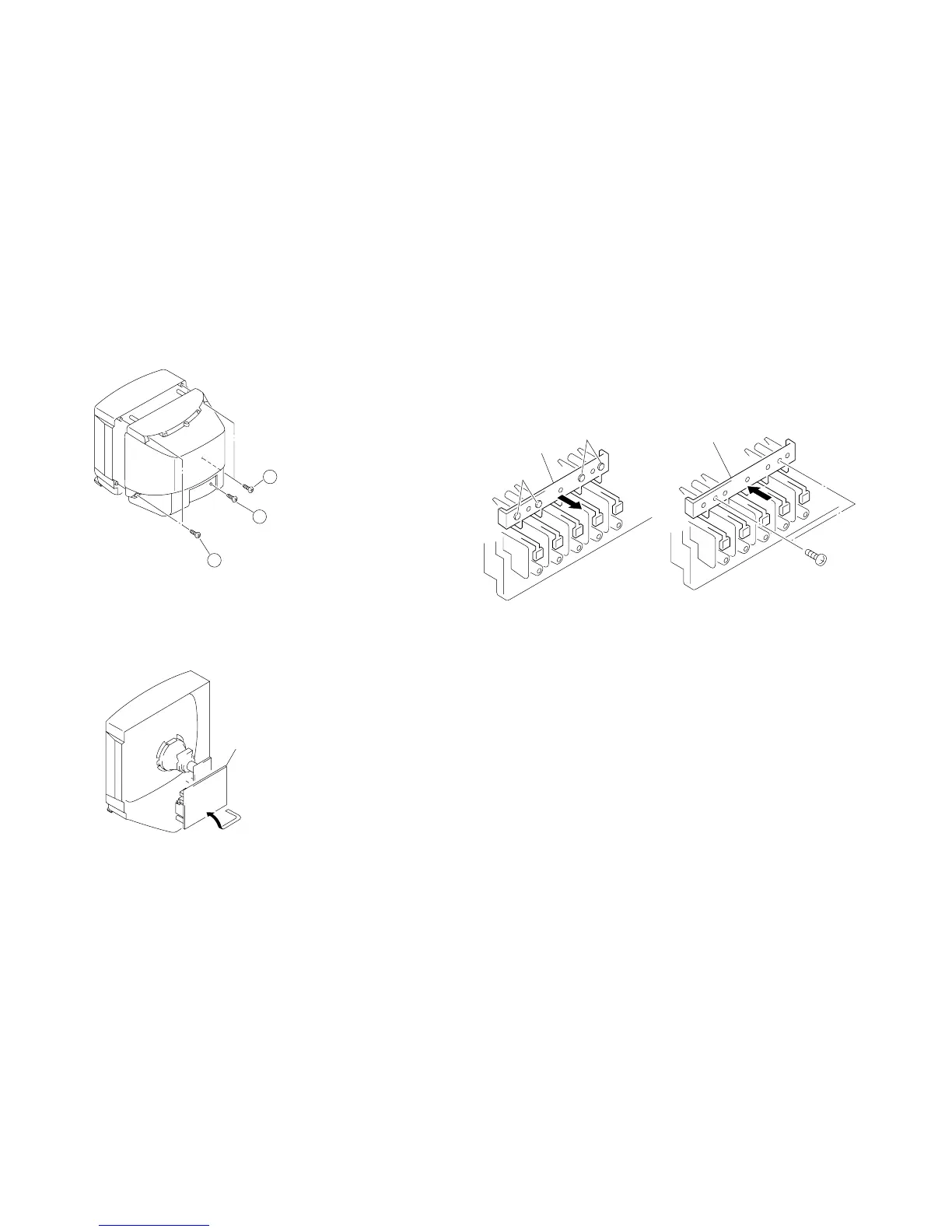

2-1. REAR COVER REMOVAL
SECTION 2
DISASSEMBLY
2
Two screws
(BVTP 4×16)
3
One screw
(BVTP 3×16)
1
Two screws
(BVTP 4×16)
2-2. SERVICE POSITION
A board
2-3. REPLACEMENT OF CONTROL BUTTON
For replacement of the Control Button, cut the welded portions from it, exchange with the new
part, and fix it with screws (+BVTP).
2 Two screws
(BVTP3×12)
1 Control button
2 Control button
1 Cut
1 Cut
