Entering service mode
With the unit on standby
↓
DISPLAY
↓
5
↓
VOL (+)
↓
POWER
The operation sequence puts the unit into service mode.
SECTION 5
CIRCUIT ADJUSTMENTS
5-1. ADJUSTMENTS WITH COMMANDER
Service adjustments are made with the RM-883 that comes with
this unit.
[1], [4] Select the adjustment item.
↓
[3], [6] Raise/lower the data value.
↓
[MUTING] Writes.
↓
[0] Executes the writing.
[7], [0] All the data becomes the values in memory.
[8], [0] All user control goes to the standard state.
[5], [0] Service data initialization (Be sure not to use
usually.)
[2], [0] Write 50Hz adjustment data to 60Hz, or
viceversa.

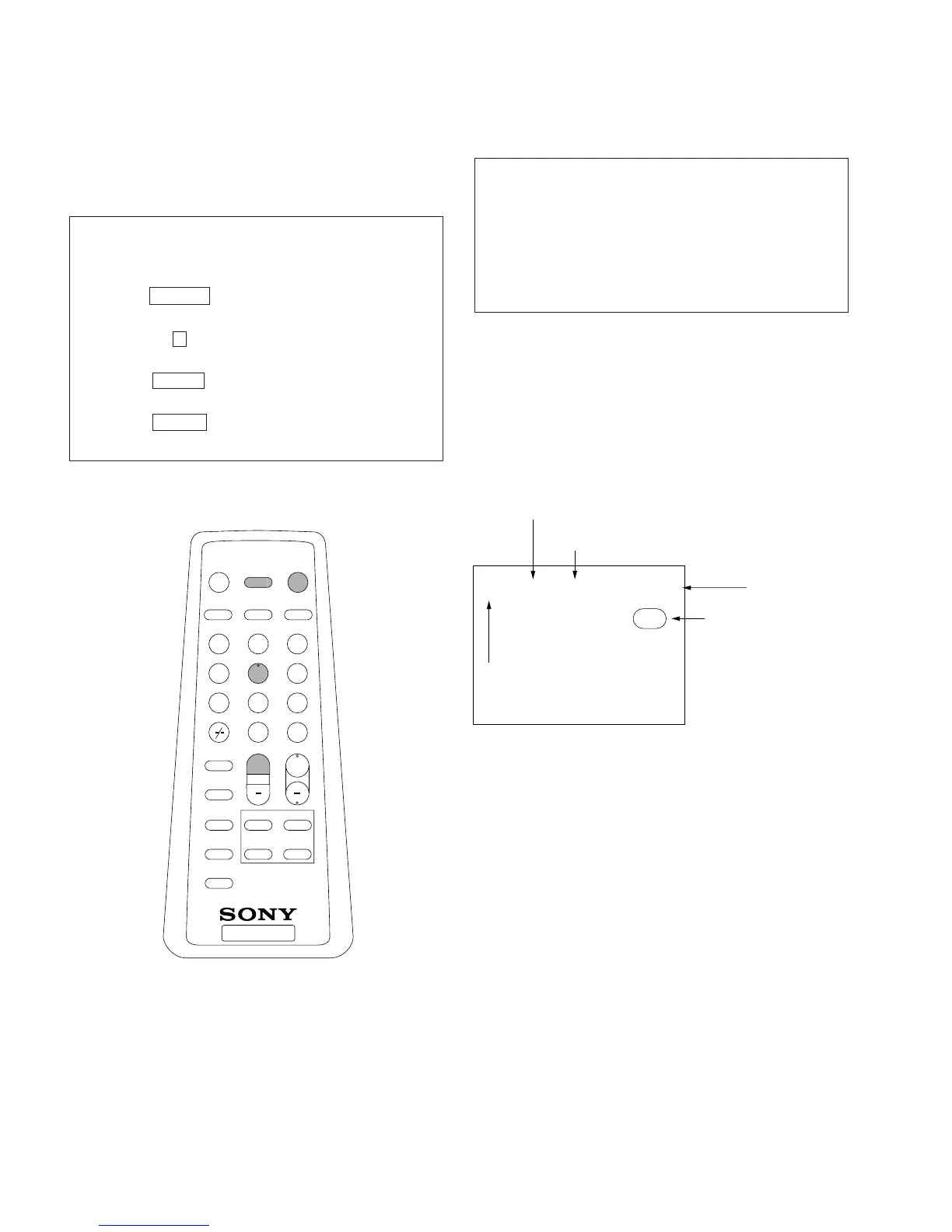

The screen display is :
SERVICE Mode08
Data
RGB
50 Depends on the signals
PAL, SECAM : 50
NTSC : 60
10000000
Adjustment item
00
Item number
SELECT p
PIC MODE p
SOUND
MODE
VOL
PROGR
RM-883 g
POWER
DISP
REVEAL
MUTING
TV
VIDEO
HOLD
TEXT
A/B
ENLARGE
WIDE/
V-ZOOM
WAKE UP
INDEX
SLEEP
TEXT CLR
+
+
12
3
4
6
7
8
9
0
+ p
– p
5
TV
