– 37 –
KV-B14PD1
RM-883
SECTION 7

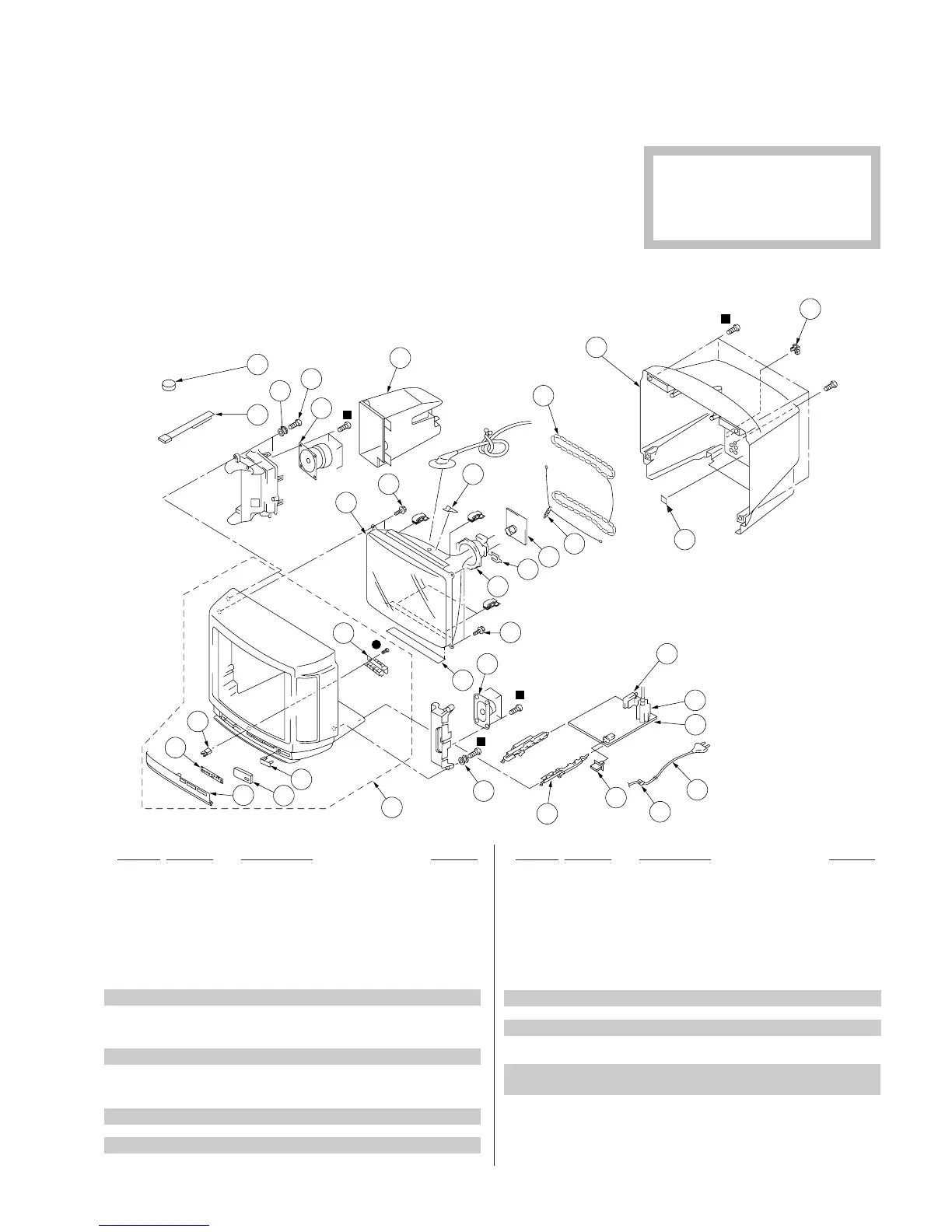

EXPLODED VIEW
NOTE:
• Items with no part number and no
description are not stocked because
they are seldom required for routine
service.
• The construction parts of an assembled
part are indicated with a collation
number in the remark column.
7-1. PICTURE TUBE
r: BVTP3 × 12 7-685-648-79
4: BVTP3 × 16 7-685-650-79
p: BVTP4 × 16 7-685-663-71
• Items marked " ∗ " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
The components identified by
shading and mark ! are critical
for safety.
Replace only with part number
specified.
1 4-051-495-51 DOOR, CONTROL
2 4-047-464-01 CATCHER, PUSH
3 4-051-496-21 PANEL
4 4-051-499-01 GUIDE, LIGHT
5 4-051-500-51 LABEL, CONTROL
6 X-4035-586-1 BEZNET ASSY 1-5, 7
7 4-051-498-01 BUTTON, CONTROL
8 ! 8-735-562-05 PICTURE TUBE (A34JBU70X)
9 4-365-808-21 SCREW (5), TAPPING
10 4-046-600-11 SPACER, DY
11 ! 8-451-418-21 DEFLECTION YOKE (Y14NDA2)
12 1-452-277-00 MAGNET, BMC
13 * A-1331-803-A C BOARD, COMPLETE
14 4-369-318-71 SPRING, TENSION
15 ! 1-426-145-13 COIL, DEGAUSSING
16 ! 4-051-494-01 COVER, REAR
17 4-049-416-11 BLIND, SHEET
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
18 4-049-130-21 CLAMP, CODE
19 4-302-404-03 SCREW (WASHER HEAD) (+P 4X16)
20 1-504-450-11 SPEAKER (8CM)
21 * X-4031-998-1 BOX ASSY, SPEAKER
22 1-504-449-11 SPEAKER (9X5CM)
23 4-051-896-01 RAIL (R) GUIDE
24 4-051-497-03 BUTTON, POWER
25 ! 8-598-323-30 TUNER, VSS BT-AG401
26 ! 1-453-194-11 TRANSFORMER ASSY, FLYBACK
(NX-1723//M3A)
27 * A-1298-586-A A BOARD, COMPLETE
28 ! 4-389-778-31 HOLDER, AC CORD
29 ! 1-574-062-61 CORD, POWER (WITH CONNECTOR) 2.5A/250V
30 1-452-032-00 MAGNET,DISC
31 4-051-736-21 PIECE A(90), CONV. CORRECT
32 4-054-468-01 SHEET, BLOTTING
33 4-374-745-81 CUSHION (A)
12
13
9
10
11
32
2
15
17
14
22
25
26
27
28
24
6
33
5
1
29
23
7
16
8
9
4
3
30
31
21
19
33
20
18
4
