– 14 –
KV-B14PD1
RM-883

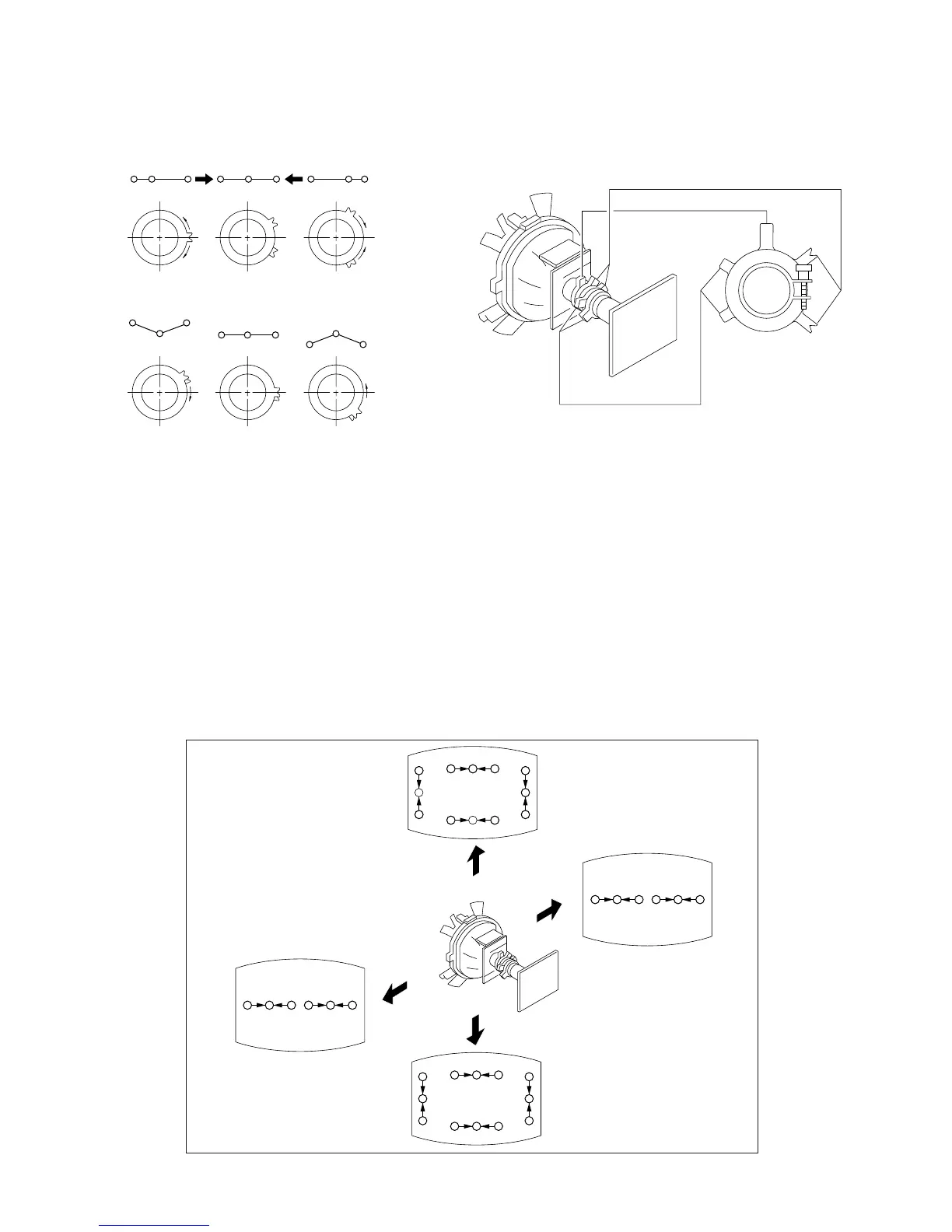

• Operation of BMC (Hexapole) Magnet.
• The respective dot positions resulting from moving each magnet
interact, so be sure to perform adjustment while tracking.
Use the V. STAT Magnet to adjust the red, green and blue dots
so they coincide at the center of screen (by moving the dots in
the horizontal direction).
(2) Dynamic Convergence Adjustment
Preparation :
• Before starting this adjustment, adjust the horizontal static
convergence and the vertical static convergence.
1. Slightly loosen the deflection yoke screws.
2. Remove the deflection yoke spacer.
RG B
RGB R GB
RGB
R
G
B
R
G
B
3. Move the deflection yoke as shown in the figure below and
optimize the convergence.
4. Tighten the deflection yoke screws.
5. Install the deflection yoke spacer.
BMC (Hexapole)
V.STAT
Purity
R
G
B
RGB
RGB
R
G
B
RGBRGB
RGB RGB
R
G
B
R
G
B
R
G
B
RGB
To Next Page
