Sony RM-E700 - 5 Exploded; General; Hardware; Views

NOTE:
@ -—XX, —X mean standardized parts, so
they may have some differences from
the original one.
e Color Indication of Appearance Parts

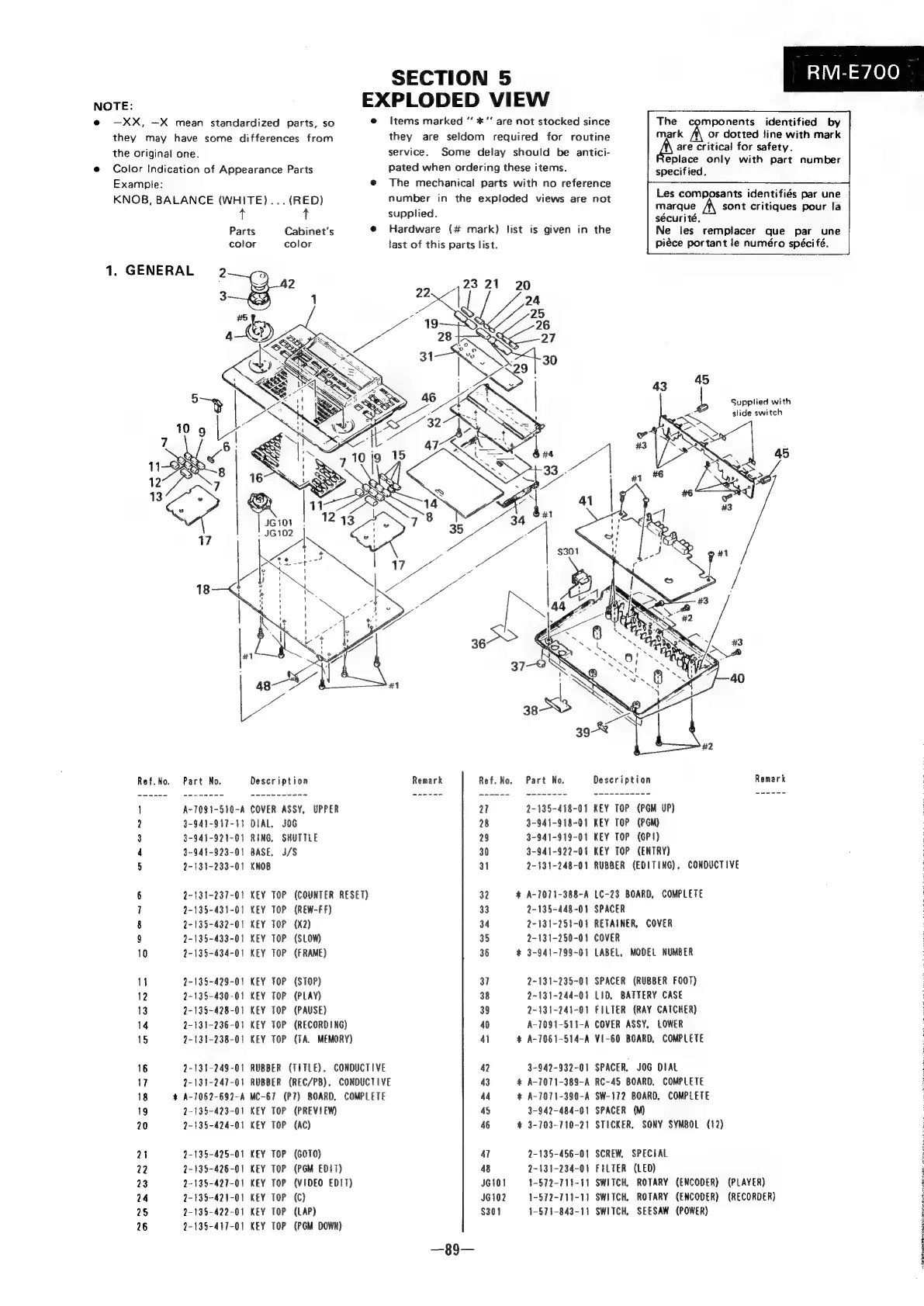

SECTION 5
EXPLODED VIEW
e@ Items marked “ *”' are not stocked since
they are seldom required for routine
service. Some delay should be antici-
Pated when ordering these items.
RM-E700
The Mmponents identified by
mark or dotted line with mark
are critical for safety.
eplace only with part number
specified.
Les composants identifiés par une
marque sont critiques pour la
Example: @ The mechanical parts with no reference
KNOB, BALANCE (WHITE)... (RED) number in the exploded views are not
4: t supplied.
Parts Cabinet's @ Hardware (# mark) list is given in the
color color last of this parts list.
1. GENERAL
23 21
20
25
26
27
24
30
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifé.
Supplied with
slide switch
Ref.No. Part No. Description Remark Ref. No.
| A-7091-540-A COVER ASSY, UPPER 27 2-135-418-01 KEY TOP (PGM UP)
2 3-941-917-11 DIAL. JOG 28 3-941-918-01 KEY TOP (PGM)
3 3-941-921-01 RING, SHUTTLE 29 3-941-919-01 KEY TOP (GP4)
4 3-941-923-01 BASE, J/S 30 3-941-922-01 KEY TOP (ENTRY)
5 2-131-233-01 KNOB 31 2-131-248-01 RUBBER (EDITING), CONDUCTIVE
6 2-131-237-01 KEY TOP (COUNTER RESET) 32 # A-1071-388-A LC-23 BOARD, COMPLETE
7 2-135-431-01 KEY TOP (REW-FF) 33 2-135-448-01 SPACER
8 2-135-432-01 KEY TOP (X2) 34 2-131-251-01 RETAINER, COVER
9 2-135-433-01 KEY TOP (SLOW) 35 2-131-250-01 COVER
10 2-135-434-01 KEY TOP (FRAME) 36 * 3-941-799-01 LABEL, MODEL NUMBER
W 2-135-429-01 KEY TOP (STOP) 37 2-131-235-01 SPACER (RUBBER FOOT)
12 2-135-430-01 KEY TOP (PLAY) 38 2-131-244-01 LID, BATTERY CASE
13 2-135-428-01 KEY TOP (PAUSE) 39 2-431-241-01 FILTER (RAY CATCHER)
14 2-131-236-01 KEY TOP (RECORDING) 40 A-1091-511-A COVER ASSY, LOWER
15 2-131-238-01 KEY TOP (TA. MEMORY) 41 # A-7061-514-A VI-60 BOARD, COMPLETE
16 2-131-249-01 RUBBER (TITLE), CONDUCTIVE 42 3-942-932-01 SPACER, JOG DIAL
17 2-131-247-01 RUBBER (REC/PB), CONDUCTIVE 43 * A-7071-389-A RC-45 BOARD. COMPLETE
18 * A-7062-692-A MC-67 (P7) BOARD, COMPLETE 44 * A-7071-390-A SW-172 BOARD, COMPLETE
19 2-135-423-01 KEY TOP (PREVIEW) 45 3-942-484-01 SPACER (M)
20 2-135-424-01 KEY TOP (AC) 46 # 3-703-710-21 STICKER, SONY SYMBOL (12)
21 2-135-425-01 KEY TOP (6070) 47 2-135-456-01 SCREW. SPECIAL
22 2-435-426-01 KEY TOP (PGM EDIT) 48 2-131-234-01 FILTER (LED)
23 2-135-427-01 KEY TOP (VIDEO EDIT) JG101 1-572-714-11 SWITCH, ROTARY (ENCODER) (PLAYER)
24 2-135-421-01 KEY TOP (C) $6102 1-572-711-11 SWITCH, ROTARY (ENCODER) (RECORDER)
25 2-135-422-01 KEY TOP (LAP) $301 1-571-843-11 SWITCH, SEESAW (POWER)
26 2-135-417-01 KEY TOP (PGM DOWN)
|
4
