Sony RMT-D240A - 8-1 EXPLODED VIEWS

8-2

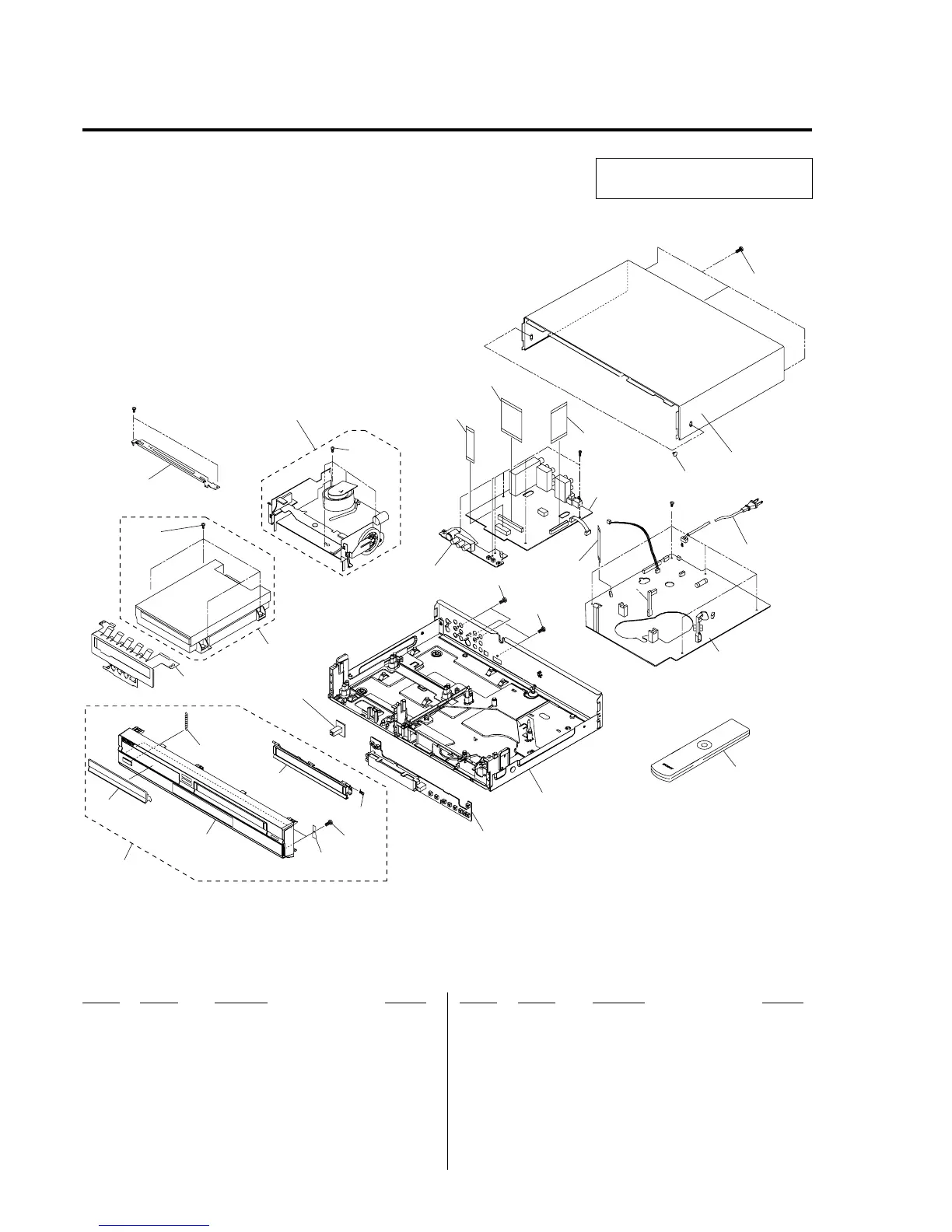

8-1-1 Cabinet Assembly
8-1 EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
2 9-885-101-19 ASSY DECK
3 9-885-111-30 DOOR TRAY
7 9-885-069-88 SCREW-TAPTITE ZPC (WHT)
8 9-885-069-84 SCREW-TAPTITE BLK SWCH101
9 9-885-102-43 CABLE-FLAT;30V, 80C, 360MM, 40P
12 9-885-084-32 SCREW-TAPTITE
A001 9-885-112-11 REMOCON ASSY; RDR-VX555
C001 9-885-111-28 ASSY, CABINET FRONT
C003 9-885-111-29 DOOR CASSETTE
C012 9-885-037-13 SPRING ETC MASK
C015 9-885-111-27 CABINET TOP
CN01B 9-885-112-93 CABLE-FLAT; 80MM, 30P, 1MM
* CNJ02B 9-885-112-94 CABLE-FLAT; 200MM, 14P, 1.25MM
H001 9-885-111-31 ASSY LOADER; TS-P632A
P022 9-885-111-36 ASSY PWB MAIN DVD
0 P025 1-824-674-11 POWER CORD EP2 SPT-2
W001 9-885-079-18 SCREW-TAPTITE
W202 9-885-069-85 SCREW-TAPTITE ZPC (YEL) SWR
W252 3-075-262-01 SCREW BH 4X12
C015
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
W202
C003
C012
W001
W001
W001
CNJ02B
CN01B
P025
A001
P022
W252
W202
H001
not
supplied
9
8
3
7
12
C001
2
( )
Except for Assy Cylinder,
H/Cleaner lever Assy
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
